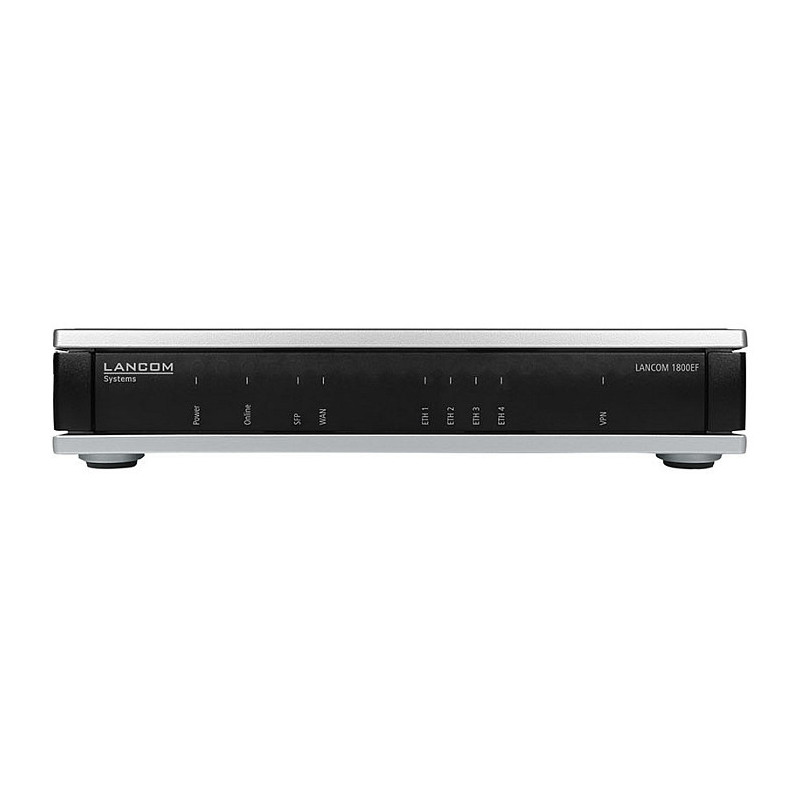

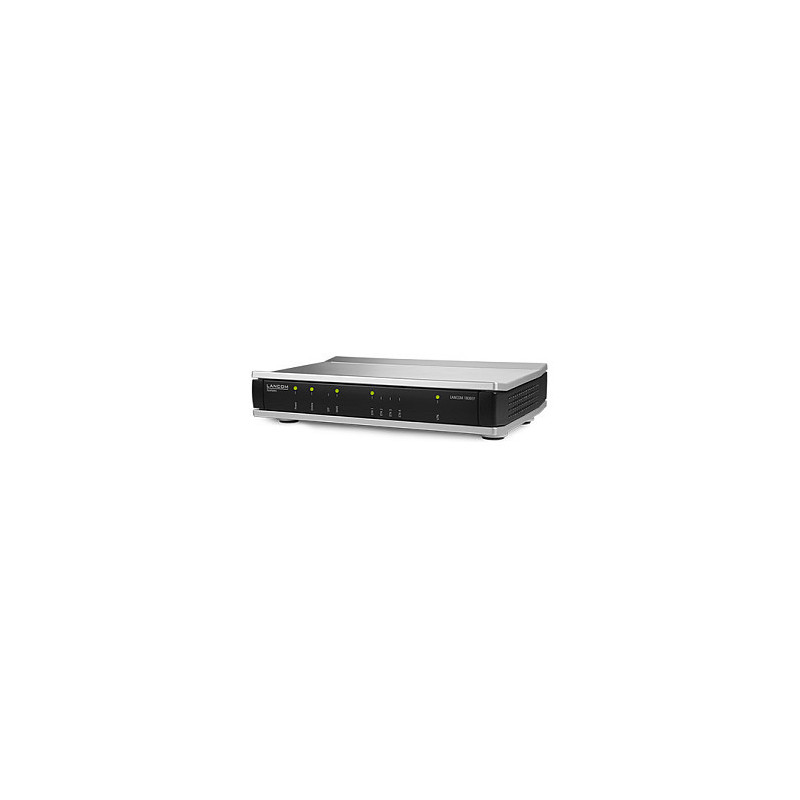

LANCOM 1800EF (EU) gateway / controller

LANCOM 1800EF (EU). Product colour: Black, Silver, Cable lock slot type: Kensington, Number of fans: 1 fan(s). Routing protocols: BGP4, LISP, OSPFv2, RIP-2, VRRP. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.1Q, IEEE 802.3az, Cabling technology: 10/100/1000Base-T(X). Security algorithms: 3DES, 1024-bit RSA, 2048-bit RSA, 4096-bit RSA, AES, FIPS 140, MD5, SHA-1, SHA-256, SHA-384, SHA-512, Authentication method: PAP, CHAP, MS-CHAP, MS-CHAPv2. WAN connection: Ethernet (RJ-45), Serial interface type: USB C

Site networking via fiber optics and Ethernet
Best connectivity for your small to medium-sized business: With an integrated SFP port, this SD-WAN gateway takes advantage of the performance of modern fiber-optic lines. The greatest possible versatility with regard to the Internet lines available at the site is ensured via the Gigabit Ethernet WAN port. With award-winning LANCOM IPSec VPN and SD-WAN, 5 (optionally 25) sites and mobile employees are securely interconnected.

Highlights

High-speed Internet via fiber optics or Gigabit Ethernet
The high-performance VPN router LANCOM 1800EF enables direct connection to a fiber-optic line (FTTH) via its SFP port using a separately available SFP module (GPON / AON). It also offers maximum flexibility via Gigabit Ethernet for connection to external modems. It is therefore suitable for all fields of application and industries and forms the basis for reliable, high-performance networking.

LANCOM SD-WAN - Next-level networking
With LANCOM SD-WAN you can manage and monitor your entire corporate network centrally, cost-effectively, quickly, and stress-free! In combination with the LANCOM Management Cloud, the SD-WAN gateway gives you all the options for an automated setup of secure VPN connections (Auto-VPN) between sites, including network virtualization. Highlight features such as High Scalability VPN (HSVPN) and Advanced Mesh VPN offer you a significant plus in scalability and efficiency for a large number of branches and applications. Furthermore, if multiple WAN connections are defined, they are automatically operated in active/active mode (load balancing), thereby increasing the available total bandwidth. With Dynamic Path Selection and Dynamic Traffic Steering, applications are also dynamically routed via the best connection at any given time.

More advantages

Secure communication via VPN
With virtual private networks (VPN), you use the public medium of the Internet as a communication path and secure the connection in such a way that the communication still remains completely inaccessible to external parties. This SD-WAN gateway offers you five integrated IPSec VPN channels for secure encryption, so that the protection of internal company data is always guaranteed when connecting mobile employees, home offices, or branch offices. With the LANCOM VPN Option, you can also upgrade the device to up to 25 VPN channels, so that the infrastructure can easily grow with your needs without additional hardware.

Advanced Routing & Forwarding
The LANCOM 1800EF provides up to 16 securely isolated and separately routed IP contexts. This is an elegant way of routing all IP applications via a central router and securely separating the various communication channels.

Stateful Inspection Firewall
Equipped with a stateful inspection firewall, the LANCOM 1800EF protects the entire network. With functions such as intrusion prevention and denial of service protection, this device ensures optimum protection so that all data in the network is safe.

Maximum future-proofing and digital sovereignty
As an established German manufacturer of IT network solutions, LANCOM stands for reliability and know-how. Software and hardware development as well as production take place primarily in Germany, as does the hosting of the network management. Special attention is given to providing trusted solutions with outstanding security features. Another important security characteristic of the products is that they are free from backdoors, as awarded by the German Federal Ministry of Economy with the quality seal "IT Security made in Germany". All devices are always equipped with with hardware that is dimensioned for the future. Even across product generations, updates to the LANCOM operating system family are available several times a year, free of charge. his guarantees a long service life while staying technically up to date, which represents a true protection of your investment. In addition, LANCOM infrastructures are easily scalable thanks to maximum compatibility.

Design

Product colour: Black, Silver
Cable lock slot type: Kensington
Number of fans: 1 fan(s)

Protocols

Routing protocols: BGP4, LISP, OSPFv2, RIP-2, VRRP
Feature: DMZ support

Network

Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.3az
Feature: Load balancing
Cabling technology: 10/100/1000Base-T(X)
Feature: Dynamic DNS (DDNS)
PPTP/L2TP VPN tunnels (max): 5

Security

Feature: Access Control List (ACL)
Security algorithms: 3DES, 1024-bit RSA, 2048-bit RSA, 4096-bit RSA, AES, FIPS 140, MD5, SHA-1, SHA-256, SHA-384, SHA-512
Firewall security: Yes
Authentication method: PAP, CHAP, MS-CHAP, MS-CHAPv2
Feature: VLAN support
Feature: Network address translation (NAT)
Number of VLANs: 4096
Feature: Password protection

Ports & interfaces

USB 2.0 ports quantity: 1
Ethernet LAN (RJ-45) ports: 4
WAN connection: Ethernet (RJ-45)
Fixed SFP ports quantity: 1
Serial interface type: USB C
Feature: DC-in jack

Management features

Feature: IGMP snooping
Multicast Listener Discovery (MLD) snooping: Y
Feature: DHCPv6 snooping
Feature: Quality of Service (QoS) support
Feature: Reset button
Feature: Syslog
Feature: Multicast support

Power

Power consumption (max): 15 W
Power consumption (idle): 6 W
Heat dissipation: 60 BTU/h

Weight & dimensions

Width: 210 mm
Depth: 140 mm
Height: 45 mm
Weight: 450 g

Packaging data

Package width: 385 mm
Package depth: 288 mm
Package height: 94 mm
Package weight: 1.44 kg

Packaging content

Feature: AC adapter included
Feature: Quick start guide
Cables included: LAN (RJ-45)

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 95%

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RCM

Logistics data

Country of origin: Germany
Customs product code (TARIC): 85176200
