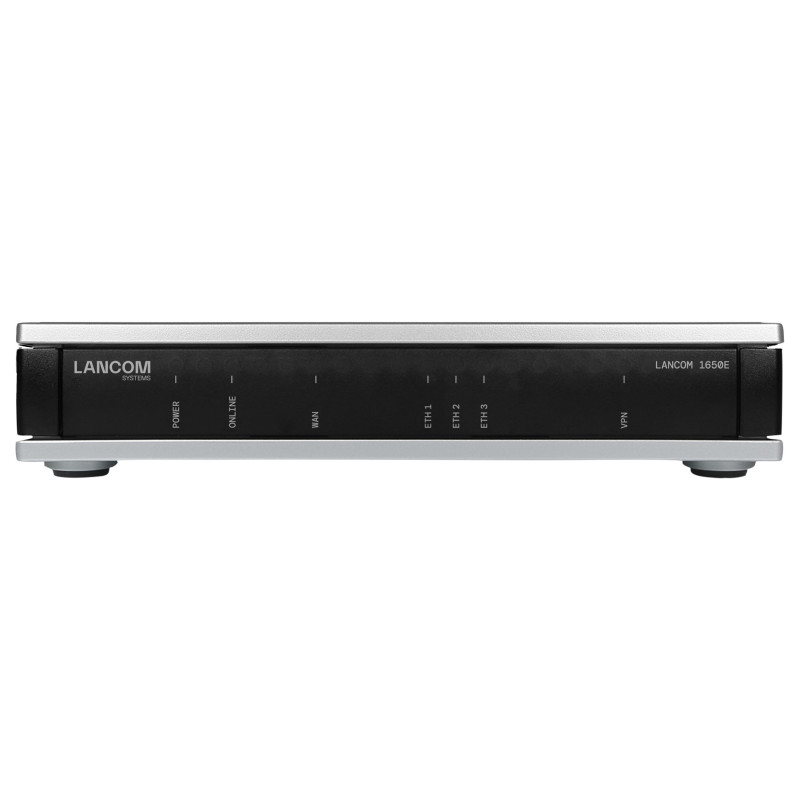

LANCOM 1650E wired router

LANCOM 1650E. Networking standards: IEEE 802.1Q, IEEE 802.3az, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Routing protocols: RIP-2, VoIP protocols: SIP ALG, Supported protocols: DNS, HTTP, HTTPS, ICMP, NTP/SNTP, NetBIOS, PPPoE (server), RADIUS, RADSEC (secure RADIUS), RTP,.... Authentication method: PAP, CHAP, MS-CHAP, MS-CHAPv2. Cables included: LAN (RJ-45). Product colour: Black, Grey, Country of origin: Germany

Flexible Internet access with Gigabit Ethernet
Small and medium-sized businesses often need secure and reliable access to the Internet as well as allowing mobile employees or branch offices to connect to the company headquarters. With the LANCOM 1650E and excellent LANCOM IPSec VPN, you can easily connect your sites. The connection to any external DSL, cable, and fiber-optic modems offers the maximum flexibility with regard to the Internet lines available at the site. The SD-WAN functions of the branch router in combination with the LANCOM Management Cloud (LMC) not only simplify your network management, but also accelerate and automate the administration, monitoring, and rollout of your network components.

WAN connectivity with Gigabit Ethernet
The LANCOM 1650E enables flexible connection of external modems via Gigabit Ethernet, offering maximum independence with regard to the Internet connections available at the site.

LANCOM SD-WAN - Next-level networking
With LANCOM SD-WAN you can manage and monitor your entire corporate network centrally, cost-effectively, quickly, and stress-free! In combination with the LANCOM Management Cloud, the SD-WAN gateway gives you all the options for an automated setup of secure VPN connections (Auto-VPN) between sites, including network virtualization. Highlight features such as High Scalability VPN (HSVPN) and Advanced Mesh VPN offer you a significant plus in scalability and efficiency for a large number of branches and applications. Furthermore, if multiple WAN connections are defined, they are automatically operated in active/active mode (load balancing), thereby increasing the available total bandwidth. With Dynamic Path Selection and Dynamic Traffic Steering, applications are also dynamically routed via the best connection at any given time.

Security with ARF, VLAN, and inspection firewall
Equipped with a stateful inspection firewall, the LANCOM SD-WAN gateway protects the entire network with functions such as intrusion prevention and denial of service protection. Logical network segmentation allows you to define individual security settings and access rights according to the requirements of the user groups, and to divide your infrastructures and applications into different areas. This network segmentation using ARF (Advanced Routing and Forwarding) and VLAN (Virtual Local Area Network) ensures that your enterprise network as a whole remains protected, even if a network segment is compromised.

Secure communication via VPN
With virtual private networks (VPN), you use the public medium of the Internet as a communication path and secure the connection in such a way that the communication still remains completely inaccessible to external parties. This SD-WAN gateway offers you 3 integrated IPSec VPN channels for secure encryption, so that the protection of internal company data is always guaranteed when connecting mobile employees, home offices, or branch offices.

Maximum future-proofing and digital sovereignty
As an established German manufacturer of IT network solutions, LANCOM stands for reliability and know-how. Software and hardware development as well as production take place primarily in Germany, as does the hosting of the network management. Special attention is given to providing trusted solutions with outstanding security features. Another important security characteristic of the products is that they are free from backdoors, as awarded by the German Federal Ministry of Economy with the quality seal "IT Security made in Germany". All devices are always equipped with with hardware that is dimensioned for the future. Even across product generations, updates to the LANCOM operating system family are available several times a year, free of charge. his guarantees a long service life while staying technically up to date, which represents a true protection of your investment. In addition, LANCOM infrastructures are easily scalable thanks to maximum compatibility.

Bearer of the IT Security Label (BSI)

The LANCOM 1650E meets the strict security requirements of the German Federal Office for Information Security (BSI) and bears the IT Security Label.

The IT Security Label gives end users the opportunity to inform themselves about security functionalities assured by manufacturers for networked, Internet-enabled products and services.

LANCOM Trusted Access - Cloud-managed Remote Access
What does modern secure remote access look like? And how can the Zero Trust principle be integrated into your own system infrastructure? LANCOM Trusted Access (LTA) is the flexible, highly scalable solution for securely implementing modern hybrid working from anywhere and at any time and controlling it centrally and securely via cloud management.

You can find more information about LANCOM Trusted Access on the product page, the explanatory video, or in the onboarding program for sales and technicians.

WAN connection

Feature: Ethernet WAN
Feature: DSL WAN

Network

Networking standards: IEEE 802.1Q, IEEE 802.3az
Ethernet interface type: Gigabit Ethernet
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: VLAN support
Feature: Multicast support
Feature: Traffic control
Feature: Port forwarding
Feature: Policy-based routing

DSL features

Feature: ADSL
Feature: ADSL2
Feature: ADSL2+
Feature: VDSL

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Priority mapping
Feature: Traffic shaping
Feature: Reset button
Feature: Firmware upgradeable

Ports & interfaces

Ethernet LAN (RJ-45) ports: 3
WAN ports quantity: 1
USB ports quantity: 1
USB version: 2.0
Serial ports quantity: 1
Feature: DC-in jack

Protocols

Feature: DMZ support
Routing protocols: RIP-2
VoIP protocols: SIP ALG
Feature: DHCP client
Feature: DHCP server

Security

Feature: Firewall
Authentication method: PAP, CHAP, MS-CHAP, MS-CHAPv2
Feature: MAC address filtering
Feature: IP address filtering
Feature: ARP attack prevention
Feature: ICMP attack prevention
Feature: Access Control List (ACL)
Feature: Network address translation (NAT)
VPN tunnels quantity: 3

Packaging content

Feature: AC adapter included
Cables included: LAN (RJ-45)
Feature: Quick start guide

Design

Product colour: Black, Grey
Country of origin: Germany

Power

Power consumption (max): 15 W
AC input voltage: 230 V

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 210 mm
Depth: 140 mm
Height: 45 mm

Packaging data

Package width: 210 mm
Package depth: 320 mm
Package height: 110 mm
Package weight: 1.53 kg

Logistics data

Customs product code (TARIC): 85176200
