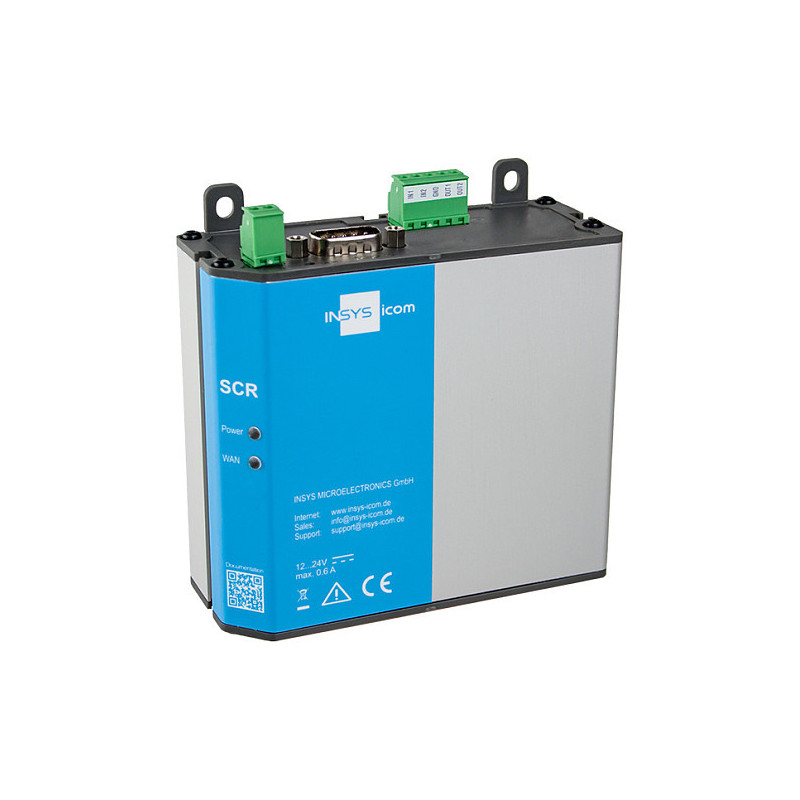

Insys Microelectronics SCR-E300 gateway / controller

Insys Microelectronics icom SCR-E300, LAN router. Product colour: Grey, Mounting type: DIN-rail/Wall mounting, LED indicators: Power, Signal strength, WAN. Antenna connector type: SMA. Routing protocols: BGP, OSPF, RIP, RIP-2, RIPng. Ethernet LAN data rates: 10,100 Mbit/s. Power consumption (typical): 2 W, Input voltage: 12 - 24 V
The routers of the SCR series are IoT gateways of the special kind. They provide latest technology in a compact, fl exible mountable housing for a very attractive price. The SCR series is available in LTE and LAN versions, both optionally as I/O variant. Users can connect both, IP-based and serial devices, to this Smart Device locally. This allows to transform elder existing plants in modern IT environments with a retrofi t. The two mounting directions make an SCR suitable for both, a switch cabinet in industrial environments and fl at building connection boxes. Besides the INSYS operating system icom OS, the icom SmartBox is also on board, an integrated Linux environment that allows to execute scripts and programs directly on the router based on so-called containers. Therefore, an SCR router can not only be used for secure remote maintenance and control, but also for capturing and process-ing application data within the scope of edge computing. This also allows to monitor the conditions and values of connected devices and realise reporting or benchmarking across different plants thanks to plug play connection to cloud services.
The programmable SCR series features versatile devices for IoT applications, retrofitting, critical infrastructures (KRITIS) and remote services. The VPN routers for WAN communication are available in 4G and LAN versions - both optionally as I/O variants. IP and serial devices as well as data points can be locally connected via Modbus TCP/RTU.
Compact design
You receive all essential functions in a compact, flat and flexibly mountable housing.
Existing systems and new project planning
You can also transfer existing systems into modern IoT environments using a serial interface.
Sleep mode
No power supply on site? The energy saving mode also enables solar or battery powered applications.
Gateway functionality
Flexible hardware, scalable software and premium support guarantee optimal long-term operating conditions.

Design

Product colour: Grey
Mounting type: DIN-rail/Wall mounting
LED indicators: Power, Signal strength, WAN
International Protection (IP) code: IP40

Features

Antenna connector type: SMA
Plug and Play: Yes

Performance

Control display unit: No

Data transmission

Static route: Yes

Protocols

Routing protocols: BGP, OSPF, RIP, RIP-2, RIPng
DHCP server: Yes
DHCP client: Yes

Network

Ethernet LAN data rates: 10,100 Mbit/s
Full duplex: Yes

Ports interfaces

RS-232 ports: 1
Ethernet LAN (RJ-45) ports: 2
Digital output ports quantity: 2

Power

Power consumption (typical): 2 W
Input voltage: 12 - 24 V

Weight dimensions

Width: 105 mm
Depth: 42 mm
Height: 90 mm
Weight: 283 g

Operational conditions

Operating temperature (T-T): -30 - 75 °C
Operating relative humidity (H-H): 0 - 95%

Certificates

Safety: IEC/EN 62368-1
Certification: CE, FCC Part 15 Class B, IC

Logistics data

Harmonized System (HS) code: 85176990
