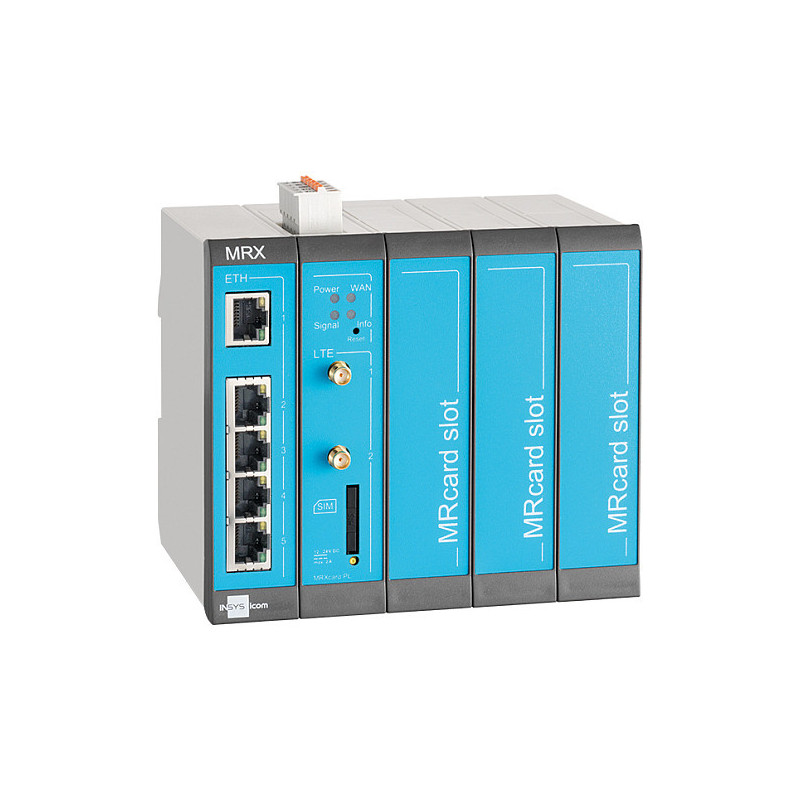

Insys Microelectronics MRX5 LTE wired router

Insys Microelectronics icom MRX5 LTE, mod. 4G router. Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s. Mobile network generation: 4G, 2G standards: Edge, GPRS, 3G standards: HSPA+, UMTS. Routing protocols: BGP, OSPF, RIP, RIP-2, RIPng. Security algorithms: IPSec, SNMP, SSH, Authentication method: RADIUS. Certification: CE, EN 55032 Class B; EN 61000-6-2, EN 55024, IEC/EN 60950, 62368, EN 61131-2 and EN 60068-2-6,...
The smart MRX routers combine KRITIS (critical applications) level IT security, state-of-the-art technology, high computing power, sophisticated administration and programmability. The basic variants DSL, 4G and LAN can be supplemented as required with additional plug-in cards (MRcards) - including customer-specific MRcards. Two digital inputs are already included in all variants. A variety of redundancies such as the parallel operation of WAN interfaces and VPNs create highly available communication.
Flexibility of design
Start with the optimal hardware combination for each individual application.
Extension options
Additional interfaces required? Supplement your application with additional MRcards.
Future-proof
New technologies available? Future MRcards enable fast and cost-efficient updates, e. g. to 5G.
Gateway functionality
Flexible hardware, scalable software and premium support guarantee optimal long-term operating conditions.

WAN connection

Ethernet WAN: Yes
SIM card slot: Yes

Network

Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Full duplex: Yes
VLAN support: Yes
Port forwarding: Yes
Auto MDI/MDI-X: Yes

Mobile network

Mobile network generation: 4G
2G standards: Edge, GPRS
3G standards: HSPA+, UMTS
4G standard: LTE
GSM bands supported: 900,1800 MHz
UMTS bands supported: 900,1800,2100 MHz
4G bands supported: 800,900,1800,2100,2600 MHz
Short Message Service (SMS): Yes

Management features

Web-based management: Yes

Ports interfaces

Ethernet LAN (RJ-45) ports: 5

Protocols

Routing protocols: BGP, OSPF, RIP, RIP-2, RIPng
DHCP client: Yes
DHCP server: Yes

Security

Security algorithms: IPSec, SNMP, SSH
Firewall: Yes
Authentication method: RADIUS
IP address filtering: Yes

Features

Certification: CE, EN 55032 Class B; EN 61000-6-2, EN 55024, IEC/EN 60950, 62368, EN 61131-2 and EN 60068-2-6, EN 60068-2-27; Temperature tests as per EN 60068-2-1, EN 60068-2-2, EN 60068-2-14, EN 60068-30

Design

Product colour: Blue, Grey
LED indicators: DSL, Power, Signal strength, WAN

Antenna

Antenna type: External
Antenna connector type: SMA
Antennas quantity: 2
Detachable antenna(s): Yes

Power

Power consumption (typical): 2.5 W
Power source type: DC
Output voltage: 12-24 V

Operational conditions

Operating temperature (T-T): 30 - 75 °C
Operating relative humidity (H-H): 0 - 95%

Weight dimensions

Width: 136 mm
Depth: 88 mm
Height: 117 mm
Weight: 409 g

Logistics data

Harmonized System (HS) code: 85176990
