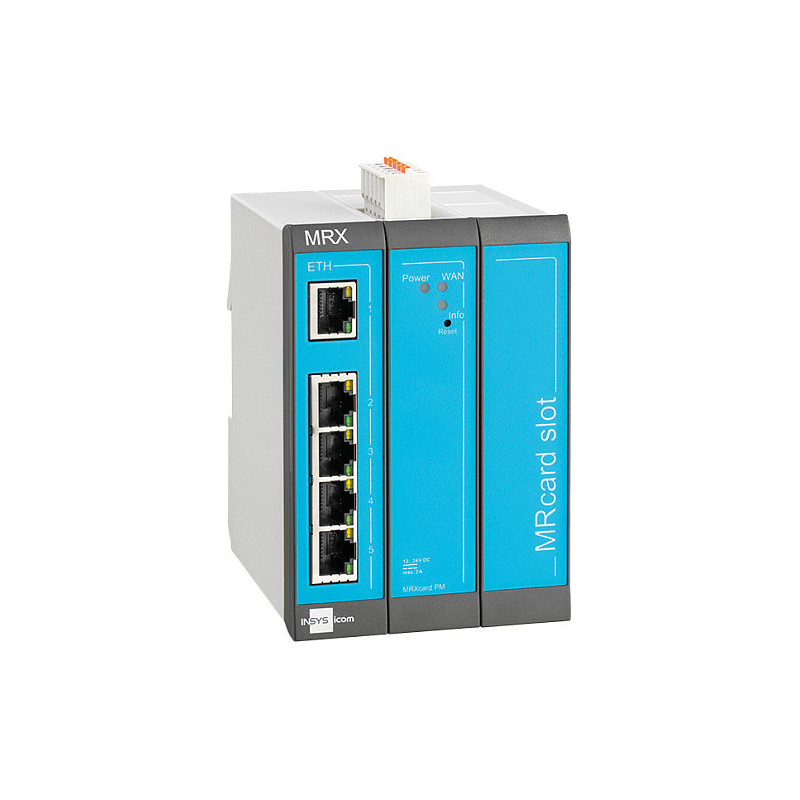

Insys Microelectronics MRX3 LAN wired router

Insys Microelectronics icom MRX3 LAN, mod. LAN router. Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s. Routing protocols: BGP, OSPF, RIP, RIP-2. Security algorithms: IPSec, SNMP, SSH, Authentication method: RADIUS. Certification: CE, EN 55032 Class B; EN 61000-6-2, EN 55024, IEC/EN 60950, 62368, EN 61131-2 and EN 60068-2-6,.... Product colour: Blue, Grey
MRX - the flexible power
The smart MRX routers combine KRITIS (critical applications) level IT security, state-of-the-art technology, high computing power, sophisticated administration and programmability.
Freedom of design
Changing requirements require flexible solutions. The modularity of the MRX router series allows you to assemble a custom router for each individual application.
Extension options
The basic variants DSL, LTE and LAN are each available in two housing widths and have two digital inputs. Modular plug-in cards (MRcards) with additional interfaces can be added as required. In addition to the standard models, customer-specific MRcards can also be developed.
Future-proof
With the plug-in cards for the MRX router you will also be on the safe side in the future, because we are constantly expanding our range. This means that in the case of technology upgrades, e.g. to 5G, you can expand your router efficiently and at low cost.

WAN connection

Ethernet WAN: Yes

Network

Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Full duplex: Yes
VLAN support: Yes
Port forwarding: Yes
Auto MDI/MDI-X: Yes

Mobile network

Mobile network generation: Not supported
Short Message Service (SMS): Yes

Management features

Web-based management: Yes

Ports interfaces

Ethernet LAN (RJ-45) ports: 5

Protocols

Routing protocols: BGP, OSPF, RIP, RIP-2
DHCP client: Yes
DHCP server: Yes

Security

Security algorithms: IPSec, SNMP, SSH
Firewall: Yes
Authentication method: RADIUS
IP address filtering: Yes

Features

Certification: CE, EN 55032 Class B; EN 61000-6-2, EN 55024, IEC/EN 60950, 62368, EN 61131-2 and EN 60068-2-6, EN 60068-2-27; Temperature tests as per EN 60068-2-1, EN 60068-2-2, EN 60068-2-14, EN 60068-30, FCC Part 15 Class B, IC

Design

Product colour: Blue, Grey
LED indicators: Yes

Power

Power consumption (typical): 3.5 W
Power source type: DC
Output voltage: 12-24 V

Operational conditions

Operating temperature (T-T): -30 - 75 °C
Operating relative humidity (H-H): 0 - 95%

Weight dimensions

Width: 82 mm
Depth: 88 mm
Height: 117 mm
Weight: 296 g

Logistics data

Harmonized System (HS) code: 85176990
