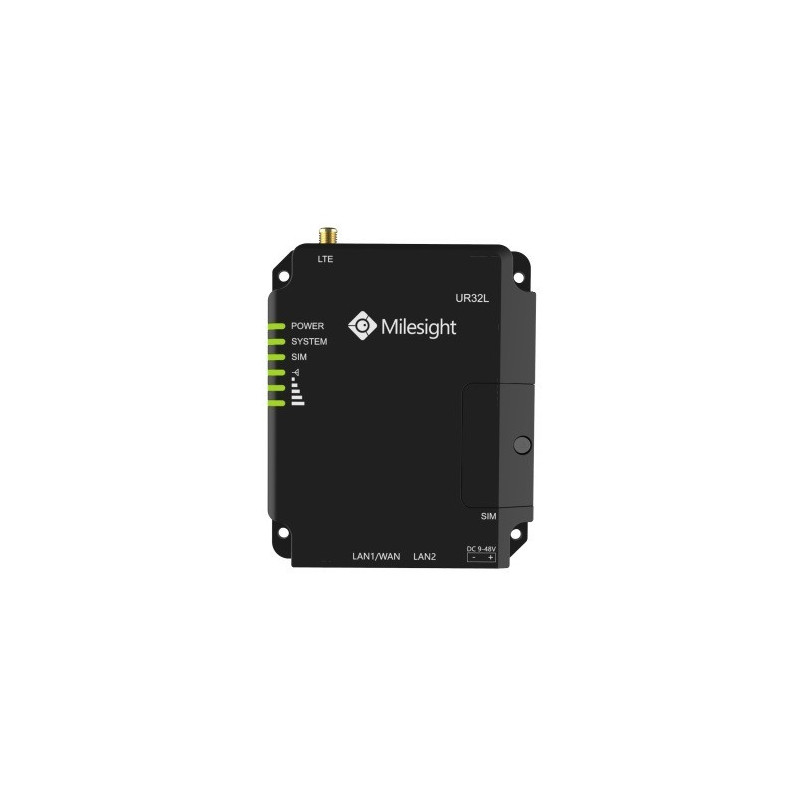

Industrial 4G/LTE router

Industrial 4G/LTE router.
Features:

• The industrial LTE router is designed to transmit data wirelessly over 4G LTE CAT4 / 3G mobile networks.


• NXP industrial-grade processor.


• Has an integrated cellular modem and SIM card function.


• Ultra-low power consumption: from 1.9W in normal mode to max. 2.4W.


• The router supports a wide operating temperature range from -40°C to +70°C. Rugged housing.

Technical data:

• Supply voltage: 9-48V DC.


• Power consumption: 1.9W (normal mode), max. 2.4W.


• Operating temperature: -40~+70 °C.


• Operating humidity: 0-95%RH non-condensing.


• Size: 180x90x26 mm.


• Safety class: IP30.


• Case material: metal.


• Installation: desktop/wall/DIN rail.


• Weight: 271g.

Technical equipment:

• CPU: 528MHz, ARM Cortex-A7.


• RAM: 128Mb DDR3.


• Flash memory: 128 Mb.


• SIM card slot: 1x Mini SIM-2FF.


• Reset button: 1x RST.


• LED indicator: 1x power, 1x system, 1x SIM, 3x signal strength.


• Built-in: watchdog, timer.


• Antenna: 1x50ohm SMA connector.

Software:

• Network protocols: IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2,


• OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN,


• SSH, etc.


• VPN: DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE.


• Protection: Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls,


• DoSDDoS Protection, Filtering (IPDomain), IP Passthrough.


• Management: Web, CLI, SMS, On-demand dial up, SNMP v1/v2/v3, DeviceHub (device hub).

Ethernet:

• Ports: 1x WAN/LAN + 1x LAN.


• Data transfer rate: 10Mbps / 100Mbps (IEEE 802.3).


• Security: WPA/WPA2 authentication, WEP/TKIP/AES encryption.
