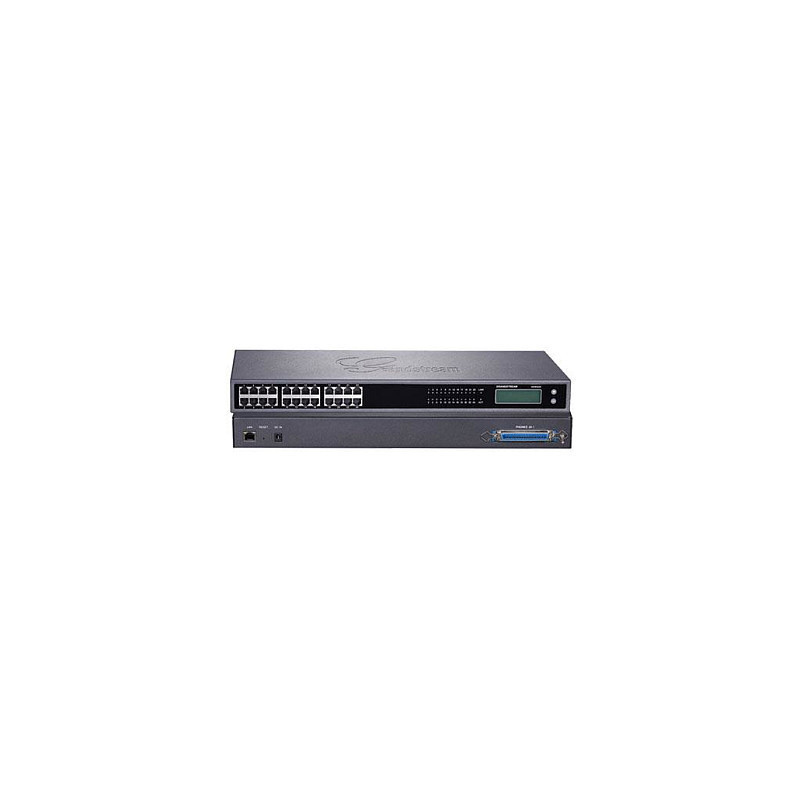

Grandstream Networks GXW4224V2 gateway / controller

Grandstream Networks GXW4224V2. Product colour: Black, LED indicators: Activity, LAN, Link, Power. Voice codecs: G.711, G.722, G.723, G.726-32, G.729, iLBC. Display type: LCD. Management protocols: HTTPS, SSH, Supported network protocols: TCP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS, DHCP, NTP, TFTP, PPPoE, STUN, LLDP, Supported protocols: TFTP, HTTP, HTTPS. Ethernet LAN data rates: 10,100,1000 Mbit/s
The GXW4200 v1 and v2 series allow any businesses to create a cost-effective hybrid IP and analog telephone system that enables them to enjoy the benefits of VoIP communications while preserving investment on existing analog phones, fax machines and legacy PBX systems.
The GXW4216/24/32/48 v1 and v2 are fully compliant with SIP standard and interoperable with various VoIP systems, analog PBX and phones on the market. They feature multiple FXS analog telephone ports, superb voice quality, a suite of telephony functionalities, easy provisioning, flexible dialing plans, advanced security protection and strong performance in handling high volume voice calls. The GXW42XX v1 and v2 series gateways offers businesses a cost-effective hybrid IP and analog telephone system that allows them to enjoy the benefits of VoIP communications.

Design

Product colour: Black
LED indicators: Activity, LAN, Link, Power

Features

Voice codecs: G.711, G.722, G.723, G.726-32, G.729, iLBC

Performance

Control display unit: Yes
Display type: LCD

Protocols

Management protocols: HTTPS, SSH
Supported network protocols: TCP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS, DHCP, NTP, TFTP, PPPoE, STUN, LLDP
Supported protocols: TFTP, HTTP, HTTPS

Network

Ethernet LAN data rates: 10,100,1000 Mbit/s

Security

Security algorithms: 128-bit AES, HTTPS, SIPS, SRTP, TLS

Ports interfaces

I/O ports: 24 x RJ-45, 50-Pin Telco
Ethernet LAN (RJ-45) ports: 1
RJ-11 ports quantity: 24

Management features

Quality of Service (QoS) support: Yes
Syslog: Yes

Power

Input voltage: 100 - 240 V
Input frequency: 50 - 60 Hz
Output voltage: 12 V
Output current: 5 A
Power supply: 60 W

Weight dimensions

Width: 440 mm
Depth: 185 mm
Height: 44 mm
Weight: 2.6 kg

Packaging data

Package weight: 3.65 kg

Packaging content

AC adapter included: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 10 - 90%

Logistics data

Harmonized System (HS) code: 85176990
