EXTRALINK DYNAMITE MESH SET 3 IN 1 AC2100 MU-MIMO HOME WIFISYSTEM

Extralink Dynamite is Mesh WiFi System for home networking, with it's multiple smart units, delivers data speeds up to 2033Mbps and provides seamless floor-to-floor roaming throughout your home. While signals of traditional individual router significantly decrease after crossing two or three walls, this Mesh WiFi System, a distributed wireless network, is interconnected and does not sacrifice signal strength and stability within a much larger area, which is highly-valued. It's a flexible system that can extend with your needs, you can add as to 10 satellites as you need. Each unit covers 1500-2000 sq ft, while the 3-unit kit covers 5000-6000 sq ft, depending on how you place them at your home.

Features: • Free installation, automatic networking, easily fill the whole house with WiFi coverage.

• Extensible to as many as 10 Mesh Satellites.

• Powerful dual-band Mesh WiFi System distributes 100% Internet speed to the edge of your WiFi network at home, without signal degradation when the end device is moving around.

• Mesh WiFi solution is built to connect with each other in a single network configuration. If one Node loses connection, the remaining units will reestablish Internet connection, automatically and seamlessly.

• Mesh WiFi System chooses the fastest path for device connections and keeps your network running as fast as possible.

Complies with IEEE 802.11ac/a/n/g/b standards.

• Simultaneous 5GHz 1733Mbps and 2.4GHz 300Mbps connections, total available bandwidth of 2100Mbps.

• Built-in high-power amplifiers to provide extreme Wi-Fi coverage and penetration.

• Patented omni-directional internal antennas: 4 x 3dBi 5G antennas + 2 x 3dBi 2.4G antennas providing even better wireless performance.

• 3 x 10/100/1000Mbps Auto-Negotiation Gigabit Ethernet ports.

• USB 2.0 Port - share files media with networked devices

• MU-MIMO technology communicates with several devices at once to speed up connections and reduce waiting time.

• TouchLink function can easily set up a separate and secure WiFi network for visitors and guests to use.

• Easy setup assistant with multi-language support provides a quick hassle-free installation process.

Hardware

Ports

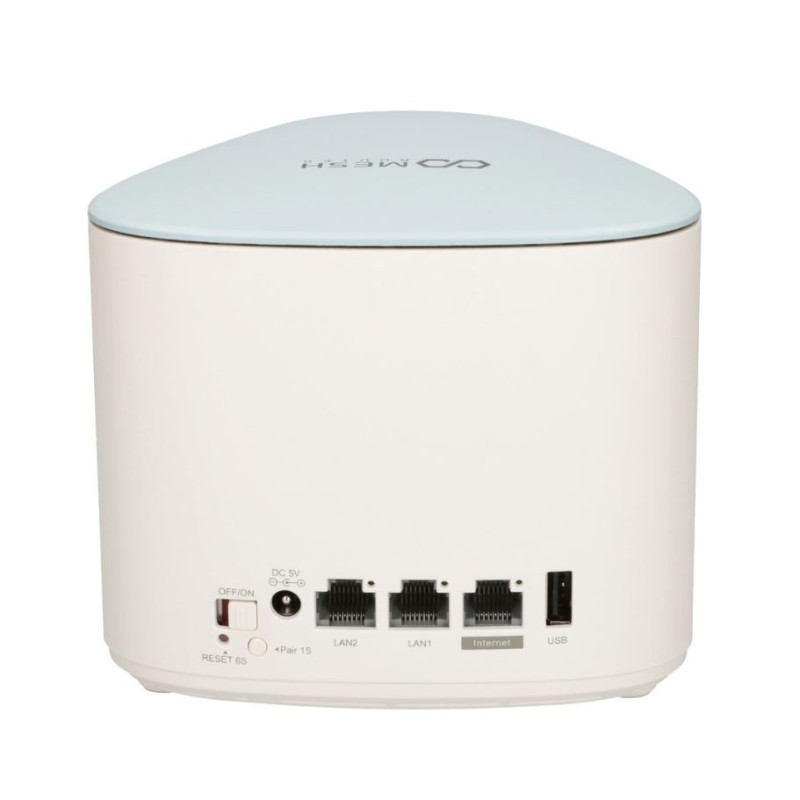

• Router:


  • 1x 10/100/1000Mbps WAN PORT


  • 2x 10/100/1000Mbps LAN PORTS


  • 1xUSB 2.0






• Satellite:

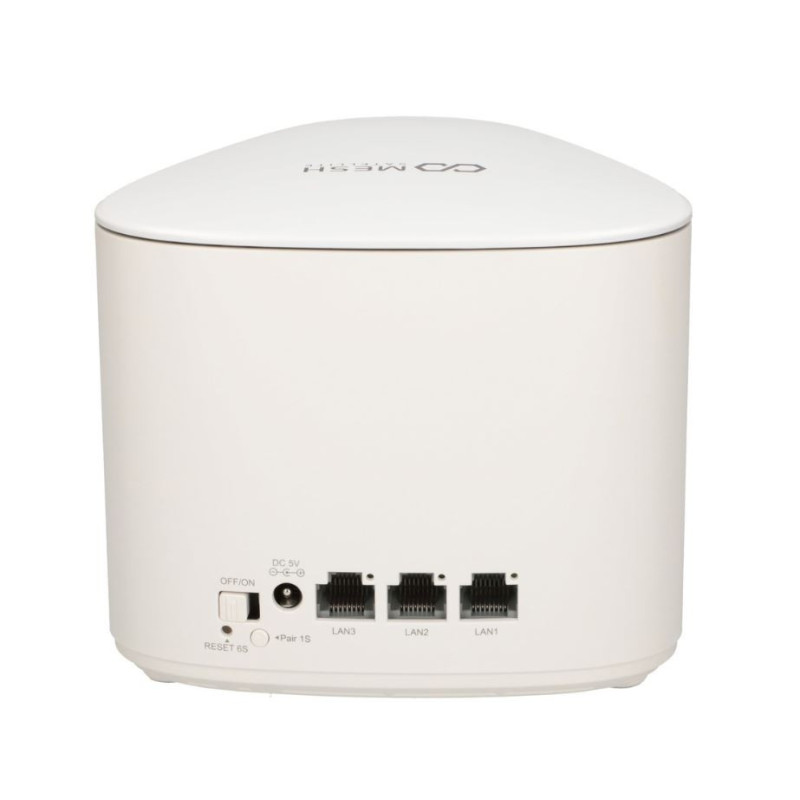

  • 3 x10/100/1000Mbps LAN PORTS





Button: 1 x Power On/Off, 1 x Reset, 1 x Pair Button, 1 x TouchLink

LED: 3 x 1000Mbps LAN/WAN, 1x Logo LED

Chipset: MT7621A+MT7615N+MT7603E

Flash: 128MB

SDRAM: 1GB

Power Supply: DC 5V, 3A

Rated Voltage/Frequency: Input: 100-240V AC 50/60Hz

Wireless

Standard: IEEE 802.11b/g/n/a/ac

Frequency band: 2.4GHz, 5GHz

Transmit Power: 2.4G: 20DBm, 5G: 28DBm Max.

Sensitivity: 802.11b: -93dBm /802.11g: -73dBm / 802.11n: -68dBm

Speed:

• 802.11ac: up to 1733Mbps, 802.11n: up to 300Mbps


• 802.11a: up to 54Mbps, 802.11g: 54Mbps, 802.11b: 11Mbps

Wireless Security: WPA-PSK/ WPA2-PSK encryption

Antennas: 2x 3dBi 2G Omni Directional + 4x 3dBi 5G Omni Directional

Distance: Outdoors 1000m, Indoors 300m (According to the actual environmental change).

Software

WAN Type: PPPoE, Dynamic IP, Static IP, WISP

DHCP Settings: Server, Client.

USB Sharing: Support Samba(Storage)

Function: Time Setting, DHCP Server, Wireless Setting.

Dimensions

Unit Dimensions: 125mm x 134mm x 115.5mm (L x W x H)

Environmental

Operating Temperature: 0ºC~40ºC Storage Temperature: -10~70ºC Relative Humidity(Operational): 10%~90%, noncondensing Relative Humidity(Storage): 10%~90%, noncondensing

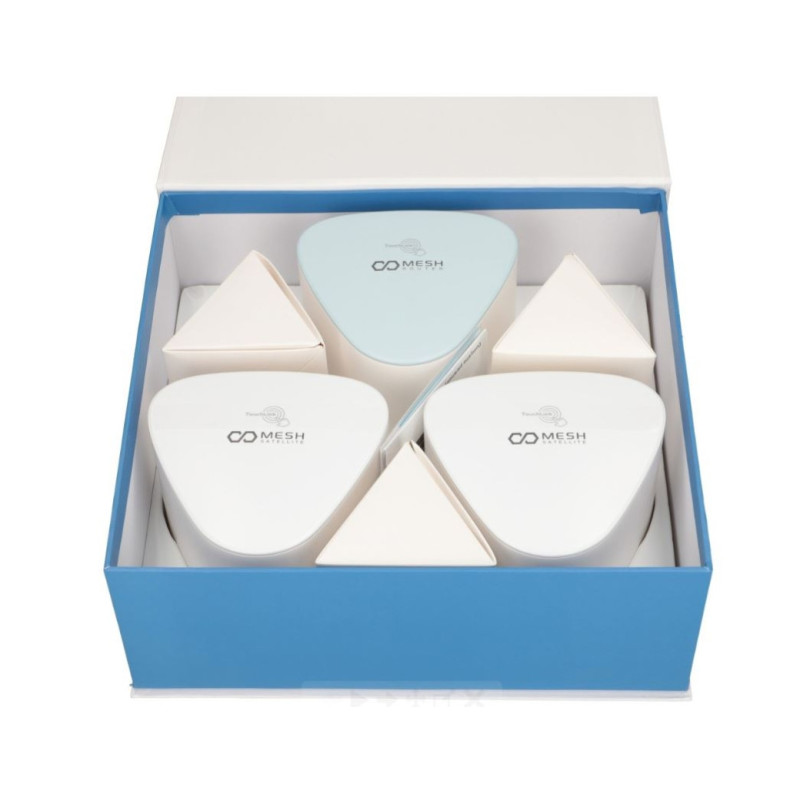

PACKAGE CONTENTS:

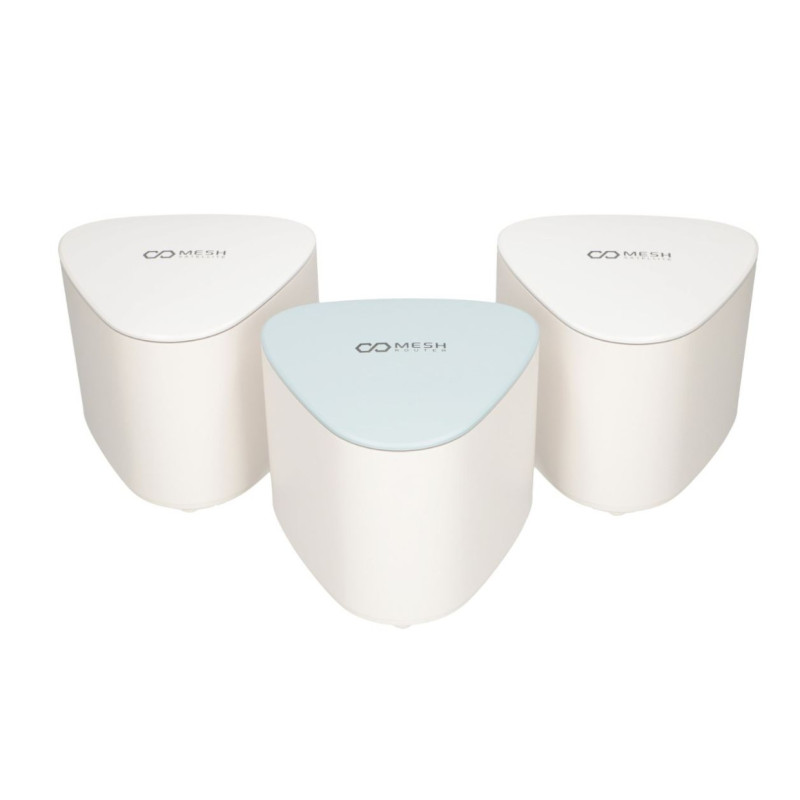

1 x Mesh Router

2 x Mesh Satellites

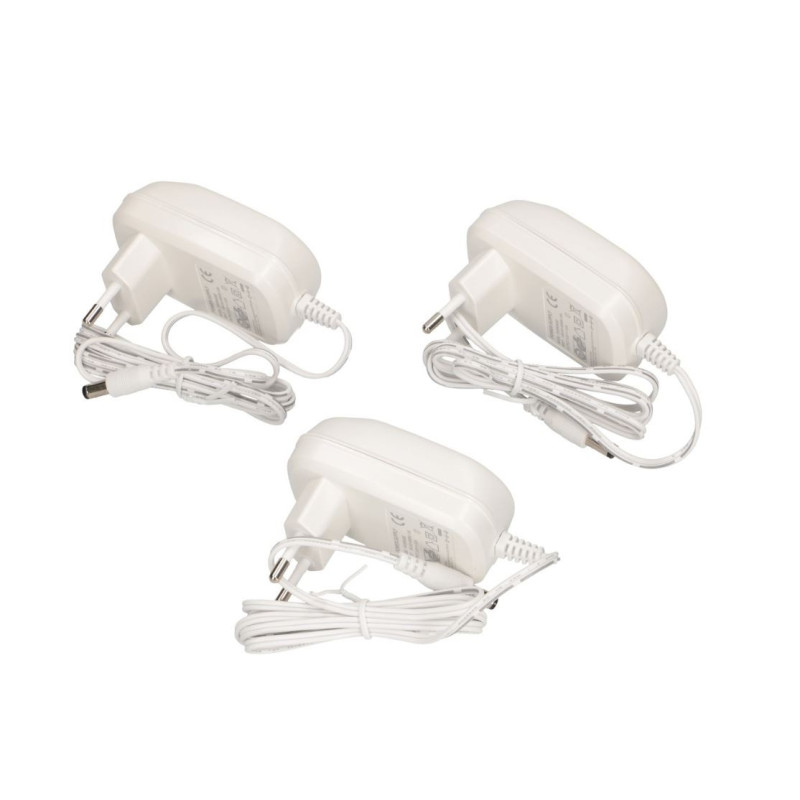

3 x Power Adapters

1 x RJ-45 Network Cable

1 x Quick Installation
