Ubiquiti EF-Core hardware firewall

Ubiquiti EF-Core. Firewall throughput: 100 Gbit/s, IPS/IDS throughput: 79 Mbit/s. Internal memory: 32000 MB, Processor frequency: 2.5 MHz, Heat dissipation: 585 BTU/h. Number of users: 22500 user(s). Security algorithms: TTLS. Routing protocols: OSPF, BGP, VRRP

Enterprise Firewall Core

Enterprise-class 100 Gbps Cloud Gateway delivering 79 Gbps IDS/IPS, 22,500+ client capacity, and 5,000+ concurrent IPsec tunnels.

Data transmission

Firewall throughput: 100 Gbit/s
IPS/IDS throughput: 79 Mbit/s
Feature: Load balancing

Performance

Feature: Built-in processor
Internal memory: 32000 MB
Processor frequency: 2.5 MHz
Processor cores: 24
Heat dissipation: 585 BTU/h
Concurrent connections: 8000
Compatible operating systems: iOS 10.35.0Android 10.38.1

Network

Number of users: 22500 user(s)
Feature: Dynamic DNS (DDNS)
Feature: DHCP server
Feature: Quality of Service (QoS) support

Security

Security algorithms: TTLS
Content filtering: Yes

Protocols

Routing protocols: OSPF, BGP, VRRP

Management features

Feature: URL filtering

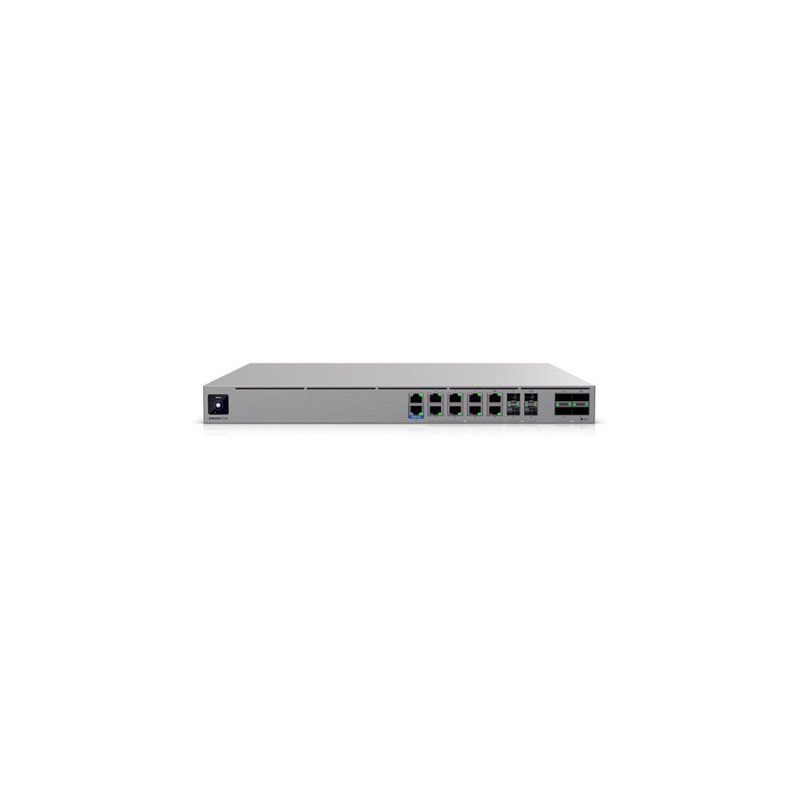

Ports & interfaces

Connectivity technology: Wired
10G Ethernet (copper) ports quantity: 8
Ethernet LAN data rates: 1000,5000,2500,10000,100000,25000,40000 Mbit/s
Console port: DB9
Number of console ports: 1
WAN connection: Ethernet (RJ-45)
SFP28 ports quantity: 4
QSFP28 ports quantity: 4

Design

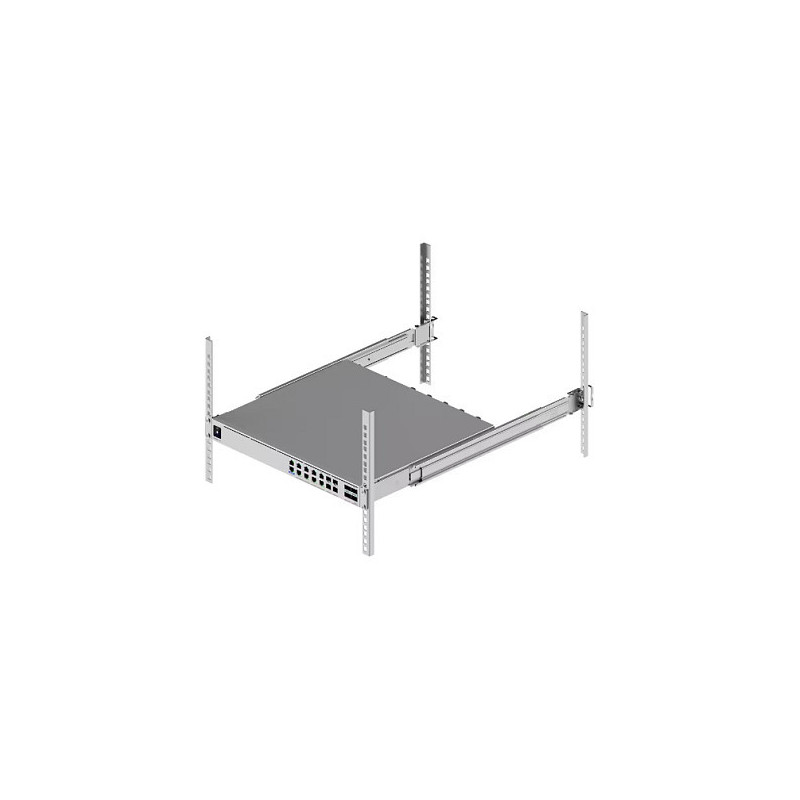

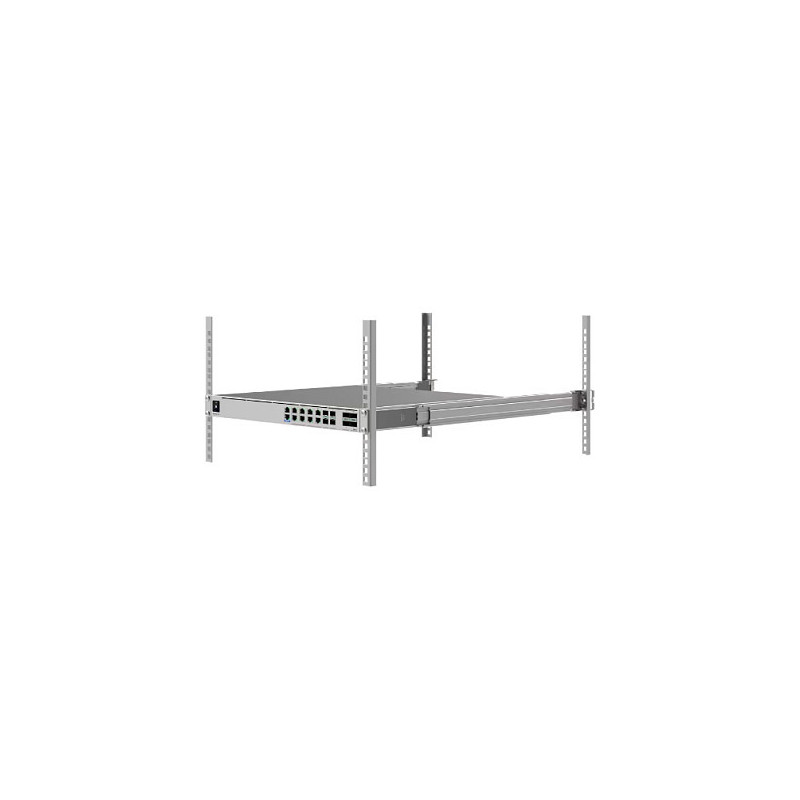

Feature: Rack mounting
Form factor: 1U
Feature: Built-in display
Display: LCD

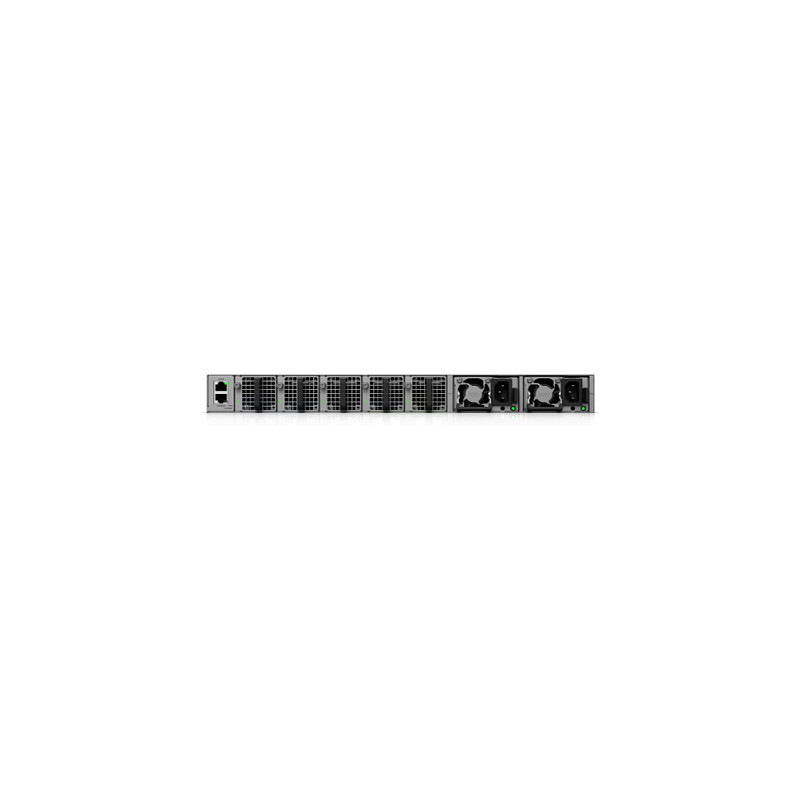

Power

AC input voltage: 100-240 V
AC input frequency: 50/60 Hz
Input current: 7.5 A
Power consumption (typical): 171 W
Power supply: 550 W
Number of power supply units: 2

Certificates

Compliance certificates: National Defense Authorization Act (NDAA), CE, Federal Communications Commission (FCC)
Certification: IC

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 442.4 mm
Depth: 400 mm
Height: 43.7 mm
Weight: 7.85 kg

Packaging content

Cables included: AC
