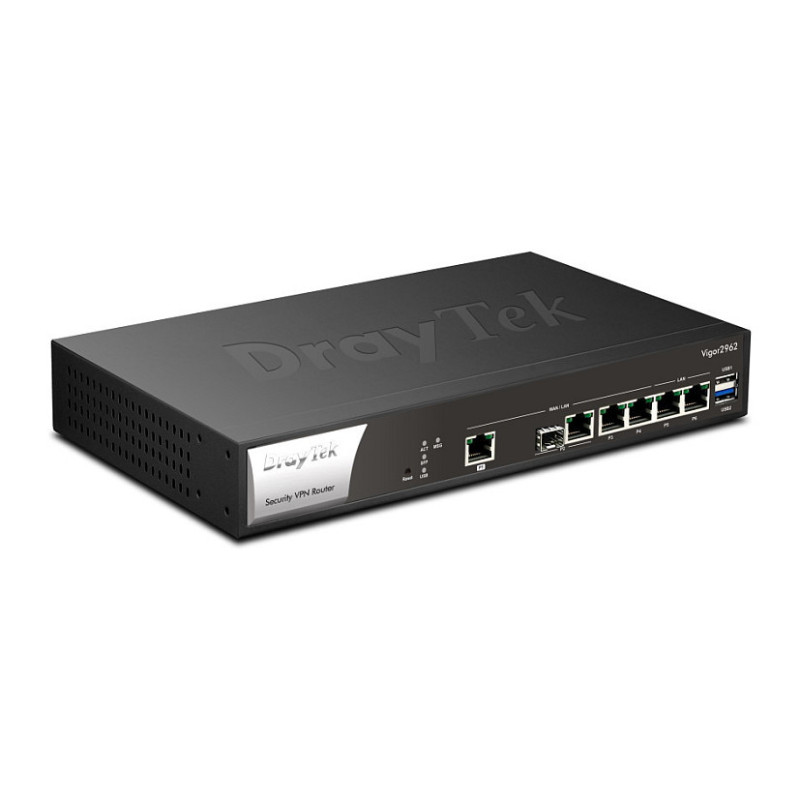

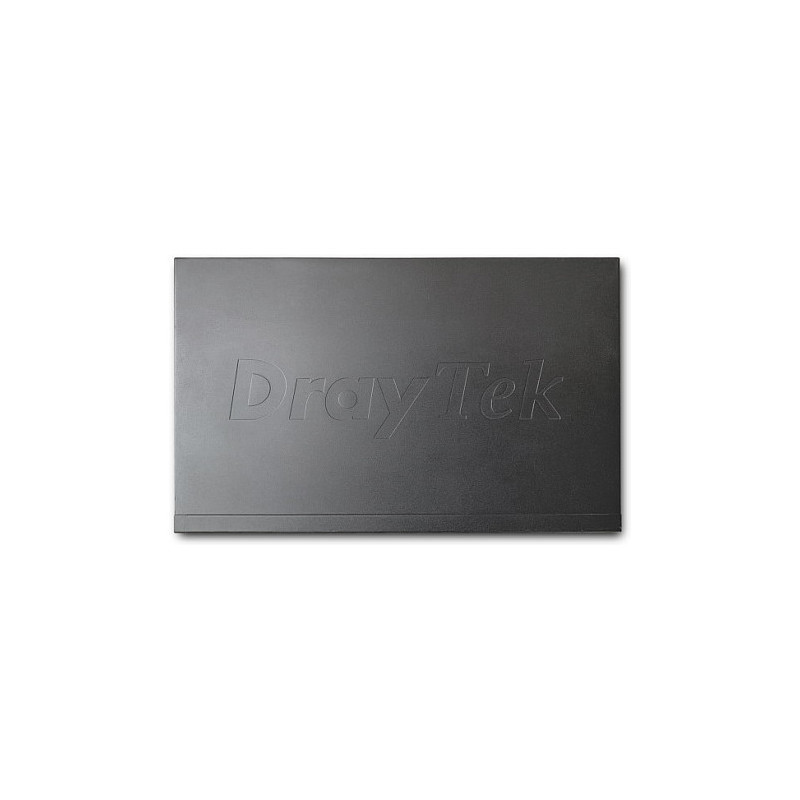

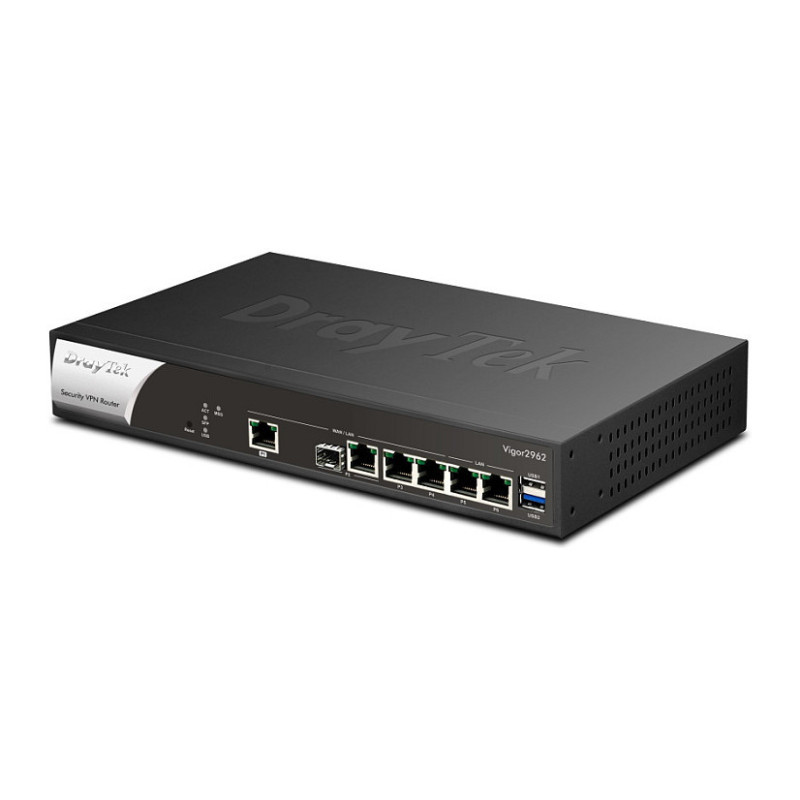

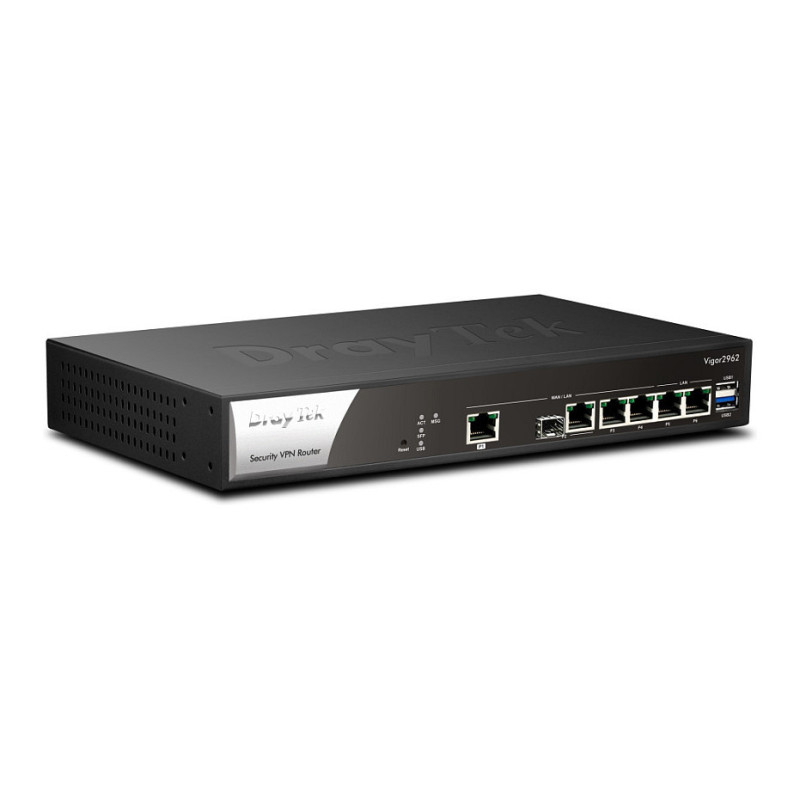

DrayTek Vigor 2962 wired router

DrayTek Vigor 2962. Networking standards: IEEE 802.1Q, Ethernet interface type: 2.5 Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. USB version: 2.0/3.2 Gen 1 (3.1 Gen 1). Routing protocols: RIP-1, RIP-2, RIPng, IPv4 & IPv6 features: Dual stack IPv4/IPv6. Security algorithms: HTTPS, SSH. Cables included: LAN (RJ-45)

The DrayTek Vigor 2962 Dual-WAN Load Balancing Firewall VPN router surpasses Gigabit speeds, to get the best performance out of FTTP Fibre Broadband and more. Connects to 2.5Gb Ethernet and SFP Fibre, for LAN or WAN use.

The Vigor 2962 provides a reliable, flexible, and secure network solution with extensive Firewall, Content Filtering, VPN client/server and Quality of Service controls.

An ideal VPN concentrator with 500Mbps SSL VPN performance. Connect up to 50 SSL VPN & OpenVPN users, or 200 IPsec tunnels, simultaneously. With up to 20 LAN subnets, BGP and OSPF, it's well equipped to manage larger, more complex networks and Multi Occupancy Offices.

WAN connection

Feature: Ethernet WAN

Network

Networking standards: IEEE 802.1Q
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Forwarding rate: 900 Mpps
Throughput: 2.2 Gbit/s
Feature: VLAN support
Feature: Multicast support
Feature: Traffic control
Feature: Port forwarding
Feature: Policy-based routing

Mobile network

Mobile network generation: Not supported

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Reset button
Feature: Firmware upgradeable

Ports & interfaces

Ethernet LAN (RJ-45) ports: 4
USB ports quantity: 2
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)

Protocols

Feature: DMZ support
Routing protocols: RIP-1, RIP-2, RIPng
Feature: DHCP client
Feature: DHCP server
IPv4 & IPv6 features: Dual stack IPv4/IPv6

Security

Security algorithms: HTTPS, SSH
Feature: Firewall
Feature: MAC address filtering
Feature: URL filtering
Feature: DoS attack prevention
Feature: Network address translation (NAT)
VPN tunnels quantity: 200

Packaging content

Feature: AC adapter included
Cables included: LAN (RJ-45)
Feature: Quick start guide

Design

Product colour: Black, White
Feature: Rack mounting
LED indicators: Activity, USB

Power

Power consumption (typical): 15 W
AC input voltage: 220 - 240 V

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 273 mm
Depth: 170 mm
Height: 45 mm
Weight: 1.7 kg
