Cudy WR3000 wireless router

Cudy WR3000. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 2402 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: WPA, WPA2, WPA3. Product type: Tabletop router, Product colour: Black, LED indicators: LAN, Power, Status, WPS

Boosted Coverage, Lower Latency

Direction Detected, Signal Boosted
Beamforming detects the direction of connected devices and forms a focused signal towards them to improve coverage.

Easier Combos in Games
The upgraded Wi-Fi 6 standard features downlink and uplink MU-MIMO and OFDMA, providing up to 8X (2.4 GHz) to 16X (5 GHz) greater network capacity to be more responsive under heavy use.

Versatile Functionalities

VPN Server and Client
Enables work from home and secure remote access with the support of popular VPN protocols. (Requires firmware newer than 1.16.1)


DNS Encryption
Protects your browsing record from leaking with DNS over TLS service with Cloudflare, Google, and Quad9.

Cudy Mesh Ready
Supports Cudy Mesh to enable seamless roaming for the whole home with other Cudy Mesh devices.

IPTV
Configure a specific network port for IPTV transmission to deliver television services from the network operator to your TV.

WAN connection

Feature: Ethernet WAN
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max): 2402 Mbit/s
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band): 574 Mbit/s
WLAN data transfer rate (second band): 2402 Mbit/s

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Port forwarding
Feature: Port triggering
Feature: Dynamic DNS (DDNS)
Number of guest networks (2.4 GHz): 1
Number of guest networks (5 GHz): 1
Feature: PPPoE/PPTP/L2TP pass-through

Ports & interfaces

Ethernet LAN (RJ-45) ports: 3
Feature: DC-in jack

Management features

Feature: Web-based management
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: Bandwidth control
Feature: Reset button
Feature: WPS push button
Feature: MU-MIMO technology
Feature: MIMO

Security

Security algorithms: WPA, WPA2, WPA3
Feature: Firewall
Feature: Guest access
Feature: Parental control
Feature: MAC address filtering
Feature: IP address filtering
Feature: URL filtering
Feature: System event log
Feature: IGMP snooping
Feature: DMZ support

Protocols

Feature: DHCP client

Design

Product colour: Black
LED indicators: LAN, Power, Status, WPS
Product type: Tabletop router

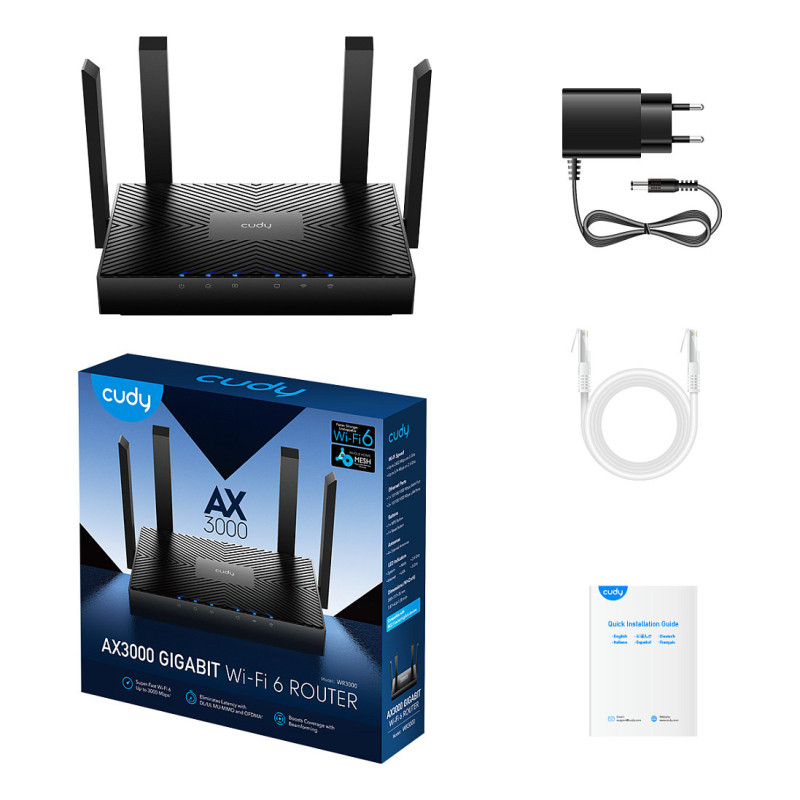

Packaging content

Cables included: LAN (RJ-45)
Feature: AC adapter included
Feature: Antenna included
Feature: Quick installation guide

Antenna

Antenna design: External
Antennas quantity: 4
Antenna direction type: Omni-directional

Power

Power source type: DC
Output voltage: 12 V
Output current: 1 A
Power consumption (typical): 4.2 W
Feature: External power adapter

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

System requirements

Windows operating systems supported: Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Mac operating systems supported: MacOS
Feature: Mac compatibility

Weight & dimensions

Width: 183.3 mm
Depth: 109 mm
Height: 35 mm
Weight: 295 g

Packaging data

Package width: 240 mm
Package depth: 230 mm
Package height: 60 mm
Package weight: 614 g
Package type: Box
Number of products included: 1 pc(s)

Logistics data

Country of origin: China
