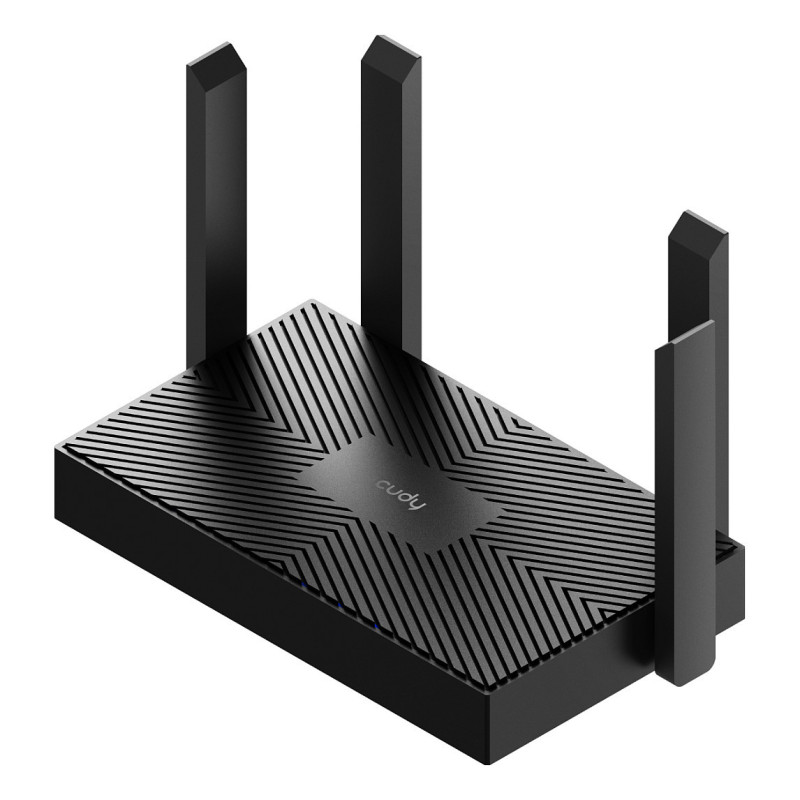

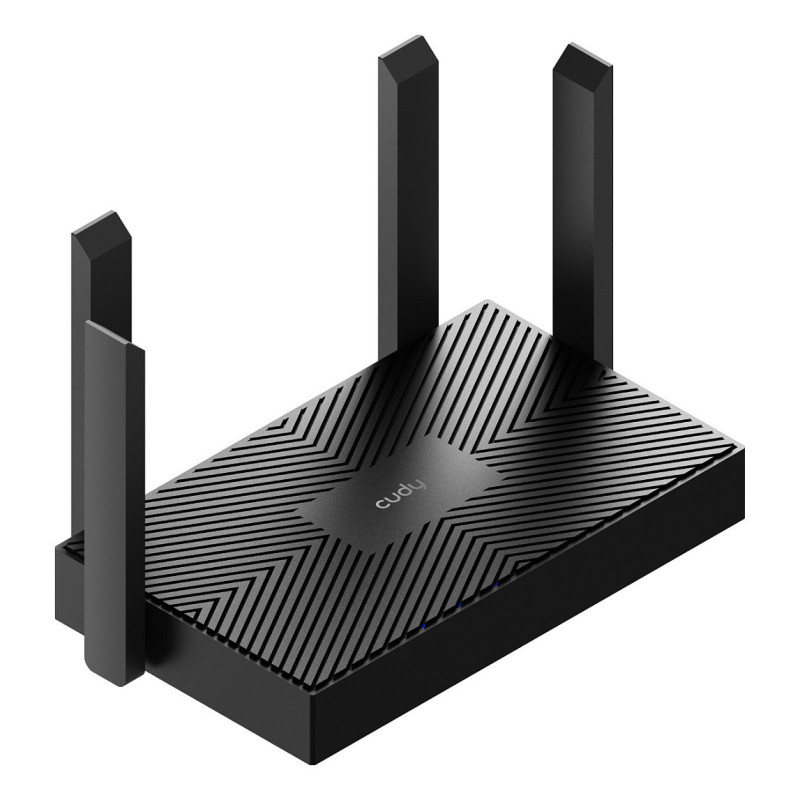

Cudy WR1500 wireless router

Cudy WR1500. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 1201 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Security algorithms: WPA, WPA2, WPA3. Product type: Tabletop router, Product colour: Black, LED indicators: Status

Upgrade to Wi-Fi 6 for Gigabit+ Speed
Keep buffering at bay with Wi-Fi 6 standards. The advanced 1024-QAM modulation and a higher symbol rate boost the 5 GHz speed by 38%, offering super-fast download rivalling a Gigabit Ethernet wired network.

High-Capacity Wi-Fi for Smart Home
Keep buffering at bay with Wi-Fi 6 standards. The advanced 1024-QAM modulation and a higher symbol rate boost the 5 GHz speed by 38%, offering super-fast download rivalling a Gigabit Ethernet wired network.

Boosted Coverage, Lower Latency
Beamforming detects the direction of connected devices and forms a focused signal towards them to improve coverage.

Versatile Functionalities

VPN Client
Enables work from home and secure remote access with the support of popular VPN protocols.

Parent Control
Set Wi-Fi time schedules and block inappropriate websites to protect your loved ones.

Cudy Mesh
Supports Cudy Mesh to enable seamless roaming for the whole home with other Cudy Mesh devices.

IPTV
Configure a specific network port for IPTV transmission to deliver television services from the network operator to your TV.

Encrypt Your Wi-Fi to the Highest Level
The legacy WPA and WPA2 are weak under the risk of brute-force attacks. WPA3, as the latest encryption protocol, encrypts your wireless communication to the best level, protecting your data from leaking.

WAN connection

Feature: Ethernet WAN
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max): 1201 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band): 300 Mbit/s
WLAN data transfer rate (second band): 1201 Mbit/s
Modulation: 1024-QAM

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Port forwarding
Feature: Dynamic DNS (DDNS)

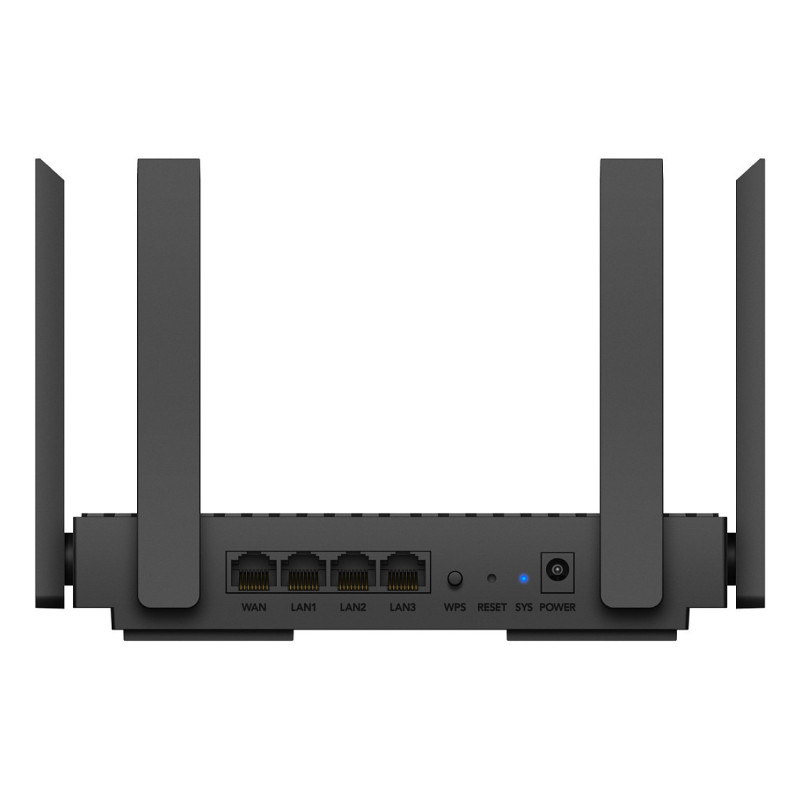

Ports & interfaces

Ethernet LAN (RJ-45) ports: 3
Feature: DC-in jack

Management features

Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: Reset button
Feature: WPS push button

Security

Security algorithms: WPA, WPA2, WPA3
Feature: Firewall
Feature: Filtering
Feature: MAC address filtering
Feature: IP address filtering
Feature: URL filtering
Feature: IGMP snooping
Feature: DMZ support

Protocols

Feature: DHCP client
Feature: DHCP server

Design

Product colour: Black
LED indicators: Status
Product type: Tabletop router

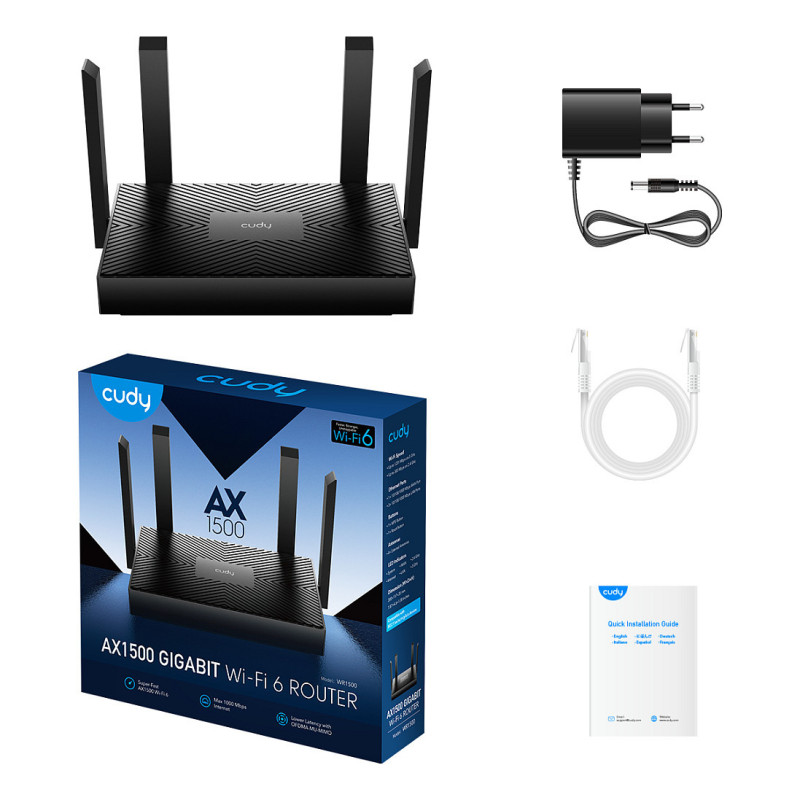

Packaging content

Cables included: LAN (RJ-45)
Feature: AC adapter included
Feature: Quick installation guide

Antenna

Antenna design: External
Antennas quantity: 4
Antenna direction type: Omni-directional

Power

Power source type: DC
Output voltage: 12 V
Output current: 1 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

System requirements

Browser supported: Edge, Firefox, Chrome, Safari

Weight & dimensions

Width: 183.3 mm
Depth: 109 mm
Height: 35 mm
Weight: 220 g

Packaging data

Package width: 240 mm
Package depth: 230 mm
Package height: 60 mm
Package weight: 559 g
Number of products included: 1 pc(s)
