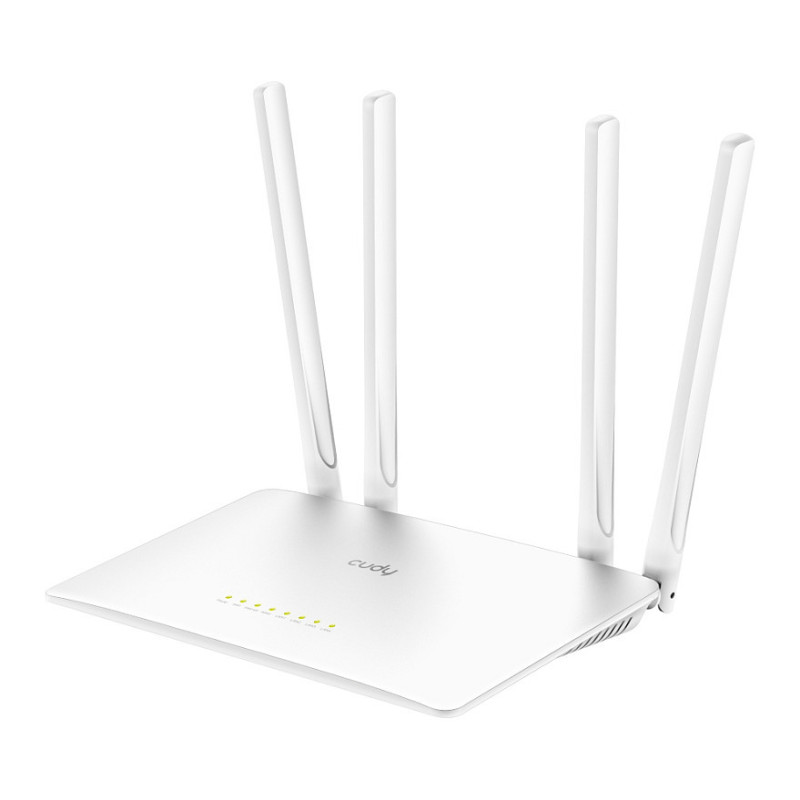

Cudy WR1200 wireless router

Cudy WR1200. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, VPN support: PPTP/L2TP/OpenVPN/WireGuard. Security algorithms: WPA, WPA2, WPA3. Product type: Tabletop router, Product colour: White, LED indicators: LAN, Power, WAN, WLAN

Responsive and Wide-Coverage Wi-Fi
MU-MIMO communicates with multiple devices simultaneously and reduce the latency. Beamforming boosts signal towards the connected devices.

Fast Ethernet for Stable Wired Connections
Reliable high-speed ports ensure low-latency, stable performance for streaming, gaming, and data transfer.

Easy Setup, Versatile Management

Network Status Panel
Finish setup in minutes and know the system status at a glance with the status panel.

Parental Controls
Create profiles to block certain pages and limit online time such as weekday or weekends to protect your loved ones.

VPN Client and Servers
PPTP/L2TP/WireGuard/OpenVPN allow you to connect multiple devices at once to your private or commercial VPN.

Enhanced Security
WPA3 encrypts your wireless communication and protects your data from leaking.

Parental Controls
Set Wi-Fi time schedules and block inappropriate websites to protect your loved ones. You can create custom profiles to easily manage multiple devices.

A dual-band WiFi router ideal for streaming smooth video playback with a maximum of 100 Mbps internet access, featuring MU-MIMO and App control.

WAN connection

Feature: Ethernet WAN
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 867 Mbit/s
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band): 300 Mbit/s
WLAN data transfer rate (second band): 867 Mbit/s

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Port forwarding
Feature: Port triggering
Feature: Dynamic DNS (DDNS)
Number of guest networks (2.4 GHz): 1
Number of guest networks (5 GHz): 1
Feature: Wireless radio
VPN support: PPTP/L2TP/OpenVPN/WireGuard

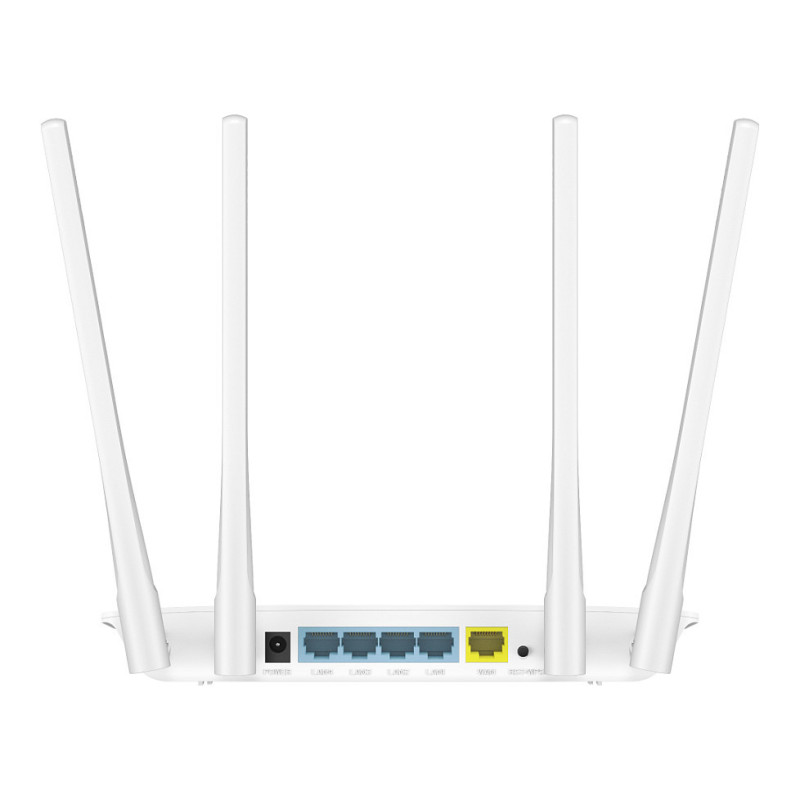

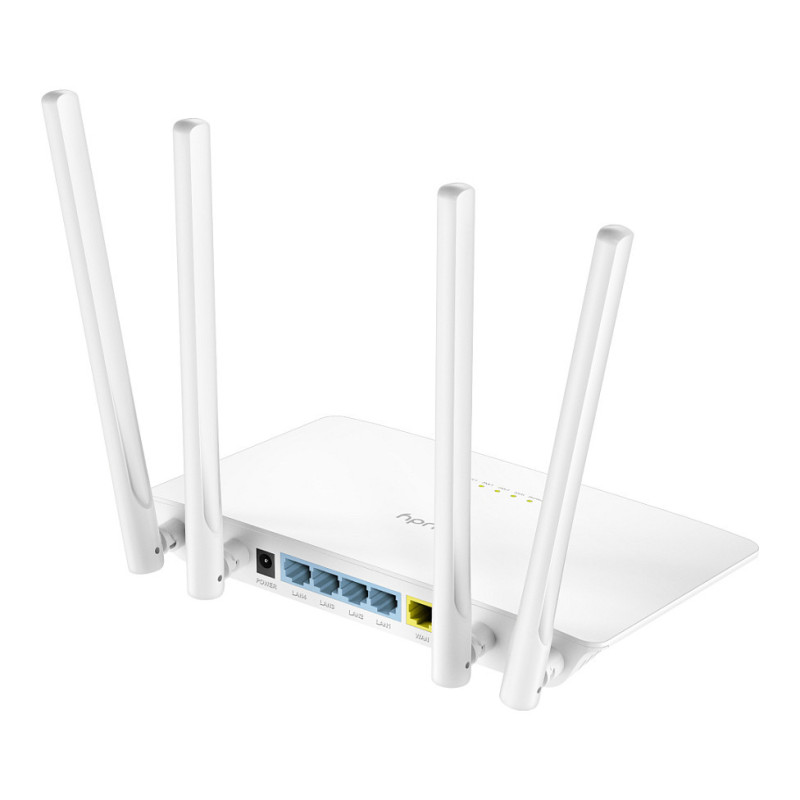

Ports & interfaces

Ethernet LAN (RJ-45) ports: 4
Feature: DC-in jack

Management features

Feature: Web-based management
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: Reset button
Feature: WPS push button
Feature: Intelligent Mesh technology
Feature: MU-MIMO technology
Feature: MIMO

Security

Security algorithms: WPA, WPA2, WPA3
Feature: Firewall
Feature: Guest access
Feature: Parental control
Feature: Filtering
Feature: MAC address filtering
Feature: IP address filtering
Feature: IGMP snooping
Feature: DMZ support

Protocols

Feature: DHCP client
Feature: Universal Plug and Play (UPnP)

Design

Product colour: White
LED indicators: LAN, Power, WAN, WLAN
Product type: Tabletop router

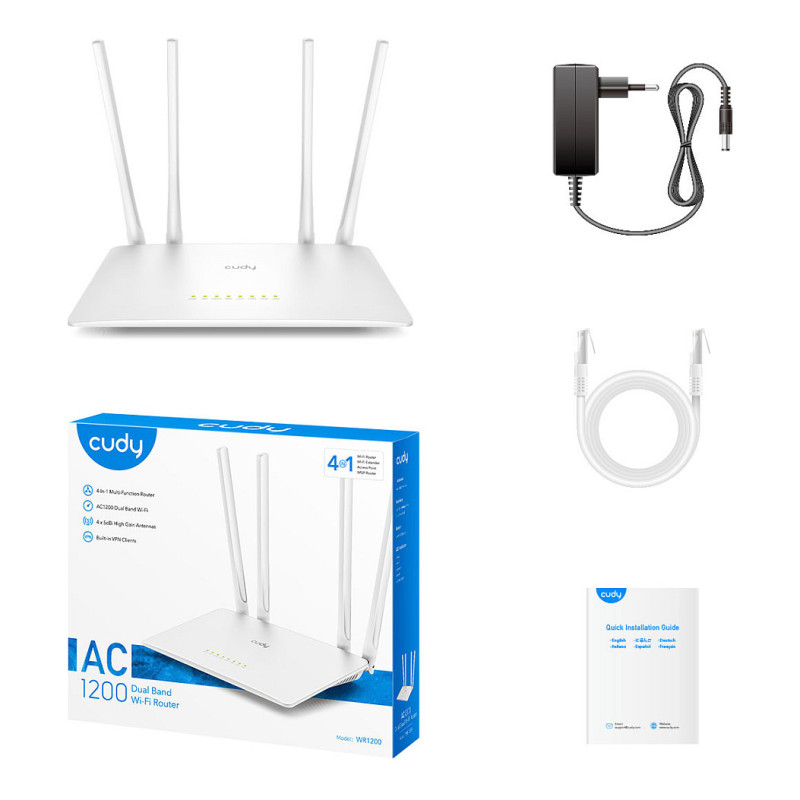

Packaging content

Cables included: LAN (RJ-45)
Feature: AC adapter included
Feature: Quick installation guide

Antenna

Antenna design: External
Antenna gain level (max): 5 dBi
Antennas quantity: 4

Features

Internal memory: 64 MB
Flash memory: 8 MB

Power

Power source type: DC
Output voltage: 12 V
Output current: 1 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

System requirements

Browser supported: Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
Windows operating systems supported: Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Mac operating systems supported: MacOS
Feature: Mac compatibility

Weight & dimensions

Width: 220 mm
Depth: 135 mm
Height: 30 mm
Weight: 259 g

Packaging data

Package width: 290 mm
Package depth: 250 mm
Package height: 64 mm
Package weight: 651 g
Package type: Box
Number of products included: 1 pc(s)

Other features

Supported protocols: IPv6
Supported WAN type: Dynamic IP/Static IP/PPPoE
