Cudy WR11000 wireless router

Cudy WR11000. WAN connection type: RJ-45. Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz), Top Wi-Fi standard: Wi-Fi 7 (802.11be), WLAN data transfer rate (max): 5765 Mbit/s. Ethernet LAN interface type: 2.5 Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2500 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n. Security algorithms: WPA, WPA2, WPA3. Product type: Tabletop router, Product colour: Black, LED indicators: LAN, System, WLAN, WPS

Powerful CPU. Super-Responsive.
Feel the instantaneous respond and smooth operation when browsing, streaming, and gaming, even when connecting numerous devices. The advanced Quad-Core CPU and 512 MB large RAM provides big bump in processing power with higher capacity.

Phenomenal Coverage Performance
The four-way high-power FEMs delivers phenomenal transmission power, enabling it to navigate more complex environment. The high-gain antennas with Beamforming technology offer stronger, more focused Wi-Fi signals towards client devices.

Parental Controls
Set Wi-Fi schedules and block inappropriate content to keep your family safe online. Easily manage multiple devices with customization profiles.

Seamless Whole-Home Wi-Fi
One network, no switching needed. Easy setup with wireless pairing or auto wired connections. Seamless switching for smooth whole-home coverage.

WAN connection

Feature: Ethernet WAN
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
WLAN data transfer rate (max): 5765 Mbit/s
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN data transfer rate (first band): 688 Mbit/s
WLAN data transfer rate (second band): 4324 Mbit/s
WLAN data transfer rate (third band): 5765 Mbit/s

Network

Feature: Ethernet LAN
Ethernet LAN interface type: 2.5 Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Feature: Port forwarding
Feature: Port triggering
Number of guest networks (2.4 GHz): 1
Number of guest networks (5 GHz): 1
Number of guest networks (6 GHz): 1
VPN server: WireGuard OpenVPN IPsec Zerotier PPTP L2TP

Ports & interfaces

Ethernet LAN (RJ-45) ports: 3
Feature: DC-in jack

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Wake-on-LAN ready
Feature: Reset button
Feature: WPS push button
Feature: MU-MIMO technology
Feature: MIMO

Security

Security algorithms: WPA, WPA2, WPA3
Feature: Filtering
Feature: MAC address filtering
Feature: IP address filtering
Feature: URL filtering
Feature: IGMP snooping
Feature: DMZ support

Protocols

Feature: DHCP client
Feature: DHCP server

Design

Product colour: Black
Feature: Wall mountable
LED indicators: LAN, System, WLAN, WPS
Product type: Tabletop router

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC)

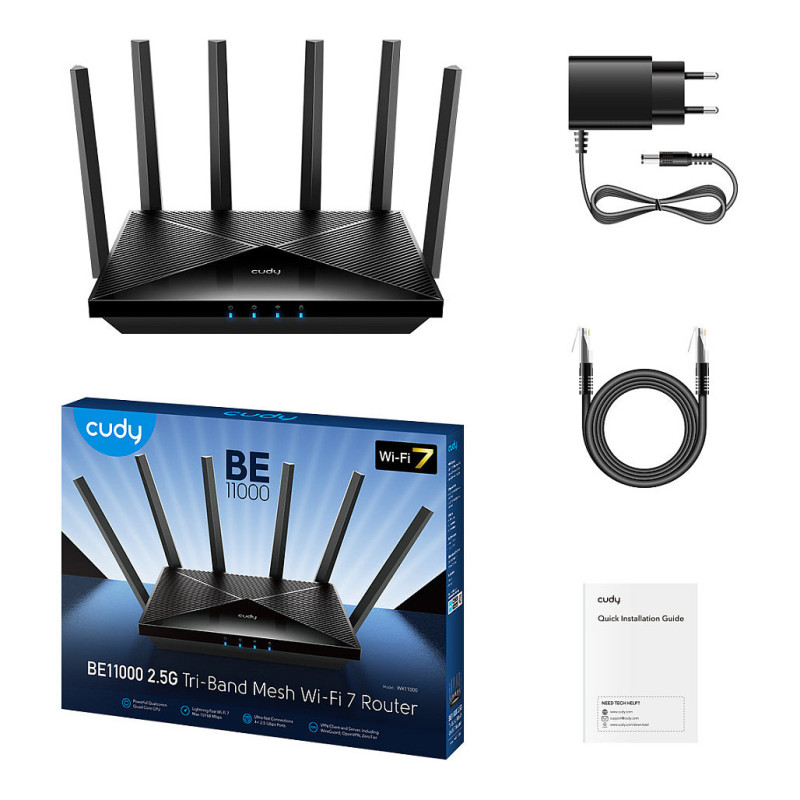

Packaging content

Cables included: LAN (RJ-45)
Feature: AC adapter included
Feature: Quick installation guide

Antenna

Antenna design: External
Antenna type: 2x2
Antenna gain level (max): 5 dBi
Antennas quantity: 6

Features

Feature: Built-in processor
Processor architecture: ARM Cortex-A53
Processor frequency: 1500 MHz
Processor cores: 4
Internal memory: 512 MB
Internal memory type: DDR4
Flash memory: 128 MB

Power

Power source type: DC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Output voltage: 12 V
Output current: 2 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 253 mm
Depth: 152.5 mm
Height: 48.2 mm
Weight: 643.4 g

Packaging data

Package width: 431 mm
Package depth: 324 mm
Package height: 58 mm
Package weight: 1.24 kg
