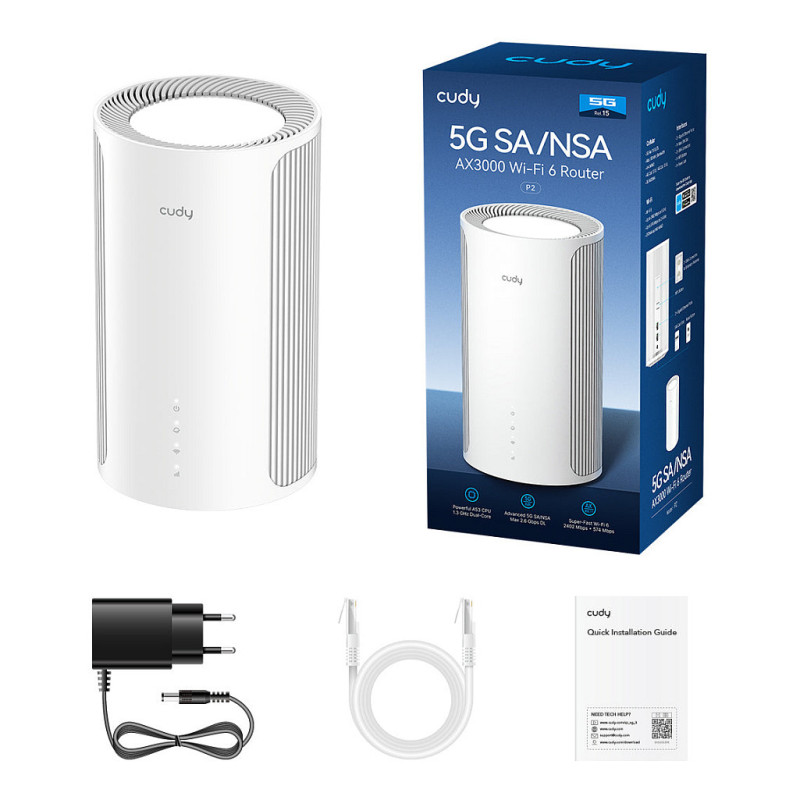

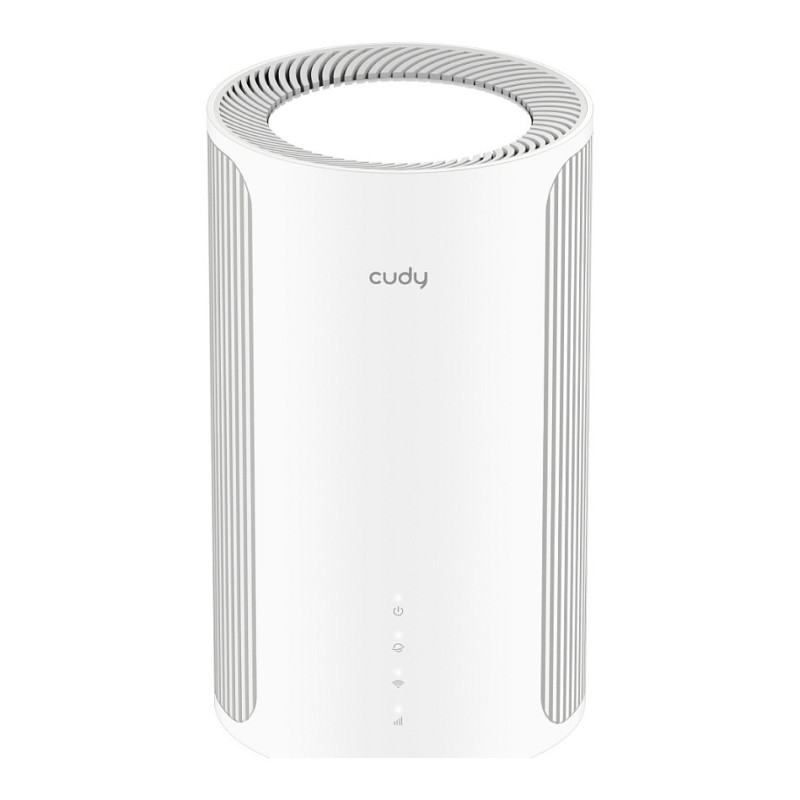

Cudy P2 wireless router

Cudy P2. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 2402 Mbit/s. Ethernet LAN interface type: 2.5 Gigabit Ethernet, VPN server: WireGuard OpenVPN IPsec Zerotier PPTP L2TP. Mobile network generation: 5G, 2G standards: GPRS, 3G standards: WCDMA. Security algorithms: WPA, WPA2, WPA3. Product type: Tabletop router, Product colour: White

Lightning-Fast 5G. Max 2.6 Gbps Download.
Unlock the lightning 5G connectivity that rivals a broadband connection. P2 provides download speed up to 2.6 Gbps with universal compatibility with major carriers plan.

150% Faster Wi-Fi Speed
The high-capacity AX3000 Wi-Fi 6 built with powerful 1.3 GHz dual-core CPU provides super-fast connection for every devices. Stream 4K live feed and download at full speed with ease.

Home
Plug and play easy-to-install WiFi for every home—no rigid broadband subscription.


Automobile
Provide decent networks for all devices on your road journey.


Surveillance
Make sure the network is always on with the backup function.


Booth
Utilize the flexible pay-as-you-go SIM card plan to equip your temporary booth with a fast network. (SIM card is not included)

Connect and Boost with Ease

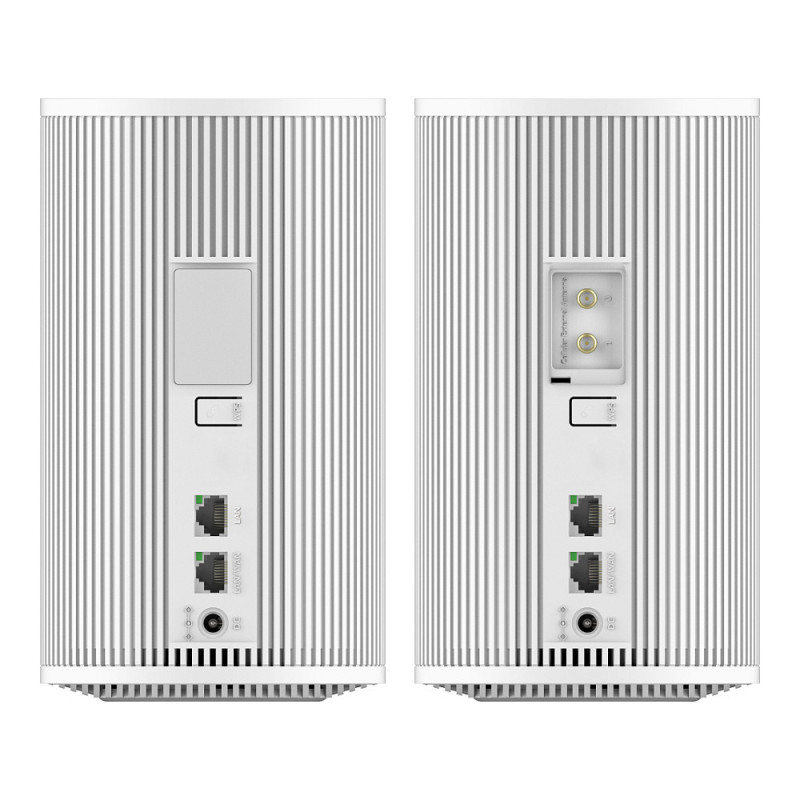

Two Gigabit Ethernet ports provide stable wired network sharing. Two SMA connectors allow you to install customized extension cellular antennas.

Secure VPN Access
In addition to the management via Cudy cloud, this router supports multiple VPN protocols to enable remote Work-From-X, or sharing a commercial VPN for all.


Keep You Connected
Set the WAN/LAN port as WAN mode, connect your network to broadband service, then back it up with a WISP and a 5G connection.

A 5G WiFi 6 router with a max 2.6 Gbps download speed. It features one SIM slot, a high-capacity AX3000 WiFi 6 for high-speed internet. The ISP clients can add a RJ11 port for VoIP/VoNR service.

WAN connection

Feature: Ethernet WAN
Feature: SIM card slot
Feature: 3G/4G USB modem compatibility

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max): 2402 Mbit/s
Wi-Fi standards: Wi-Fi 6 (802.11ax), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band): 574 Mbit/s
WLAN data transfer rate (second band): 2402 Mbit/s
Modulation: 4096-QAM

Network

Feature: Ethernet LAN
Ethernet LAN interface type: 2.5 Gigabit Ethernet
Feature: Port forwarding
Feature: Port triggering
Feature: Dynamic DNS (DDNS)
Number of guest networks (2.4 GHz): 1
Number of guest networks (5 GHz): 1
VPN server: WireGuard OpenVPN IPsec Zerotier PPTP L2TP

Mobile network

Mobile network generation: 5G
2G standards: GPRS
3G standards: WCDMA
4G standard: LTE-FDD
5G standard: Sub6
5G bands supported: 850,1600,1800,1900,2300,2500,2800 MHz
4G bands supported: 800,850,900,1500,1900,2000,2300,2400,2600 MHz
3G bands supported: 800,850,900,1800 MHz

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
RJ-11 ports quantity: 1
Feature: DC-in jack

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Reset button
Feature: WPS push button
Feature: MU-MIMO technology
Feature: MIMO

Security

Security algorithms: WPA, WPA2, WPA3
Feature: Firewall
Feature: Guest access
Feature: Filtering
Feature: MAC address filtering
Feature: IP address filtering
Feature: URL filtering
Feature: IGMP snooping
Feature: DMZ support

Protocols

Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)

Design

Product colour: White
Product type: Tabletop router

Antenna

Antenna design: Internal
Antenna type: 2x2
Antenna connector type: SMA
Feature: Detachable antenna(s)

Features

Feature: Built-in processor
Processor architecture: ARM Cortex-A53
Processor frequency: 1300 MHz
Processor cores: 2
Internal memory: 128 MB
Flash memory: 256 MB

Power

Power source type: DC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Output voltage: 12 V
Output current: 1.5 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 116 mm
Depth: 116 mm
Height: 202 mm
Weight: 650.8 g

Packaging data

Package width: 313 mm
Package depth: 152 mm
Package height: 132 mm
Package weight: 1.08 kg
