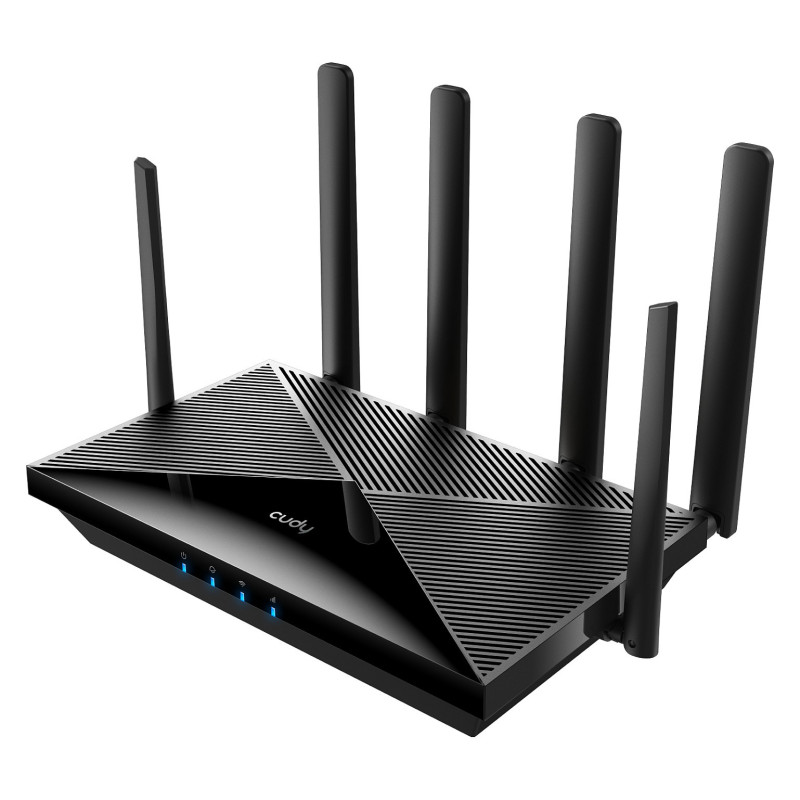

Cudy LT700 wireless router

Cudy LT700. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 100,1000 Mbit/s, VPN server: WireGuard OpenVPN IPsec Zerotier PPTP L2TP. Mobile network generation: 4G, 4G standard: LTE-TDD & LTE-FDD, SIM card type: NanoSIM. Security algorithms: WPA, WPA2, WPA3, Firewall security: Mac Filter, IP Filter, Domain Filter, NAT functionality: Port Forwarding, Port Triggering, UPnP, DMZ

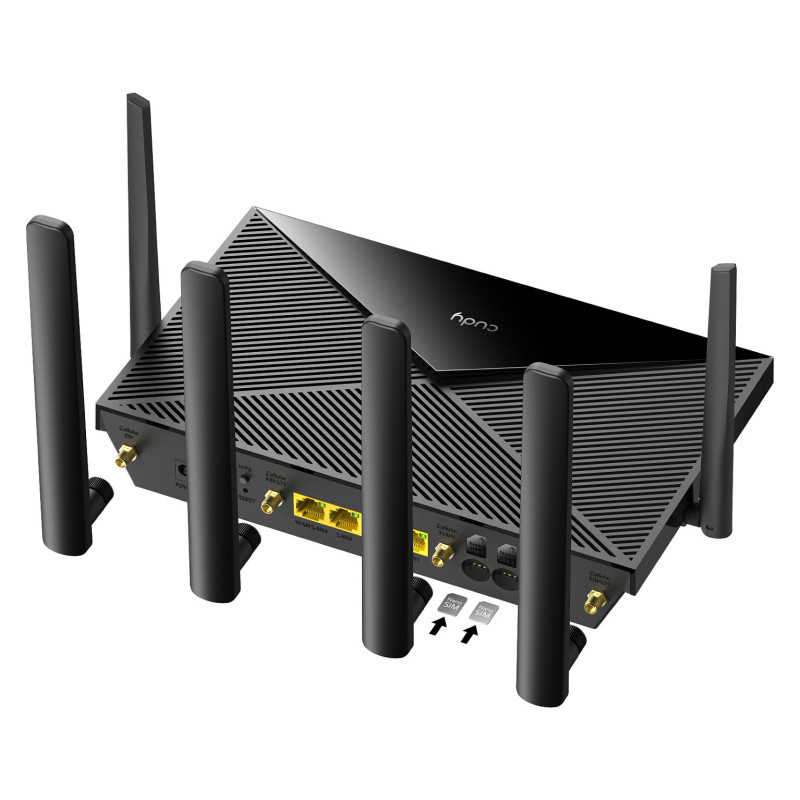

Dual SIM Slots
Dual SIM slots provide redundancy and keep the device always online.

Backup and Detachable Antennas
WAN/WISP/Cellular1/Cellular2 give you triple backups for a reliable network. To enhance signal quality, you may replace cellular antennas with extension antennas.

Online Redundancy
Dual SIM slot redundancy and WAN/Cellular backup provide high redundancy for the network.

Band Lock
4G/5G band lock makes it possible to lock the 4G working frequency to one or several bands to maintain operation stability.

TTL Settings
Support manual sets TTL values to meet ISP's requirements. Support set IPv4 TTL and IPv6 HL Values.

Advanced DNS Security
Encrypt your web browsing lookup with trustful partners, preventing eavesdropping and manipulation of DNS data via a man-in-the-middle attack.

A 4G LTE Advanced WiFi router with dual nano SIM slots and four GbE, providing high-performance and flexible networks for home, office, surveillance, exhibitions, and RV scenarios.

WAN connection

Feature: Ethernet WAN
Feature: DSL WAN
Feature: SIM card slot
Feature: 3G/4G USB modem compatibility
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 867 Mbit/s
Wi-Fi standards: 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11b
WLAN data transfer rate (first band): 300 Mbit/s
WLAN data transfer rate (second band): 867 Mbit/s

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 100,1000 Mbit/s
Feature: Port forwarding
Feature: Port triggering
Feature: Dynamic DNS (DDNS)
Number of guest networks (2.4 GHz): 1
Number of guest networks (5 GHz): 1
VPN server: WireGuard OpenVPN IPsec Zerotier PPTP L2TP

Mobile network

Mobile network generation: 4G
Feature: Dual SIM support
4G standard: LTE-TDD & LTE-FDD
4G LTE category: 6
SIM card type: NanoSIM
Feature: Short Message Service (SMS)

Ports & interfaces

Ethernet LAN (RJ-45) ports: 4
Feature: DC-in jack

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Reset button
Feature: WPS push button
Feature: MU-MIMO technology
Feature: MIMO

Security

Security algorithms: WPA, WPA2, WPA3
Feature: Firewall
Firewall security: Mac Filter, IP Filter, Domain Filter
Feature: Guest access
Feature: Schedule access
Feature: Parental control
Feature: MAC address filtering
Feature: IP address filtering
Feature: URL filtering
Feature: IGMP snooping
Feature: DMZ support
Feature: Network address translation (NAT)
NAT functionality: Port Forwarding, Port Triggering, UPnP, DMZ

Protocols

Feature: DHCP client

Design

Product colour: Black
LED indicators: LTE, Power, Status, WAN, WLAN
Product type: Tabletop router

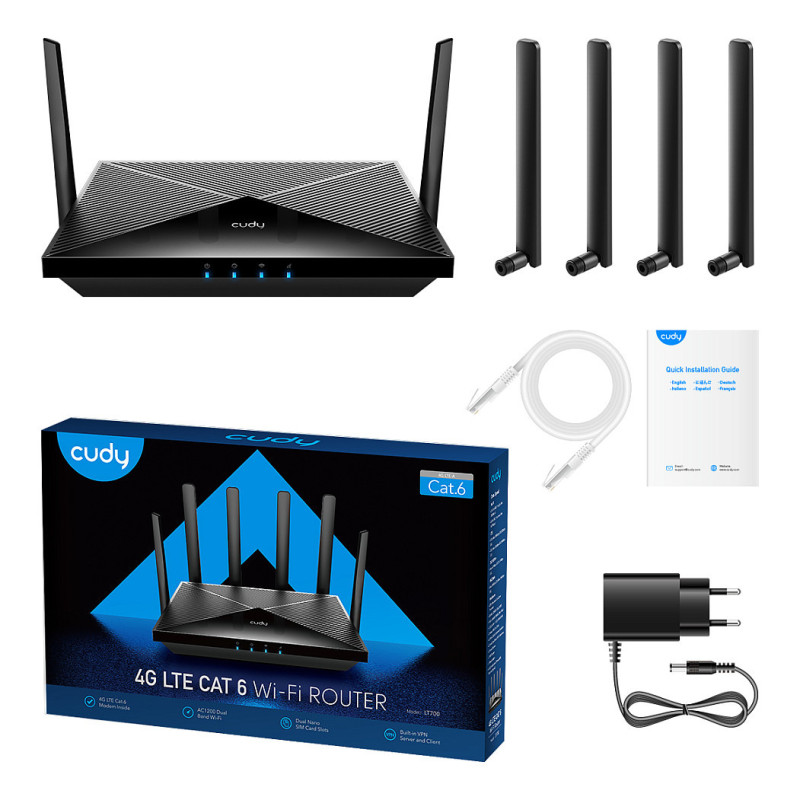

Packaging content

Cables included: LAN (RJ-45)
Feature: AC adapter included
Feature: Antenna included
Feature: Quick installation guide

Antenna

Antenna design: External
Antennas quantity: 6
Feature: Detachable antenna(s)

Features

Feature: Built-in processor
Processor manufacturer: MediaTek
Processor frequency: 880 MHz
Processor cores: 2
Internal memory: 128 MB
Internal memory type: DDR3
Flash memory: 16 MB

Power

Power source type: DC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Output voltage: 12 V
Output current: 1 A
Power consumption (typical): 3.6 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 253 mm
Depth: 152.5 mm
Height: 48.2 mm
Weight: 536 g

Packaging data

Package width: 393 mm
Package depth: 250 mm
Package height: 60 mm
Package weight: 991 g
