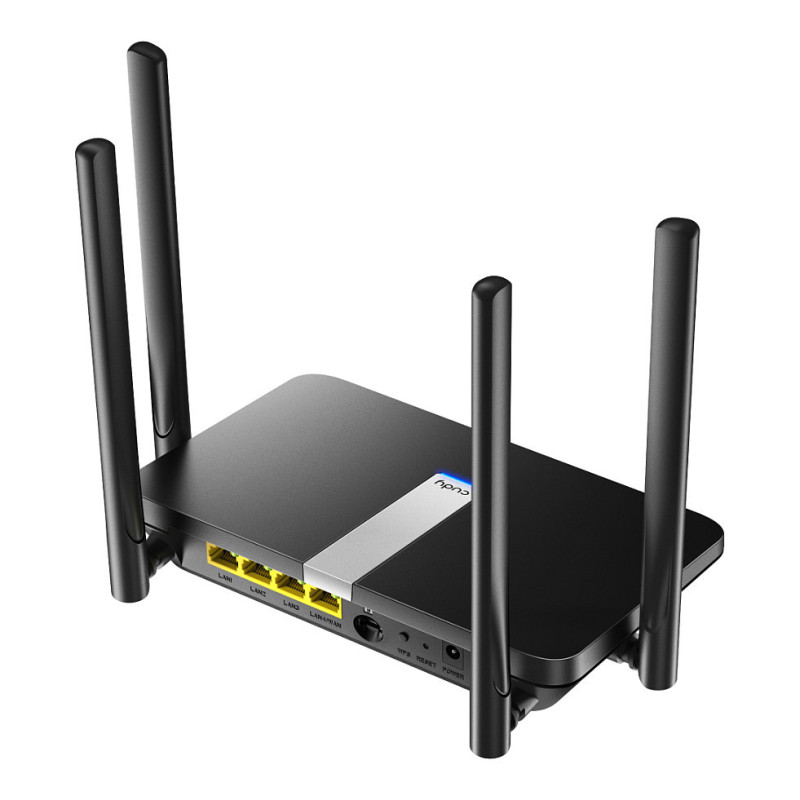

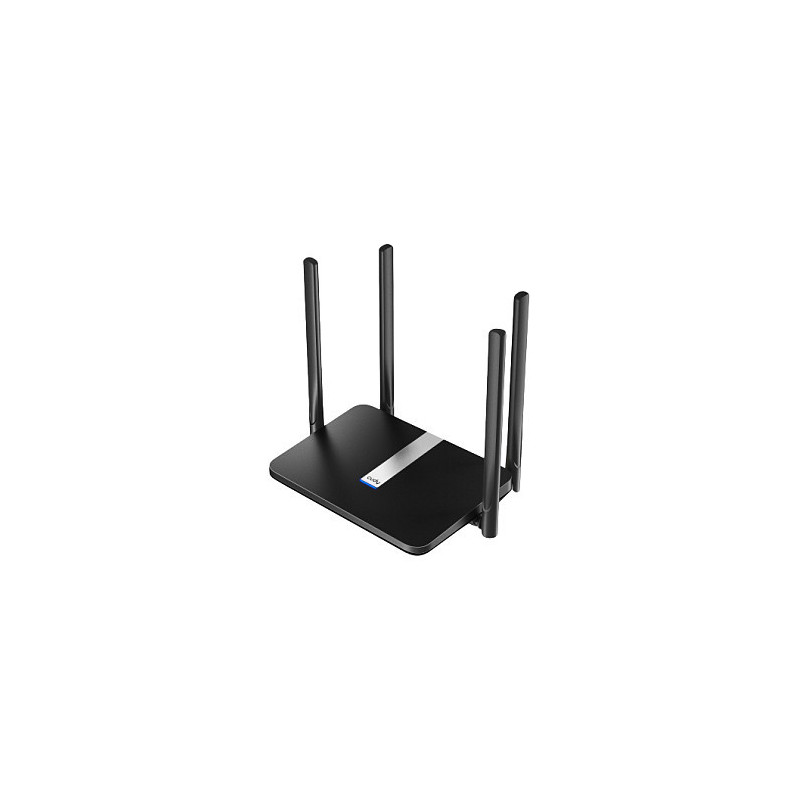

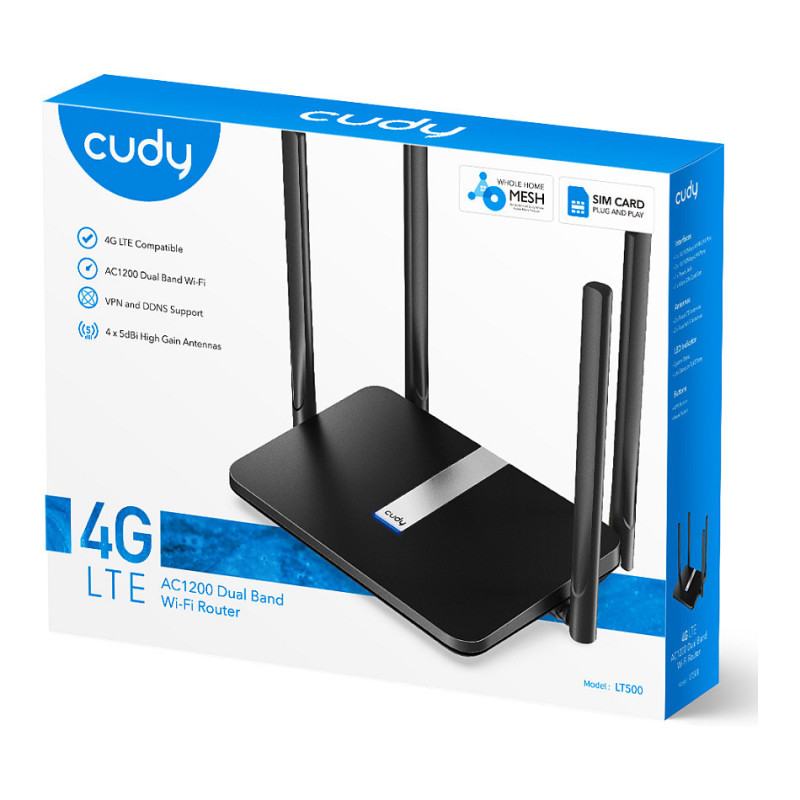

Cudy LT500 wireless router

Cudy LT500. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, VPN support: PPTP/L2TP/OpenVPN/WireGuard/IPsec/Zerotier. Mobile network generation: 4G, 2G standards: Edge, GSM, 3G standards: WCDMA. Security algorithms: WPA, WPA2, WPA3

Turn Everywhere 4G into High-Speed Wi-Fi
Plug in a nano SIM card and connect 4G with a DL speed of up to 150 Mbps. Share the connection via a high-speed dual-band AC1200 Wi-Fi for more than 40 devices.

Stable Internet. Online Guaranteed.

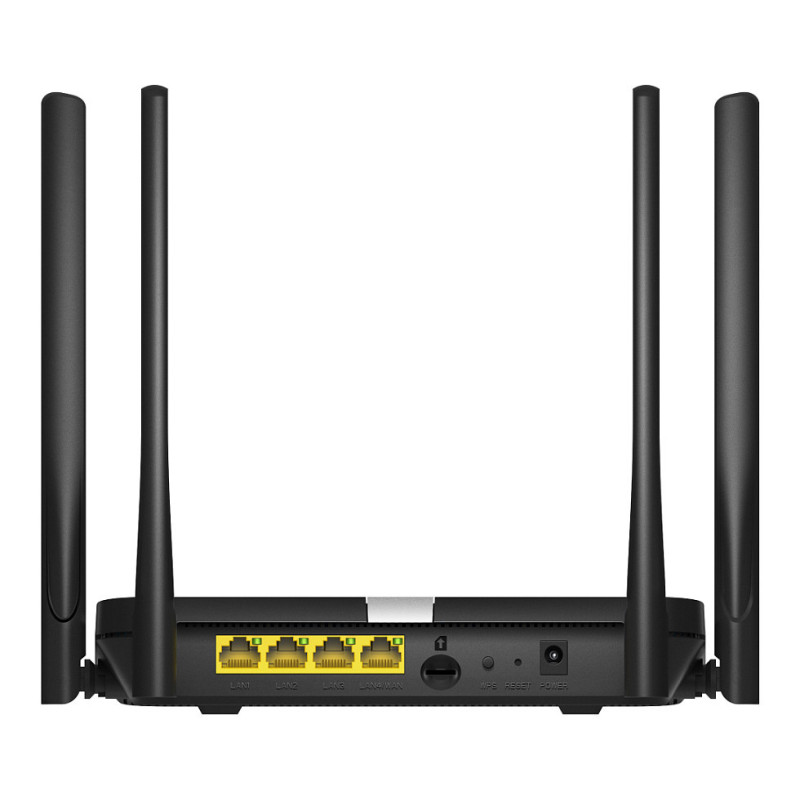

Reliable Wired Sharing over Four Ethernet Ports
Share network via four 10/100 Mbps Ethernet ports, providing stable connections to TV, PC, console, and printers.

Stay Connected
Add redundancy to your network with WAN/WISP/4G connection backup, ideal for surveillance and retail use to protect your business.

East Setup. Versatile Functions.

Online Management
Set a WiFi schedule and a blacklist of domains or IPs to prevent inappropriate content and protects your kids.

VPN
Grab your files conveniently from the remote network with ZeroTier/WireGuard/ OpenVPN/IPSec/L2TP/PPTP.

DDNS
DDNS binds a domain to your network so you can always access your network without a static IP address.

High-Gain Antennas
Delivers stable performance with high-gain antennas, for decent web browsing and video streaming.

Plug in a SIM Card to Enjoy the Network

Home
Plug and play easy-to-install WiFi for every home—no rigid broadband subscription is required.

Automobile
Provide decent networks for all devices on your road journey.

Surveillance
Make sure the network is always on with the WAN + WISP + 4G backup function.

Booth
Utilized the flexible pay-as-you-go plan to equip your temporary booth with a fast network. (SIM card is not included)

A 4G WiFi router with one nano SIM slot and four Ethernet ports, providing easy-to-install flexible networks for home, office, surveillance, exhibitions, and RV scenarios.

WAN connection

Feature: Ethernet WAN
Feature: SIM card slot
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 867 Mbit/s
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band): 300 Mbit/s
WLAN data transfer rate (second band): 867 Mbit/s

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Port forwarding
Feature: Port triggering
Number of guest networks (2.4 GHz): 1
Number of guest networks (5 GHz): 1
Feature: Wireless radio
VPN support: PPTP/L2TP/OpenVPN/WireGuard/IPsec/Zerotier

Mobile network

Mobile network generation: 4G
Feature: 4G
2G standards: Edge, GSM
3G standards: WCDMA
4G standard: LTE-TDD & LTE-FDD
SIM card type: NanoSIM

Ports & interfaces

Ethernet LAN (RJ-45) ports: 4
Feature: DC-in jack

Management features

Feature: Web-based management
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: Reset button
Feature: WPS push button
Feature: MU-MIMO technology
Feature: MIMO

Security

Security algorithms: WPA, WPA2, WPA3
Feature: Guest access
Feature: Parental control
Feature: MAC address filtering
Feature: IP address filtering
Feature: IGMP snooping
Feature: DMZ support

Protocols

Feature: DHCP client
Feature: Universal Plug and Play (UPnP)

Design

Product colour: Black
LED indicators: Link, Power, System
Product type: Tabletop router

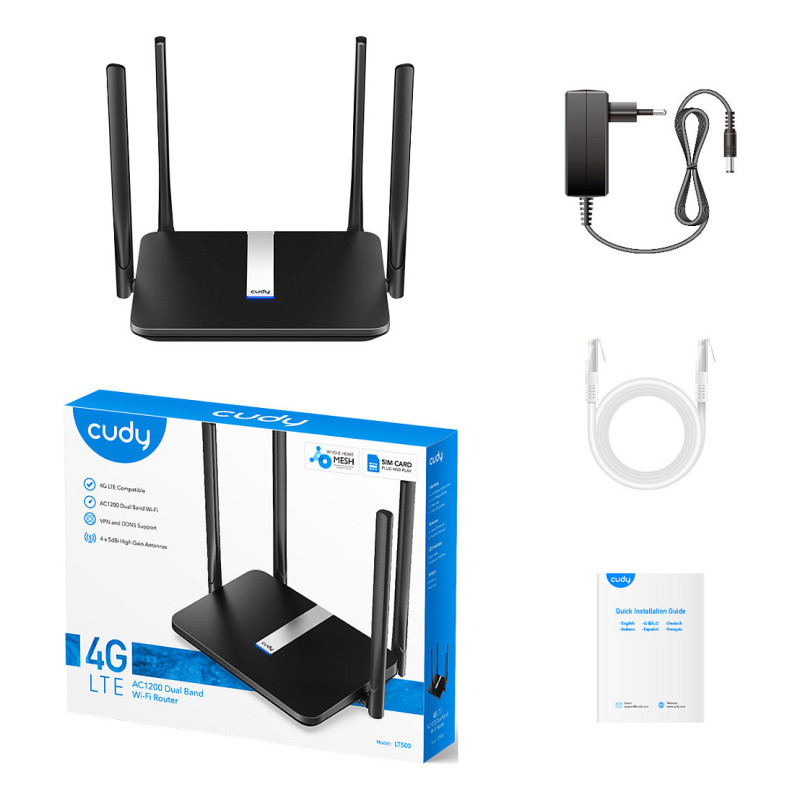

Packaging content

Cables included: LAN (RJ-45)
Feature: AC adapter included
Feature: Quick installation guide

Antenna

Antenna design: External
Antenna gain level (max): 5 dBi
Antennas quantity: 4

Features

Internal memory: 128 MB
Flash memory: 16 MB

Power

Power source type: DC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Output voltage: 12 V
Output current: 1 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

System requirements

Browser supported: Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
Windows operating systems supported: Windows 10, Windows 2000, Windows 7, Windows 8, Windows 98SE, Windows Vista, Windows XP
Mac operating systems supported: MacOS
Feature: Mac compatibility

Weight & dimensions

Width: 204.8 mm
Depth: 133.2 mm
Height: 38.3 mm
Weight: 308 g

Packaging data

Package width: 340 mm
Package depth: 275 mm
Package height: 60 mm
Package weight: 714 g
Package type: Box
Number of products included: 1 pc(s)
