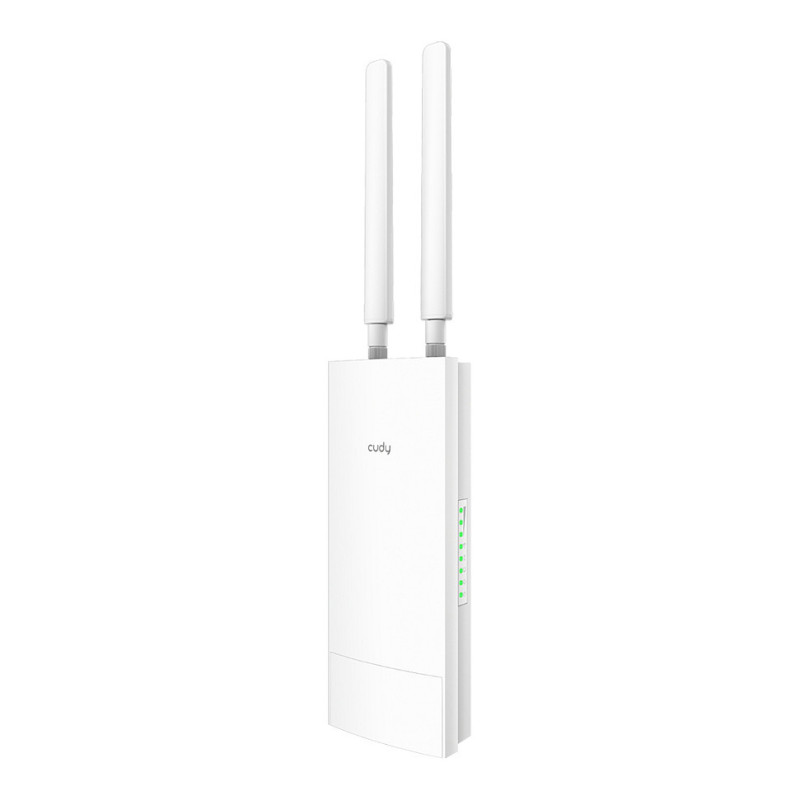

Cudy LT400 wireless router

Cudy LT400. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Mobile network generation: 4G, 2G standards: Edge, GSM, 3G standards: WCDMA. Security algorithms: WPA, WPA2, WPA3

Turn Everywhere 4G into N300 Wi-Fi
With 4G Cat.4 standards, LT400 Outdoor communicates with a 4G tower with speeds of up to 150 Mbps download and 50 Mbps upload. It features a N300 Wi-Fi, providing reliable network for web browsing,video streaming, surveilance, and POS services.

Boosted Wi-Fi Coverage with Beamforming
Tested Wi-Fi coverage performance in four different scenarios, achieved by Beamforming technology and two built-in antennas. If your space is too large for one Cudy 4G Outdoor Router to cover, you can expand your Wi-Fi coverage into a Mesh network by adding another Cudy AP.

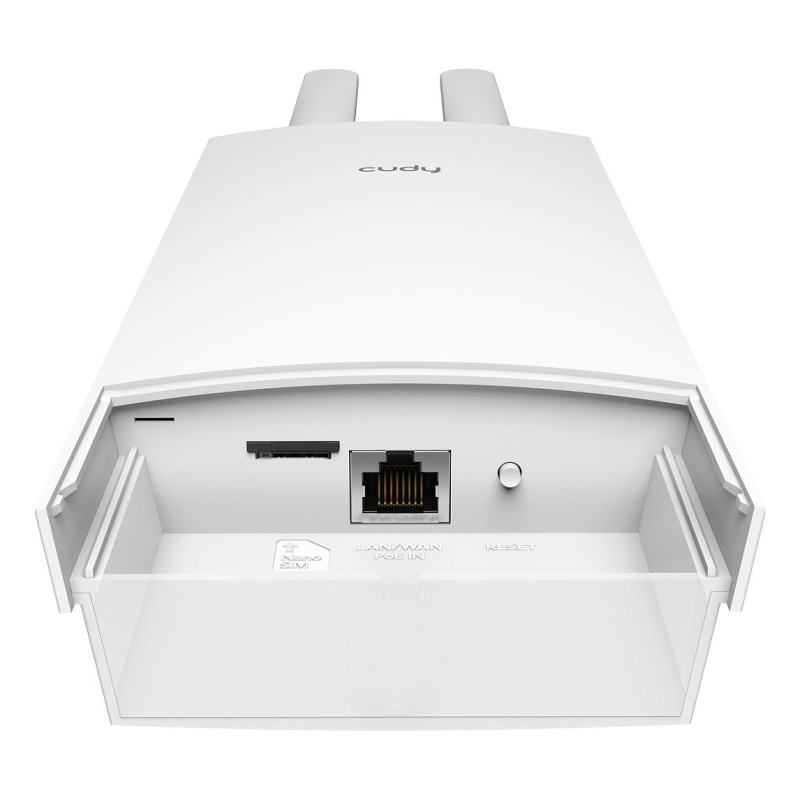

Insert a SIM, Enjoy Wi-Fi
Install Wi-Fi anywhere is as easy as plugging a SIM card and booting it up with the PoE adapter. One PoE Adapter is included in the box.

Pull Network to 100 m Away
Plug your Ethernet cable into the PoE adapter/switch to get up to 100 m of wired network reach. The extra cable is not included in the box.

Install an AP for Indoor Wi-Fi
Connect an AP to the PoE adapter to equip your cafe, home, or office with a better Wi-Fi signal. AP needs to bepurchased separately.

Install Extension Antennas
The default 4G antennas are as sensitive as a standard phone's antennas. You can still replace them with customized ones via the SMA connectors.

A Reliable Network Solution
Gigabit Solution (Gigabit speed only in Intranet, suitable for NAS users):
- Switch: Cudy GS108 (Skip this if you don't require extra wired connections)
- AP: Cudy WR1300E/WR1300/WR3000 (Choose AP mode during setup)

Budget Solution:
- AP: Cudy WR1200 (Choose AP mode during Setup)

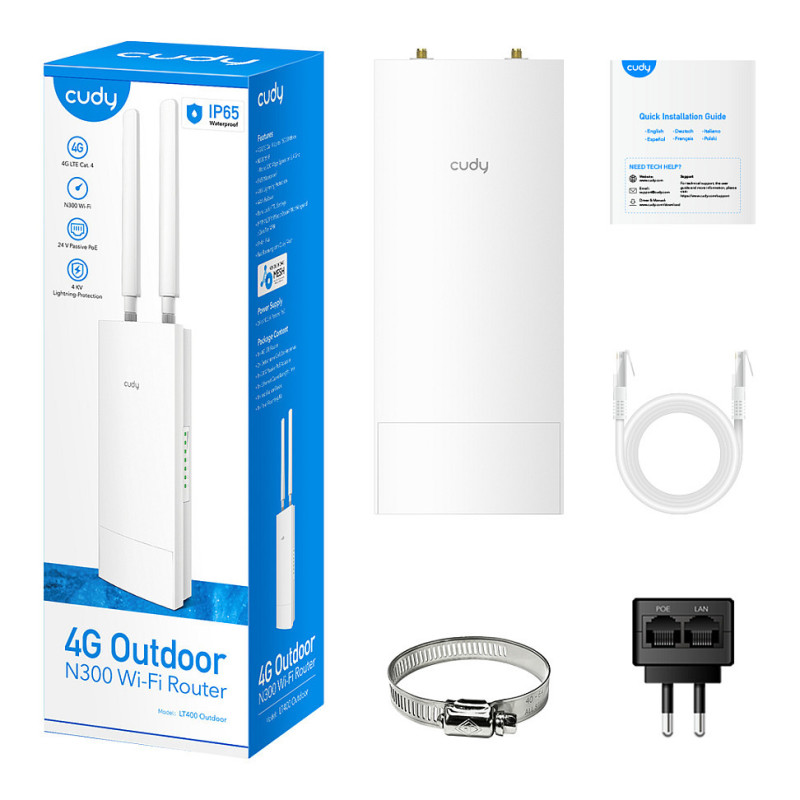

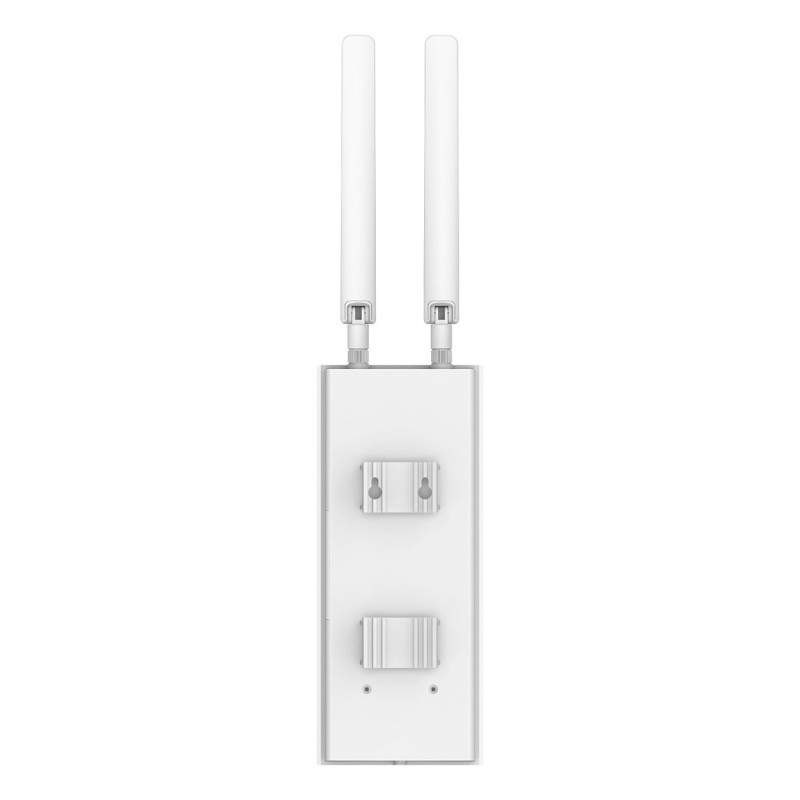

Mounting Kit Included
A mounting kit is included in the box, supporting-
- Wall-Mounting
- Pole-Mounting

A pole/wall-mounted outdoor 4G CPE with IP65 casing, one SIM slot, and accepting PoE, featuring N300 Wi-Fi and VPN features.

WAN connection

Feature: Ethernet WAN
Feature: SIM card slot
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Single-band (2.4 GHz)
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
WLAN data transfer rate (max): 300 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Modulation: 64-QAM

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Cabling technology: 10/100Base-T(X)
Feature: Port forwarding
Feature: Port triggering
Feature: Dynamic DNS (DDNS)
Number of guest networks (2.4 GHz): 1
VPN support: PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier

Mobile network

Mobile network generation: 4G
2G standards: Edge, GSM
3G standards: WCDMA
4G standard: LTE-TDD & LTE-FDD
SIM card type: NanoSIM

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Management features

Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: Wake-on-LAN ready
Feature: Reset button

Security

Security algorithms: WPA, WPA2, WPA3
Feature: Firewall
Feature: Filtering
Feature: MAC address filtering
Feature: IP address filtering
Feature: URL filtering
Feature: IGMP snooping
Feature: DMZ support

Protocols

Feature: DHCP client
Feature: Universal Plug and Play (UPnP)
Supported network protocols: IPv4 / IPv6

Design

Product colour: White
Feature: Wall mountable
International Protection (IP) code: IP65
LED indicators: WLAN
Product type: Desktop/pole router

Packaging content

Cables included: LAN (RJ-45)
Feature: PoE injector included
Feature: Mounting kit
Feature: Quick installation guide

Antenna

Antenna design: Internal & external
Antenna gain level (max): 5 dBi
Antennas quantity: 4
Feature: Detachable antenna(s)

Features

Internal memory: 64 MB
Flash memory: 8 MB

Power

Power source type: PoE
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Output voltage: 24 V
Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 100%
Storage relative humidity (H-H): 5 - 95%

System requirements

Linux operating systems supported: Yes
Mac operating systems supported: Yes

Weight & dimensions

Width: 240 mm
Depth: 100 mm
Height: 53.7 mm
Weight: 420 g

Packaging data

Package width: 324 mm
Package depth: 107 mm
Package height: 86 mm
Package weight: 794 g
