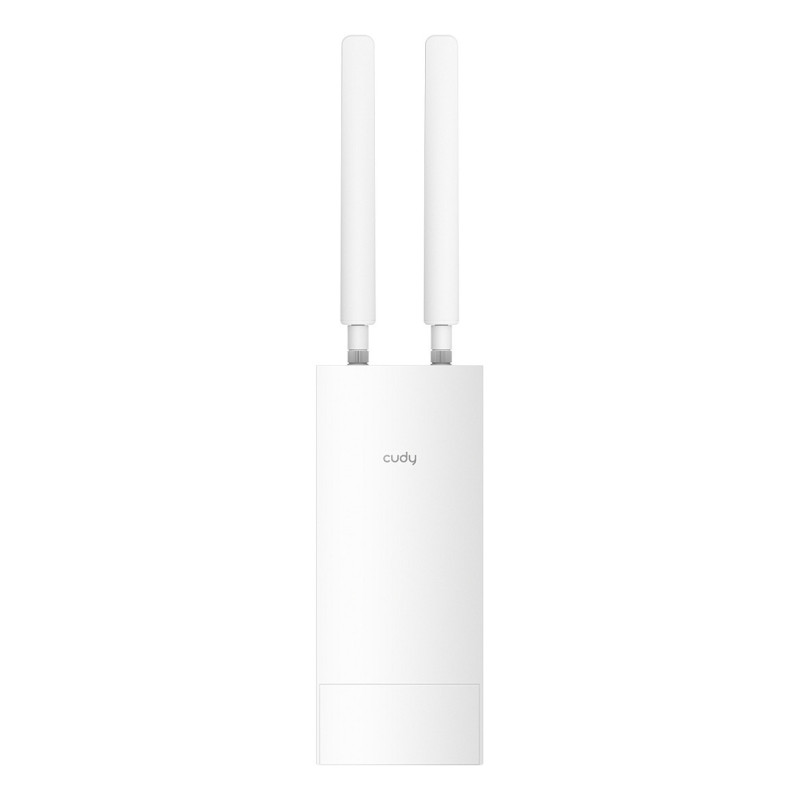

Cudy Indoor / Outdoor 4G Cat 6 AC1200 Wi-Fi Router, LT700 Outdoor 1.0 wireless router

Cudy Indoor/Outdoor 4G Cat 6 AC1200 Wi-Fi Router, LT700 Outdoor 1.0. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Mobile network generation: 4G, 2G standards: Edge, GSM, 3G standards: WCDMA. Security algorithms: WPA, WPA2, WPA3

A pole/wall-mounted outdoor 4G LTE Advanced CPE with IP65 casing, one SIM slot, and accepting PoE, featuring AC1200 Wi-Fi, Cudy Mesh main node, and VPN features.

Super-Fast 4G LTE-A and AC1200 Wi-Fi
With 2-Carrier Aggregation, LT700 Outdoor utilizes two carrier bands and provides 4G speed up to 300 Mbps download and 50 Mbps upload. With MU-MIMO and dual-band features, the AC1200 Wi-Fi shares the fast 4G with over 50 devices.

Boosted Wi-Fi Coverage with Beamforming
Tested Wi-Fi coverage performance in four scenarios, achieved by Beamforming technology and two built-in antennas. If your space is too large for one Cudy 4G Outdoor Router to cover, you can expand your Wi-Fi coverage into a Mesh network by adding another Cudy AP.

Works in Rain, Thunder, Dust, Heat, Cold
The 4G router is protected by an IP65 standard case, shielding it from rain and dust. It also features 6 kV Lightning/Surge and 8 kV ESD protection for higher reliability in thunderstorms. Its working temperatures span from -40 °F to 158 °F (-40 °C to 70 °C).

Outdoor Full-Bar 4G Signal Brings High-Quality Wi-Fi

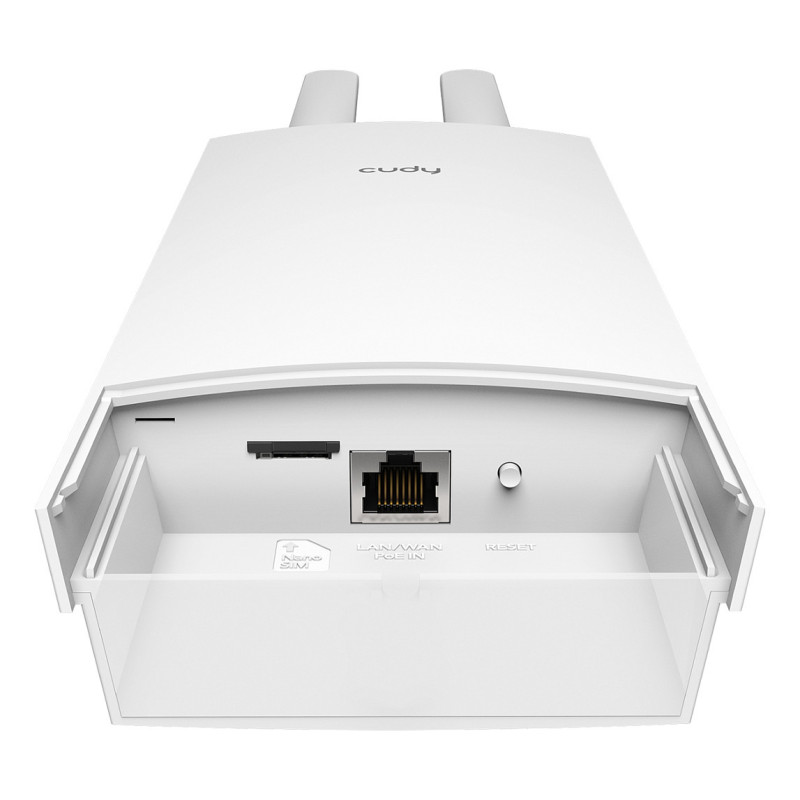

Insert a SIM, Enjoy Wi-Fi
Install Wi-Fi anywhere is as easy as plugging a SIM card and booting it up with the PoE adapter. One PoE Adapter is included in the box.

Pull Network to 100 m Away
Plug your Ethernet cable into the PoE adapter to get up to 100 m of wired network reach. The extra cable is not included in the box.

Install an AP for Indoor Wi-Fi
Connect an AP to the PoE adapter to equip your cafe, home, or office with a better Wi-Fi signal. AP needs to be purchased separately.

Install Extension Antennas
The default 4G antennas are as sensitive as a standard phone's antennas. You can still replace them with customized ones via the SMA connectors.

A Quick Guide to Network Installation

A Reliable Network Solution
Gigabit Solution (Gigabit speed only in Intranet, suitable for NAS users):
- Switch: Cudy GS108 (Skip this if you don't require extra wired connections)
- AP: Cudy WR1300E/WR1300/WR3000 (Choose AP mode during setup)

Budget Solution:
- AP: Cudy WR1200 (Choose AP mode during Setup)

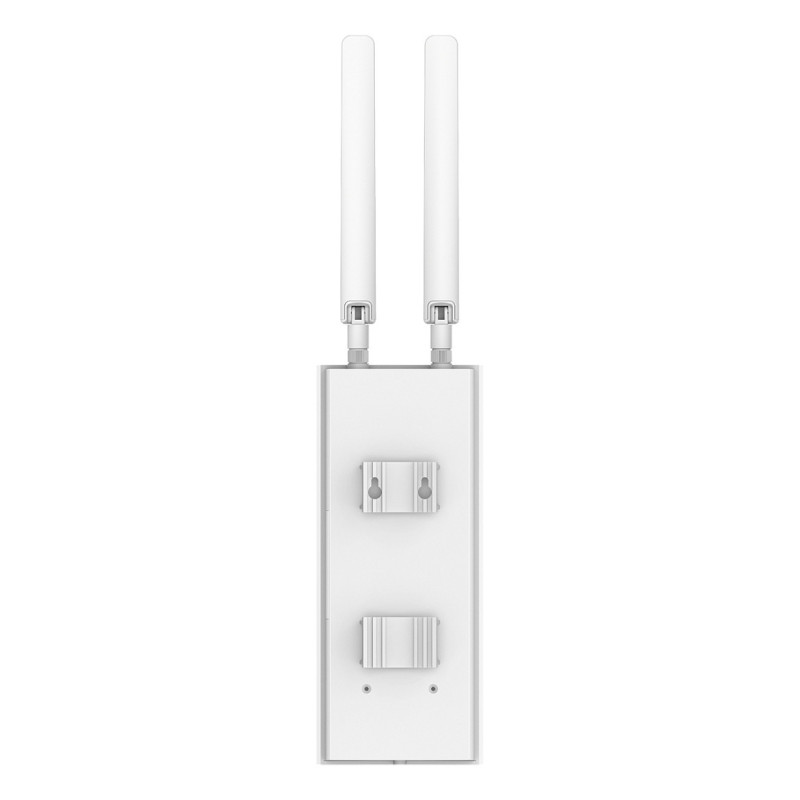

Mounting Kit Included
A mounting kit is included in the box, supporting-
- Wall-Mounting
- Pole-Mounting

Cudy App
Manage your network from your phone. This model supports cloud remote control and local control via the Cudy App.

WAN connection

Feature: Ethernet WAN
Feature: SIM card slot
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 867 Mbit/s
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band): 300 Mbit/s
WLAN data transfer rate (second band): 867 Mbit/s

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Networking standards: IEEE 802.3af, IEEE 802.3at
Feature: Port forwarding
Feature: Port triggering
Feature: Dynamic DNS (DDNS)

Mobile network

Mobile network generation: 4G
2G standards: Edge, GSM
3G standards: WCDMA
4G standard: LTE-TDD & LTE-FDD
SIM card type: NanoSIM
Feature: Short Message Service (SMS)

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Management features

Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: Wake-on-LAN ready
Feature: Reset button
Feature: MU-MIMO technology
Feature: MIMO

Security

Security algorithms: WPA, WPA2, WPA3
Feature: DMZ support

Protocols

Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)
Supported network protocols: IPv4 / IPv6

Design

Product colour: White
Feature: Wall mountable
International Protection (IP) code: IP65
LED indicators: System, WLAN
Product type: Desktop/pole router

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC)

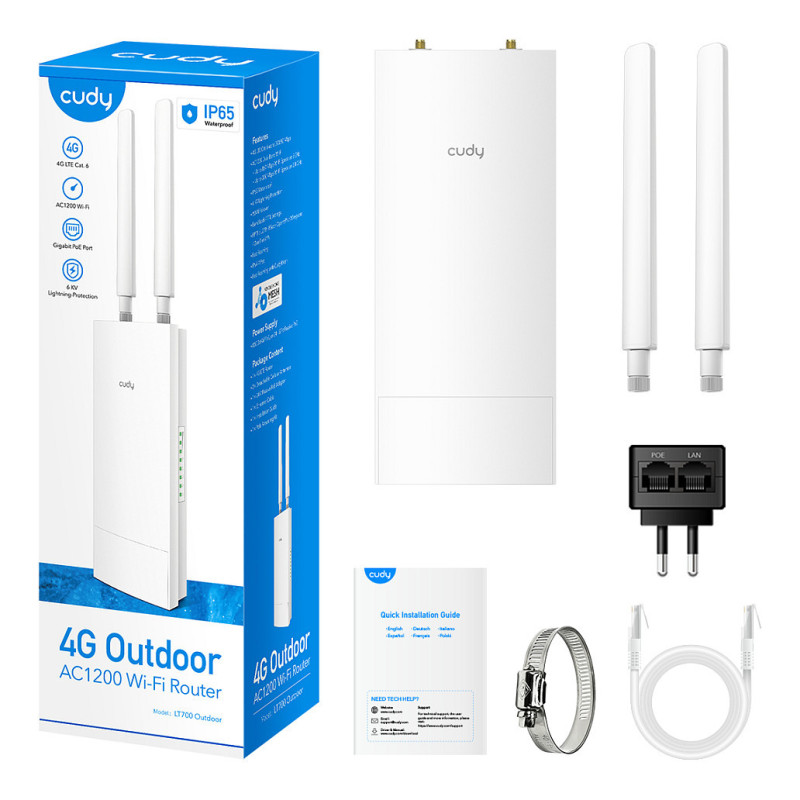

Packaging content

Cables included: LAN (RJ-45)
Feature: PoE injector included
Feature: Mounting kit
Feature: Quick installation guide

Antenna

Antenna design: Internal & external
Antenna connector type: SMA
Antenna gain level (max): 5 dBi
Antennas quantity: 4
Feature: Detachable antenna(s)

Features

Internal memory: 128 MB
Flash memory: 16 MB

Power

Power source type: PoE
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Output voltage: 48 V

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 100%
Storage relative humidity (H-H): 5 - 90%

System requirements

Linux operating systems supported: Yes
Mac operating systems supported: Yes

Weight & dimensions

Width: 100 mm
Depth: 53.7 mm
Height: 240 mm
Weight: 466.5 g

Packaging data

Package width: 324 mm
Package depth: 107 mm
Package height: 86 mm
Package weight: 869 g
Number of products included: 1 pc(s)
