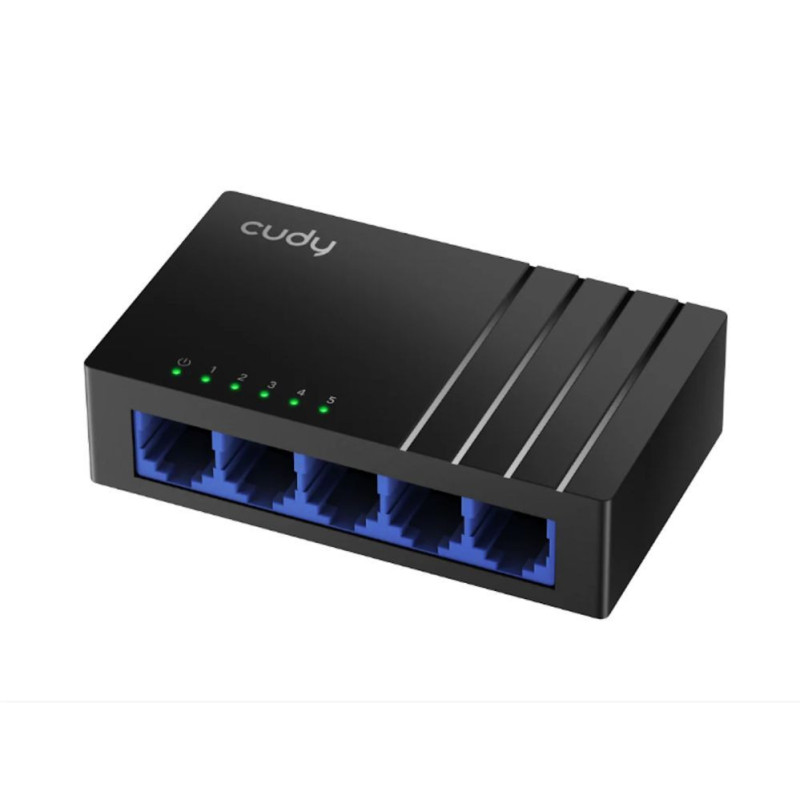

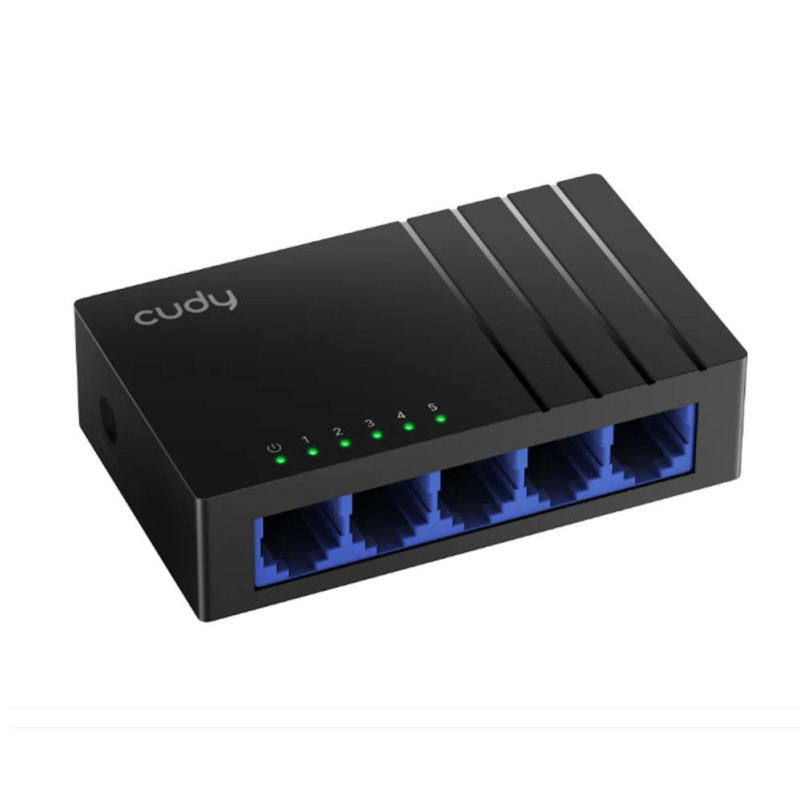

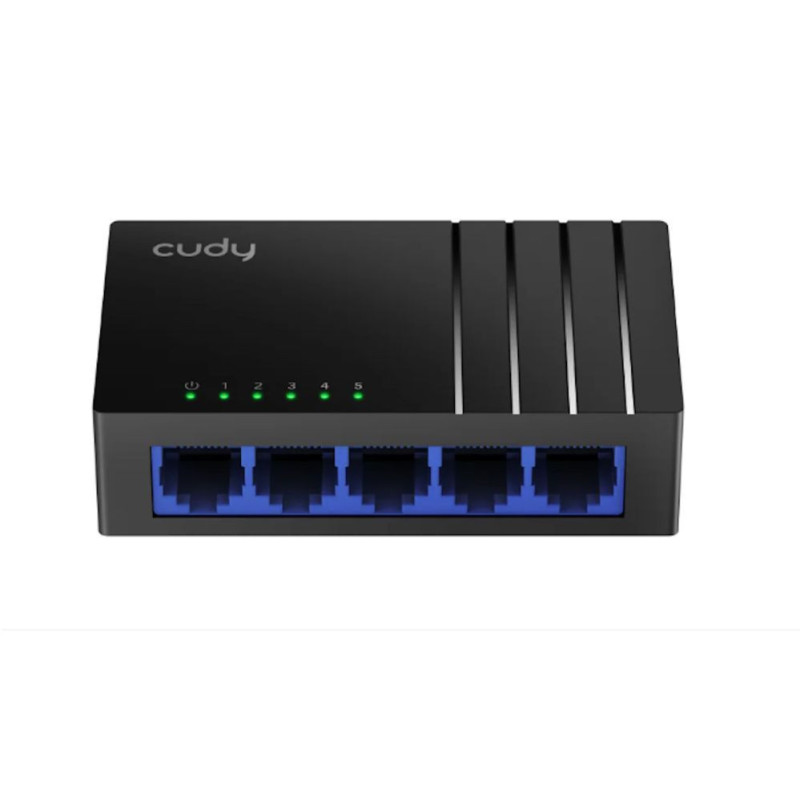

Cudy GS105D NetSwitch 5-Port Gigabit Switch IGMP Snooping QoS Loop Prevention Plastic Case Black

EAN: 6971690790097

The Cudy GS105D NetSwitch is a compact and high-efficiency 5-port unmanaged Gigabit switch, designed to expand your wired network quickly and reliably. It offers five auto-negotiating 10/100/1000 Mbps ports, with intelligent features like IGMP snooping, QoS prioritization, and loop prevention, all housed in a durable fanless plastic case.

Ideal for home networks, IP surveillance setups, streaming boxes, VoIP phones, or office expansions, the GS105D delivers plug-and-play Gigabit switching with smart enhancements — ensuring performance, stability, and simplicity.

Key Features & Benefits
5× Gigabit Ethernet Ports
Each RJ45 port supports 10/100/1000 Mbps speeds with full-duplex and auto-MDI/MDIX — no crossover cables needed.
IGMP Snooping Support
Efficient multicast traffic management makes this switch ideal for IPTV or multi-stream video over LAN.
QoS (Quality of Service)
Prioritizes latency-sensitive traffic like VoIP and video for a smoother user experience.
Loop Prevention
Prevents network disruptions caused by cable loops — protecting your environment from broadcast storms.
Fanless Design
Silent operation with low power consumption, suitable for noise-sensitive areas like bedrooms or conference rooms.
Plastic Case

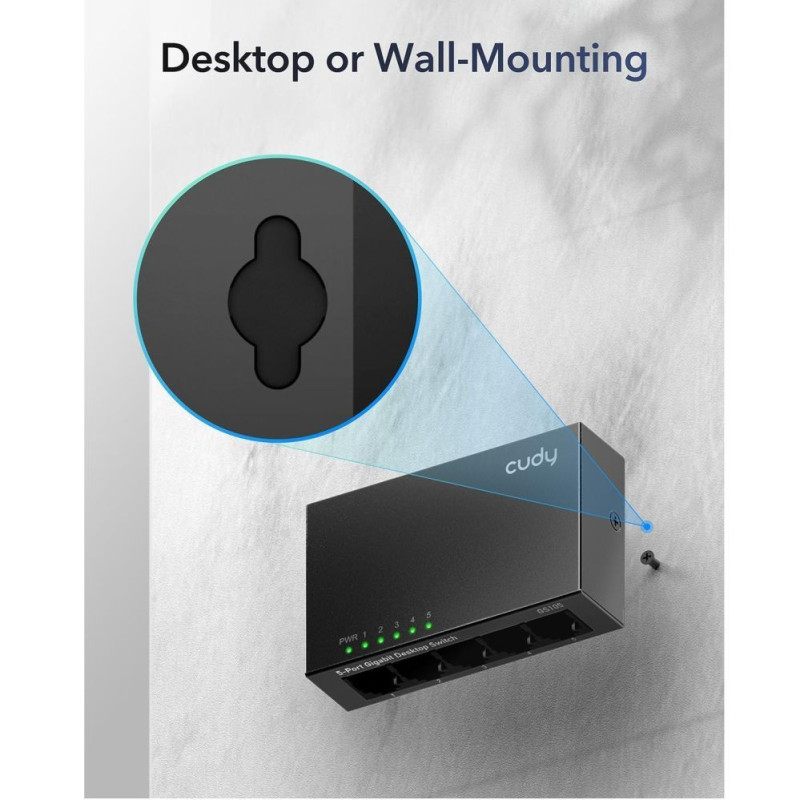

Lightweight and compact with passive ventilation — perfect for desktops or wall mounting.

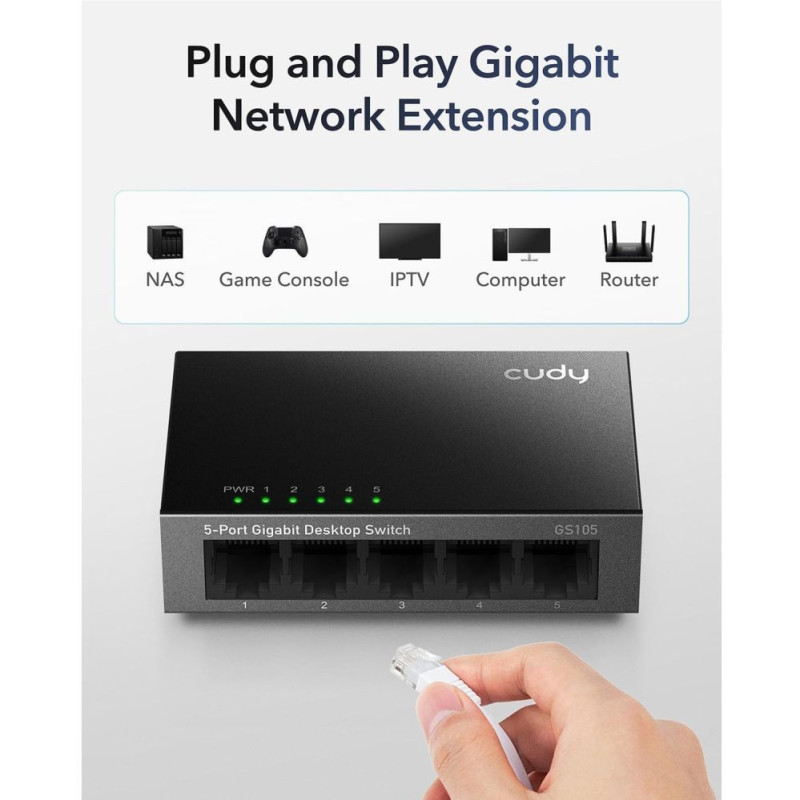

Plug & Play Simplicity
No setup required. Works instantly with routers, access points, NAS, PCs, TVs, and printers.
Technical Specifications
Model: Cudy GS105D

Ports: 5× RJ45 (10/100/1000 Mbps auto-negotiation)

Switching Capacity: 10 Gbps

MAC Address Table: 2K entries

Packet Buffer: 1 Mbit

Standards: IEEE 802.3 / 802.3u / 802.3ab / 802.3x

Advanced Functions:

IGMP Snooping (v1/v2/v3)

Loop Prevention

QoS (Port-based priority)

Case Material: Plastic

Cooling: Passive (fanless)

Color: Black

Power Supply: DC 5V 1A

Net Weight: ~92 g

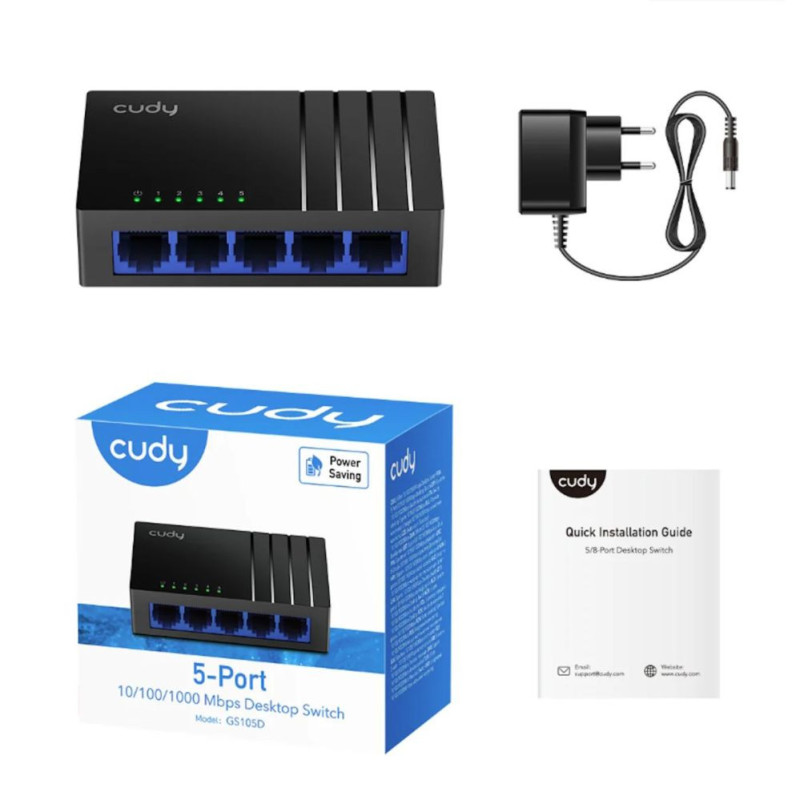

What's Included
Cudy GS105D 5-Port Switch

Power Adapter (5V/1A)

Quick Installation Guide

Why Choose the Cudy GS105D?
Smart enhancements (QoS, IGMP, Loop Guard) in a budget-friendly switch
Ideal for streaming setups, VoIP, smart TVs, and home servers
Ultra-silent fanless operation — great for home and office use
True plug-and-play with no configuration needed
Compact size and clean aesthetics fit easily into any space
