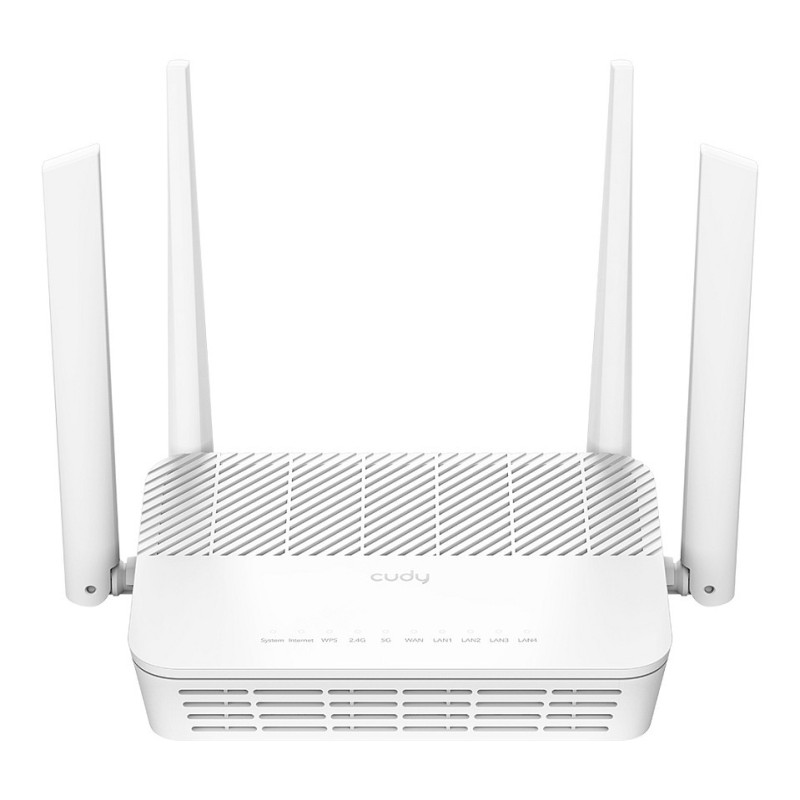

Cudy AX3000 wireless router

Cudy AX3000. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 2402 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Number of data streams: 2x2. Security algorithms: WPA, WPA2, WPA3

Super-Fast Wi-Fi in Every Corner
Super-Fast. Super Responsive.
Equipped with the highest 160 MHz bandwidth in Wi-Fi 6 and 1024-QAM, this router go up to 3 Gbps wirelessly, more than 2.5X faster than the last-gen AC 2x2 WiFi router.

Broader Coverage with More Streams
Five streams—3 in 5 GHz and 2 in 2.4 GHz—enhance the agility to navigate signals through obstacles. In addition, the high-gain antennas and Beamforming boost the signal to every corner of your home.

More Devices, Lower Latency
Easier Combos in Games
In addition to the 2T2R structure, one aditional 5 GHz stream enhance the agility to navigate signals through obstacles. The high-gain antennas and Beamforming boost the signal to every corner of your home.

Connect More. Stay Fast.
Designed to connect 200 devices, with a maximum capacity of 512 devices, this router provides a more efficient network that loads faster for more without slowing down performance.

Versatile Functionalities
VPN Server and Client
Enables work from home and secure remote access with the support of popular VPN protocols. (Requires firmware newer than 1.16.1)

DNS Encryption
Protects your browsing record from leaking with DNS over TLS service with Cloudflare, Google, and Quad9.

Cudy Mesh Ready
Supports Cudy Mesh to enable seamless roaming for the whole home with other Cudy Mesh devices.

IPTV
Configure a specific network port for IPTV transmission to deliver television services from the network operator to your TV.

Parental Controls
Set Wi-Fi time schedules and block inappropriate websites to protect your loved ones. You can create custom profiles to easily manage multiple devices.

Cudy App
Manage your network from your phone. This model supports cloud remote control and local control via the Cudy App.

WAN connection

Feature: Ethernet WAN
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max): 2402 Mbit/s
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band): 574 Mbit/s
WLAN data transfer rate (second band): 2402 Mbit/s
Modulation: 1024-QAM, OFDMA

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Feature: Port forwarding
Feature: Port triggering
Number of guest networks (2.4 GHz): 1
Number of guest networks (5 GHz): 1
VPN server: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP

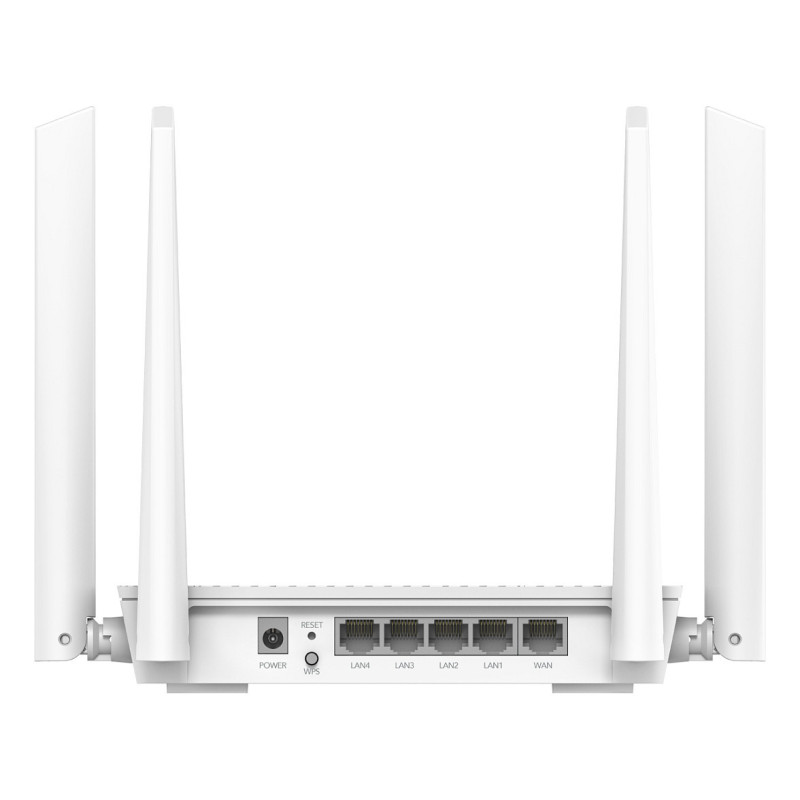

Ports & interfaces

Ethernet LAN (RJ-45) ports: 4
Feature: DC-in jack

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Wake-on-LAN ready
Feature: Reset button
Feature: WPS push button
Feature: Intelligent Mesh technology
Feature: MU-MIMO technology
Feature: MIMO
Number of data streams: 2x2

Security

Security algorithms: WPA, WPA2, WPA3
Feature: Firewall
Feature: Guest access
Feature: Stateful Packet Inspection (SPI)
Feature: Schedule access
Feature: DoS attack prevention
Feature: Parental control
Feature: Filtering
Feature: MAC address filtering
Feature: IP address filtering
Feature: URL filtering
Feature: IGMP snooping
Feature: DMZ support

Protocols

Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)

Design

Product colour: White
Feature: Wall mountable
Feature: Indication light
LED indicators: LAN, System, WAN, WLAN, WPS
Product type: Desktop/pole router

Certificates

Certification: FCC, CE

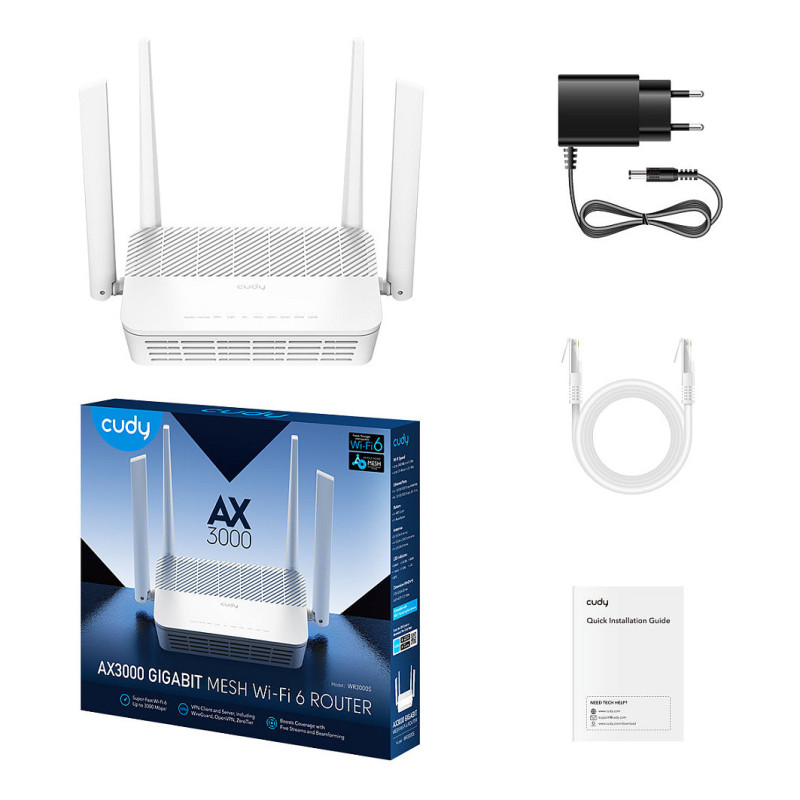

Packaging content

Cables included: LAN (RJ-45)
Feature: AC adapter included
Feature: Manual

Antenna

Antenna design: External
Antenna gain level (max): 5.3 dBi
Antennas quantity: 4

Features

Feature: Built-in processor
Processor architecture: ARM Cortex-A53
Processor frequency: 1300 MHz
Processor cores: 2
Internal memory: 256 MB
Internal memory type: DDR3
Flash memory: 128 MB
Number of simultaneously connected devices (max): 200

Power

Power source type: DC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Output voltage: 12 V
Output current: 1 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 173 mm
Depth: 123.8 mm
Height: 33 mm
Weight: 329.4 g

Packaging data

Package width: 304 mm
Package depth: 54 mm
Package height: 268 mm
Package weight: 725 g
Package type: Box
Number of products included: 1 pc(s)
