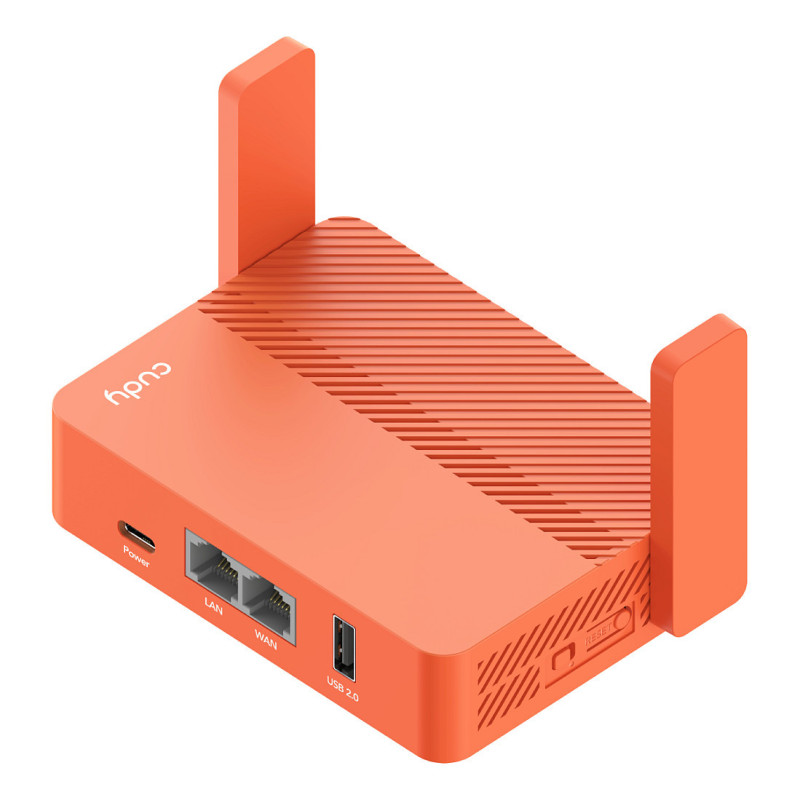

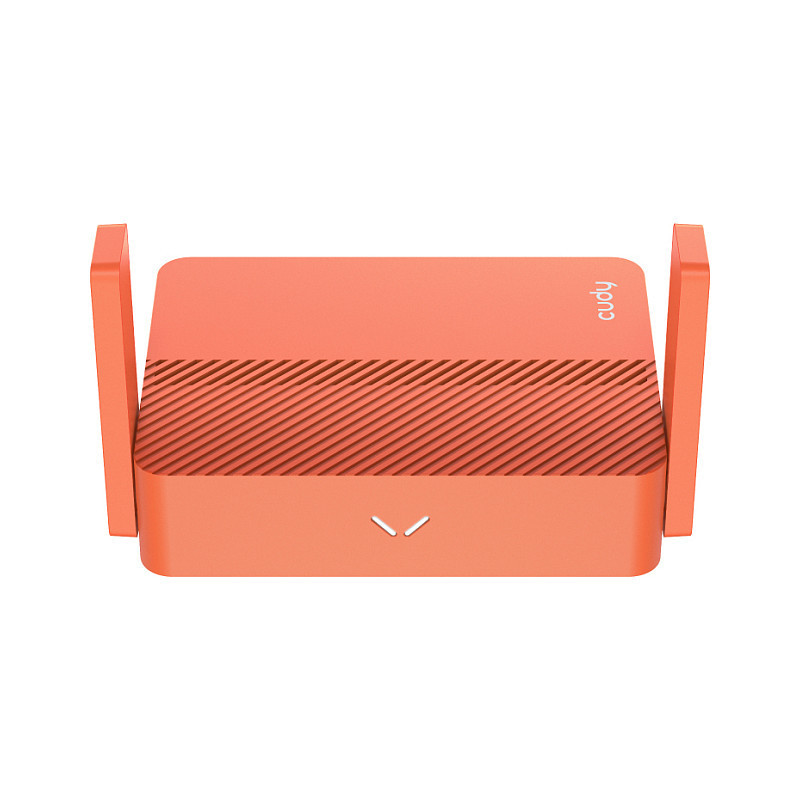

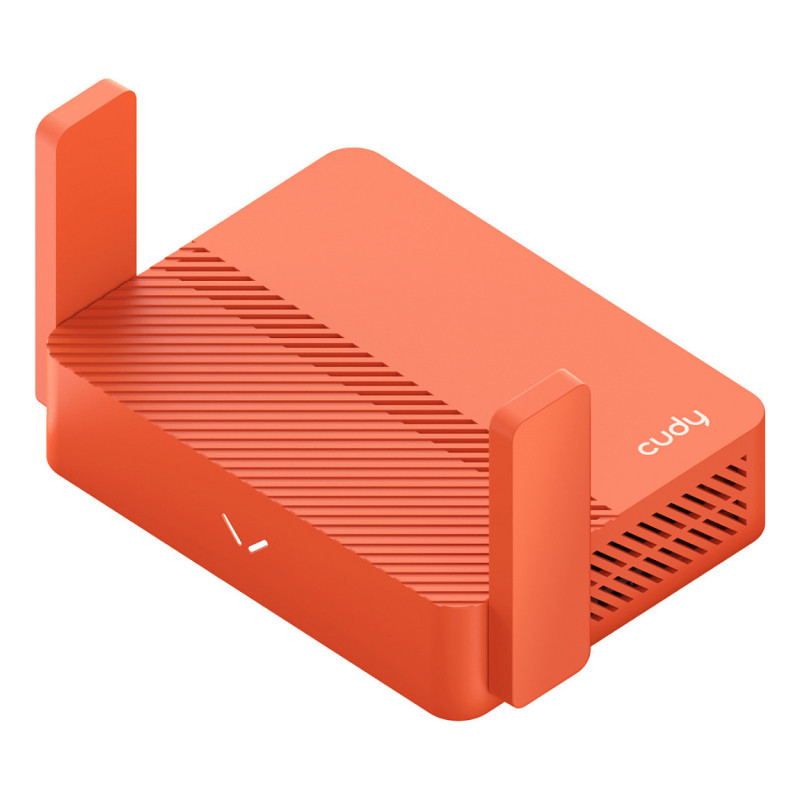

Cudy AC1200 wireless router

Cudy AC1200. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Security algorithms: WPA, WPA2, WPA3. Product type: Portable router, Product colour: Orange

Fast, Full-Bar Wi-Fi that's Only for You
Plug in a wired connection to create your private dual-band Wi-Fi for more stable online meetings during your business trips. With 128 MB of large RAM, TR1200 easily connects over 20 devices with a maximum 128-device capacity.

Versatile VPN for Boundless Application

VPN Server and Client
Six popular protocols encrypt the data tunnel in the way you prefer, either when connecting as a client or hosting a VPN server.

Compatible with 50+ Providers
Built-in WireGuard and OpenVPN VPNs allow you to share your commercial VPN with all connected devices.

Assign VPN to Specific Devices
Out of the security or performance concerns, you can choose specific devices to use the VPN in the device management panel.

No Public IP? No Problem
Hosting a VPN server usually requires a public IP. ZeroTier enables you to host a server even if you do not have a public IP in hotels or cafes.

DNS over TLS Protects Browsing Data from Leaking

Without DNS over TLS
Hosting a VPN server usually requires a public IP. ZeroTier enables you to host a server even if you do not have a public IP in hotels or cafes.

With DNS over TLS
Your website lookup requests will be encrypted and handled by trusted DNS providers including Cloudflare, Google, and Quad9. The Quad9 has made no-logging claims, so literally, no one can know which websites you have visited.

A Protection Layer Between Your Data and Public Wi-Fi
Choose the router or WISP mode to improve security when you connect to public Ethernet or Wi-Fi correspondingly. It also carries AP/RE/Client modes, plus support for Cudy Mesh, for various scenarios.

Pocket-Sized Mighty Functions

Lighter, Smaller than Phones
Weighing only 99.9 g (3.52 oz.) with a pocket-size, TR1200 is a travel-friendly network companion.

Power with your Laptop
Power it with your laptop or phone charger through the USB-C Power Jack. The third-party power supply needs to be 5V / 2A or equipping PD.

Click! Your VPN is On.
A configurable switch allows you to quickly toggle the VPN, without needing to enter the config page.

Host Your Own NAS
Plug in your drive to host your own cloud station with Samba protocol. Third-party software "X-plore" is required for Android systems.

WAN connection

Feature: Ethernet WAN
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 867 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band): 300 Mbit/s
WLAN data transfer rate (second band): 867 Mbit/s

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Cabling technology: 10/100Base-T(X)
Feature: Port forwarding
Feature: Port triggering
Feature: Dynamic DNS (DDNS)
Number of guest networks (2.4 GHz): 1
Number of guest networks (5 GHz): 1
Feature: USB sharing
VPN support: Zerotier/Wireguard/OpenVPN/IPSec/L2TP/PPTP

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: USB port
USB 2.0 ports quantity: 1
Feature: USB charging port

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Reset button
Feature: MU-MIMO technology
Feature: MIMO

Security

Security algorithms: WPA, WPA2, WPA3
Feature: Firewall
Feature: Filtering
Feature: MAC address filtering
Feature: IP address filtering
Feature: URL filtering
Feature: IGMP snooping
Feature: DMZ support

Protocols

Feature: DHCP client

Design

Product colour: Orange
Product type: Portable router

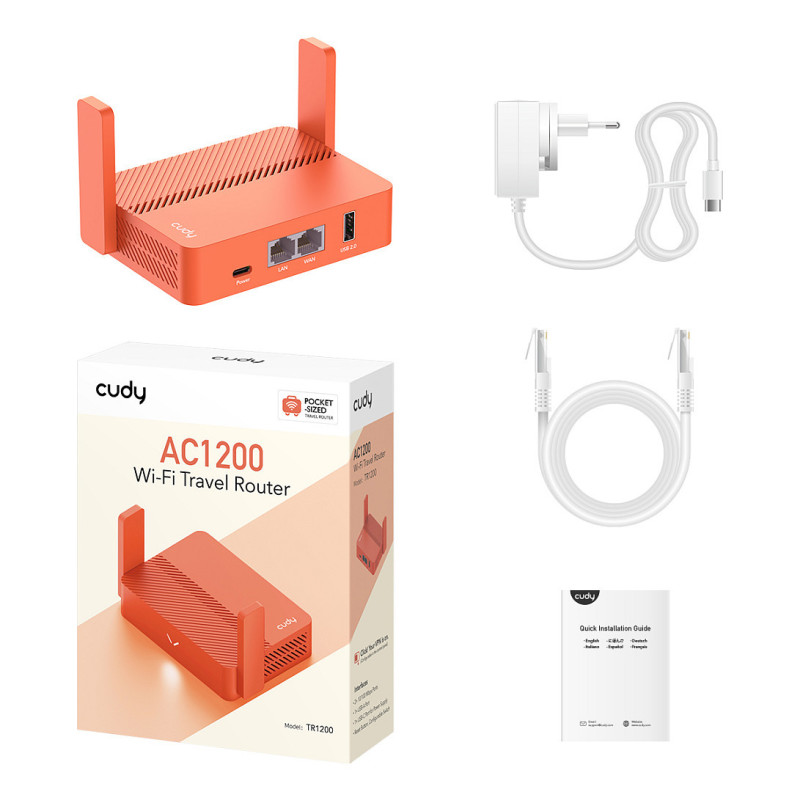

Packaging content

Cables included: LAN (RJ-45)
Feature: AC adapter included
Feature: Quick installation guide

Antenna

Antenna design: External
Antennas quantity: 2
Antenna direction type: Omni-directional

Power

Power source type: USB
Output voltage: 5 V
Output current: 3 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 118 mm
Depth: 80 mm
Height: 27.5 mm
Weight: 101.8 g

Packaging data

Package width: 176 mm
Package depth: 140.5 mm
Package height: 56 mm
Package weight: 302.8 g
Number of products included: 1 pc(s)
