Cudy 5G SA / NSA AX3000 Wi-Fi 6 Router, P4 1.0 wireless router

Cudy 5G SA/NSA AX3000 Wi-Fi 6 Router, P4 1.0. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 3400 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Mobile network generation: 5G, 3G standards: WCDMA, 4G standard: LTE-TDD & LTE-FDD. Number of data streams: 4x4

A 5G WiFi 6 router employing the 3GPP Release 16 standard, with a max 3.4 Gbps download speed. It features dual Qualcomm chipsets, one SIM slot, and a high-capacity AX3000 WiFi 6.

Qualcomm X62 5G Modem

5G. Max 3.4 Gbps Download.
Equipped with the advanced 5G Rel. 16 standard, P4 pushes cellular download speed up to 3.4 Gbps that rivals a broadband.

Qualcomm Wi-Fi 6 Chipset

150% Faster Wi-Fi Speed
The super-fast AX3000 Wi-Fi 6 built on powerful Qualcomm dual-core CPU provides high-capacity connectivity. Stream 4K live feed and download at full speed with ease.

Plug in a SIM Card to Enjoy the Network

Home
Plug and play easy-to-install WiFi for every home—no rigid broadband subscription.

Automobile
Provide decent networks for all devices on your road journey.

Surveillance
Make sure the network is always on with the backup function.

Booth
Utilize the flexible pay-as-you-go SIM card plan to equip your temporary booth with a fast network. (SIM card is not included)

Multiple Ports

Abundant Wired Connectivity

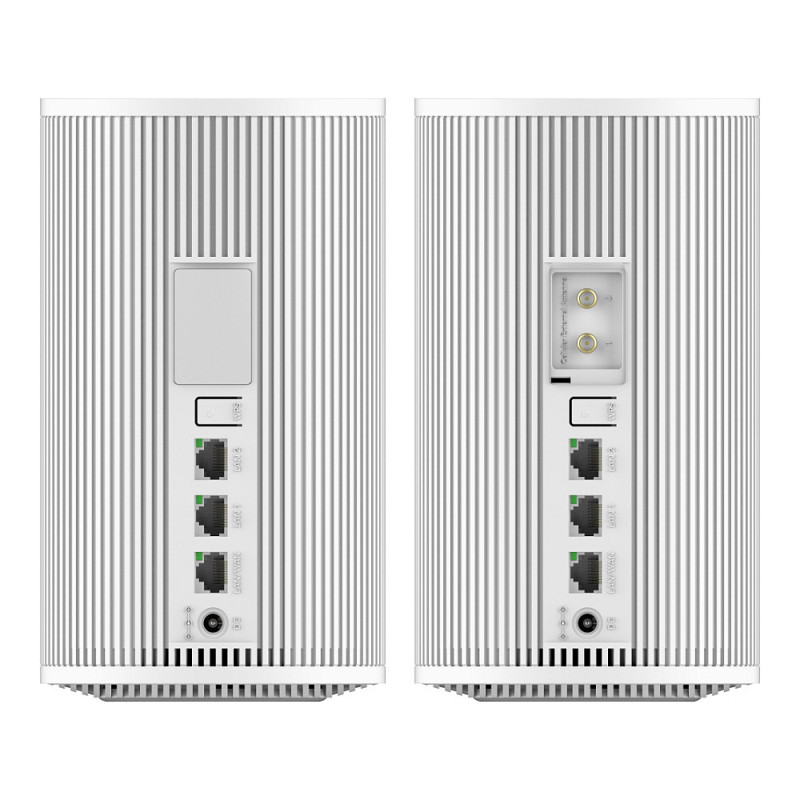

Three Gigabit Ethernet ports provide stable wired network sharing. Two SMA connectors allow you to install customized extension cellular antennas.

Tools for a Customized Network

Secure VPN Access
In addition to the management via Cudy cloud, this router supports multiple VPN protocols to enable remote Work-From-X, or sharing a commercial VPN for all.

Keep You Connected
Set the WAN/LAN port as WAN mode, connect your network to broadband service, then back it up with a 5G connection.

WAN connection

Feature: Ethernet WAN
Feature: SIM card slot
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max): 3400 Mbit/s
WLAN data transfer rate (first band): 574 Mbit/s
WLAN data transfer rate (second band): 2402 Mbit/s
Modulation: 1024-QAM, OFDMA
Channel bandwidth: 120 MHz

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Feature: Port forwarding
Feature: Port triggering
VPN server: Y
Feature: Ping check
Feature: PPPoE/PPTP/L2TP pass-through

Mobile network

Mobile network generation: 5G
3G standards: WCDMA
4G standard: LTE-TDD & LTE-FDD
5G standard: Sub6, NR
SIM card type: NanoSIM + eSIM

Ports & interfaces

Ethernet LAN (RJ-45) ports: 3
Feature: DC-in jack

Management features

Feature: Quality of Service (QoS) support
Feature: Wake-on-LAN ready
Feature: Reset button
Feature: WPS push button
Feature: MIMO
Number of data streams: 4x4

Security

Security algorithms: WPA, WPA2, WPA3
Feature: Firewall
Feature: Guest access
Feature: Parental control
Feature: DDoS protection
Feature: Filtering
Feature: MAC address filtering
Feature: IP address filtering
Feature: System event log
Feature: IGMP snooping
Feature: DMZ support

Protocols

Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)

Design

Product colour: White
LED indicators: Power, WLAN
Product type: Desktop/pole router

Certificates

Compliance certificates: Federal Communications Commission (FCC), CE

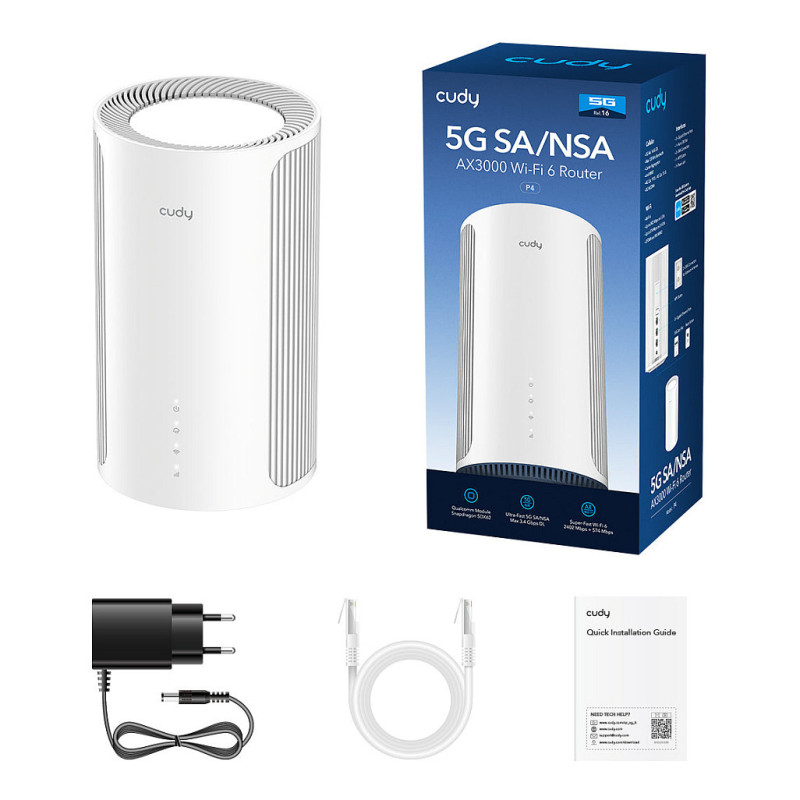

Packaging content

Cables included: LAN (RJ-45)
Feature: AC adapter included
Feature: Quick installation guide

Antenna

Antenna design: Internal
Antenna connector type: SMA
Antennas quantity: 6

Features

Feature: Built-in processor
Processor architecture: ARM Cortex-A53
Processor frequency: 1000 MHz
Processor cores: 2
Internal memory: 512 MB
Internal memory type: DDR3
Flash memory: 128 MB
Languages support: Multi
Feature: Firmware upgradeable

Power

Power source type: DC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Output voltage: 12 V
Output current: 2.5 A
Power consumption (typical): 21.7 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 116 mm
Depth: 116 mm
Height: 202 mm
Weight: 656 g

Packaging data

Package width: 313 mm
Package depth: 152 mm
Package height: 132 mm
Package weight: 1.12 kg

Logistics data

Master (outer) case width: 554 mm
Master (outer) case length: 321 mm
Master (outer) case height: 332 mm
Master (outer) case gross weight: 9.8 kg

Other features

Number of users: 256 user(s)
