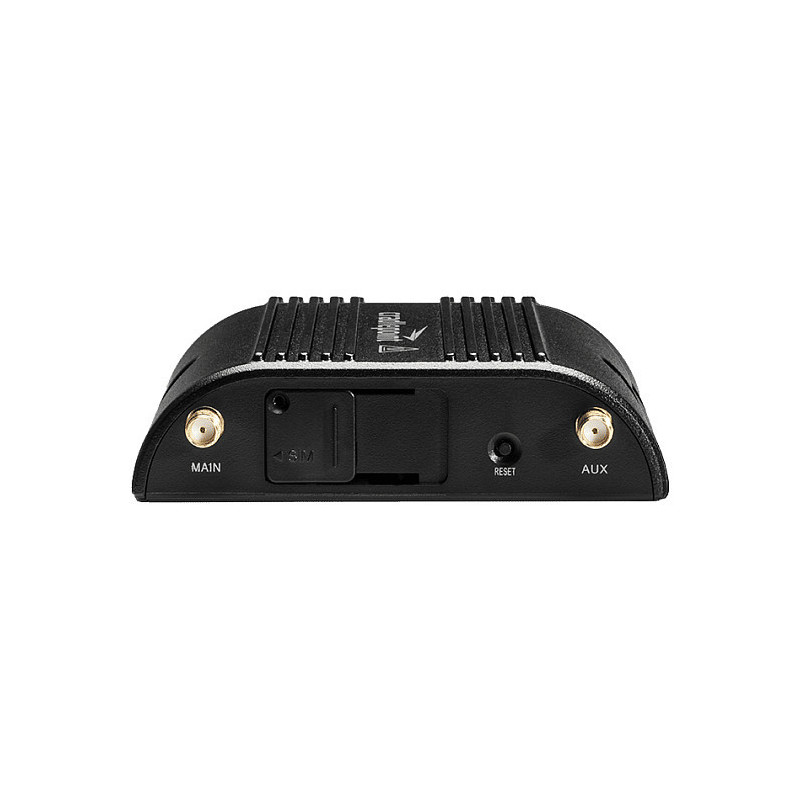

Cradlepoint IBR200-10M + NetCloud Essentials wireless router

Cradlepoint IBR200-10M + NetCloud Essentials. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 100 Mbit/s. Ethernet LAN interface type: Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Mobile network generation: 4G, 3G standards: HSPA+, UMTS, 4G standard: LTE. Security algorithms: 802.1x RADIUS

IBR200 Series
Semi-ruggedized, compact 4G LTE router for IoT applications

The purpose-built router
Cradlepoint endpoints provide industry-leading, LTE connectivity as well as Ethernet and Wi-Fi. These purpose-built endpoints are sold as part of a NetCloud Package that includes a subscription to the NetCloud Service, continuous modem and software feature enhancements, 24×7 support, on-demand training, and limited lifetime warranty.

WAN connection

Feature: Ethernet WAN
Feature: SIM card slot
Feature: 3G/4G USB modem compatibility
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Single-band (2.4 GHz)
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
WLAN data transfer rate (max): 100 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band): 100 Mbit/s

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Cabling technology: 10/100Base-T(X)
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Automatic channel selection

Mobile network

Mobile network generation: 4G
Feature: 3G
Feature: 4G
3G standards: HSPA+, UMTS
4G standard: LTE
4G bands supported: 700,850,1700,2100 MHz
3G bands supported: 850,1700,1900,2100 MHz

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: USB port
USB 2.0 ports quantity: 1
Feature: DC-in jack

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Reset button

Security

Security algorithms: 802.1x RADIUS
Feature: Guest access
Feature: Filtering
Feature: MAC address filtering
Feature: IP address filtering

Protocols

Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)

Design

Product colour: Black
Housing material: Metal
Feature: Wall mountable
Feature: Indication light
LED indicators: LTE, Power, Status, WLAN
Product type: Portable router

Certificates

Certification: PTCRB, FCC, IC, Carrier

Packaging content

Feature: Antenna included
Feature: Quick installation guide

Antenna

Antenna design: External
Antenna connector type: SMA
Antennas quantity: 2
Feature: Detachable antenna(s)

Features

Safety: UL/CUL

Power

Power source type: DC
Output voltage: 12 V
Power consumption (typical): 3.6 W
Feature: External power adapter

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 94.5 mm
Depth: 76.5 mm
Height: 24.5 mm
Weight: 175 g

Packaging data

Package type: Box

Logistics data

Harmonized System (HS) code: 85176990
