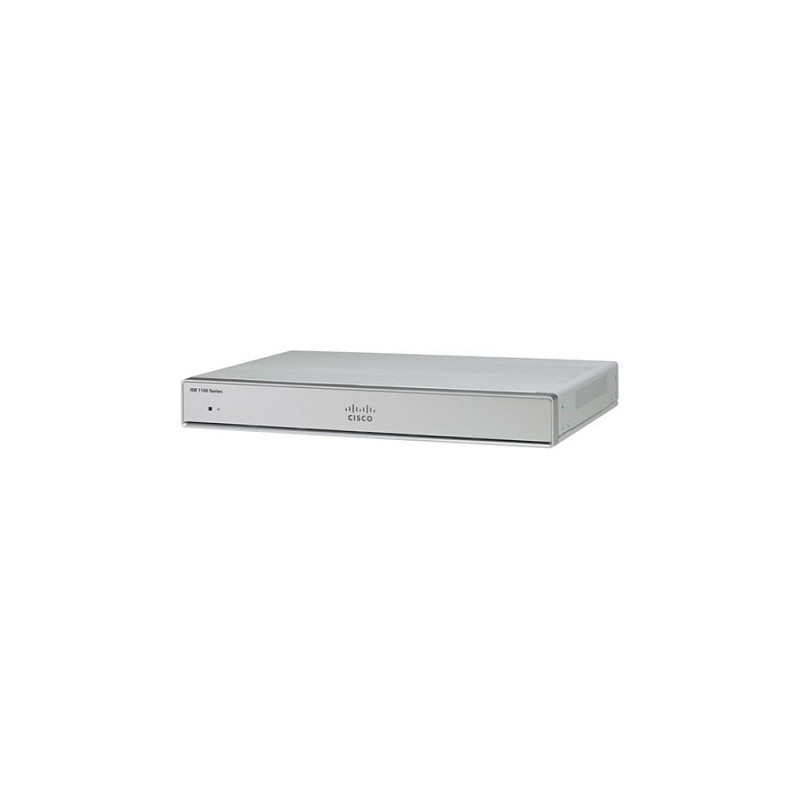

Cisco C1121-4P wired router

Cisco C1121-4P. Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X), Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: 802.1x RADIUS, IPSec, WPA2-AES, WPA2-RADIUS. Flash memory: 4000 MB, Internal memory: 4000 MB. Product colour: Silver. Power consumption (typical): 18.8 W, Power consumption (max): 66 W, Power source type: DC

Cisco 1000 Series Integrated Services Routers
The Cisco® 1000 Series Integrated Services Routers (ISR 1000 Series) portfolio has been steadily expanding over the years to provide our customers with the flexibility they need. The ISR 1000 Series combines routing, switching, Wi-Fi, integrated security, and DSL and LTE uplink connectivity options in a single, lightweight, high-performance device. Choose between the traditional Cisco IOS® XE or controller-managed Cisco IOS XE SD-WAN software to deploy your network quickly and reliably on all Cisco ISR 1000 Series routers. With a simple and flexible pay-as-you-grow model, you purchase network capacity only when you need it.

WAN connection

Feature: Ethernet WAN

Network

Ethernet interface type: Gigabit Ethernet
Feature: Ethernet LAN
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN data rates: 10,100,1000 Mbit/s
Forwarding rate: 1372 Mpps
Number of users: 400 user(s)

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support

Ports & interfaces

Ethernet LAN (RJ-45) ports: 4
USB ports quantity: 1

Security

Security algorithms: 802.1x RADIUS, IPSec, WPA2-AES, WPA2-RADIUS
Feature: Firewall
Feature: Access Control List (ACL)
Network Address Translation (NAT) sessions (max): 100
VPN tunnels quantity: 100

Packaging content

Feature: AC adapter included

Features

Flash memory: 4000 MB
Internal memory: 4000 MB

Design

Product colour: Silver
LED indicators: Yes

Power

Power consumption (typical): 18.8 W
Power consumption (max): 66 W
Power source type: DC
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Output voltage: 12 V
Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 3048 m
Non-operating altitude: 0 - 4572 m

Weight & dimensions

Width: 322 mm
Depth: 226 mm
Height: 41.9 mm
Weight: 860 g
