Huawei eKitOptiX FG630 wireless router

Huawei eKitOptiX FG630. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 1775 Mbit/s. Ethernet LAN interface type: Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Security algorithms: WPA3, WPA2. Product type: Rack/wall router, Product colour: White, International Protection (IP) code: IP20

The Huawei eKitOptiX FG630 is a dual-band Mesh Wi-Fi (one-click interconnection with Huawei ONT) that supports gigabit access over both Wi-Fi 6 and Ethernet gigabit network ports. Next-generation Wi-Fi 6 MU-MIMO technology Strong anti-interference capability, wide coverage, and network self-healing One-click pairing and automatic networking Ethernet port auto-sensing for LAN or WAN mode Mesh network (tree type)

WAN connection

Feature: Ethernet WAN
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max): 1775 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax), 802.11a, Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band): 574 Mbit/s
WLAN data transfer rate (second band): 1201 Mbit/s

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Feature: Full duplex
Feature: Auto-sensing
Feature: Auto MDI/MDI-X
Feature: Flow control support
Feature: Multicast support
Feature: Port forwarding
Feature: Automatic channel selection
Feature: Dynamic DNS (DDNS)
Feature: Static route
IPoE/PPPoE data rate: 1000 Mbit/s
Feature: Ping check
Feature: PPPoE/PPTP/L2TP pass-through

Ports & interfaces

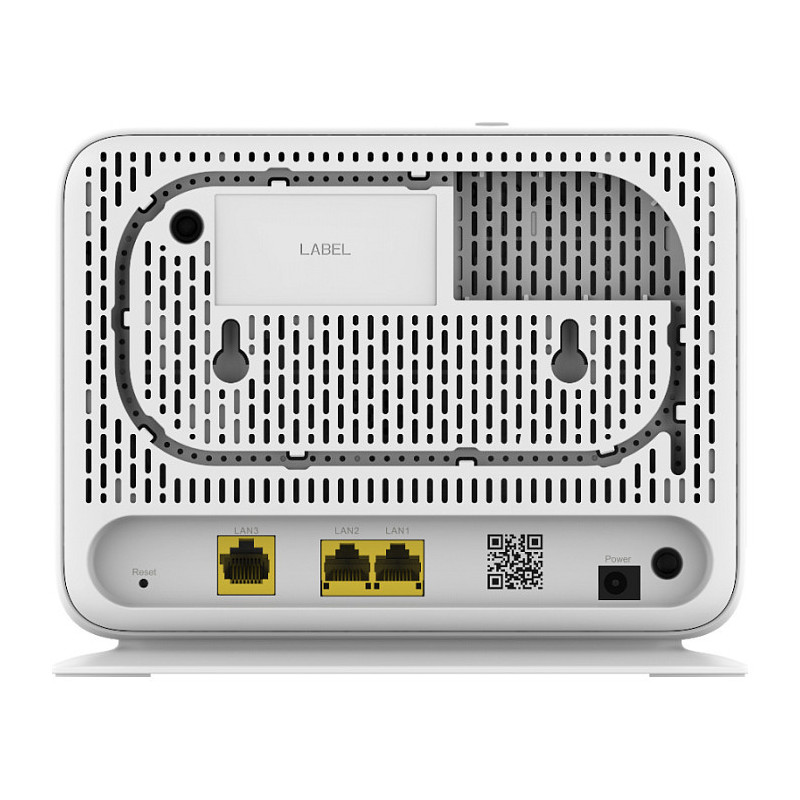

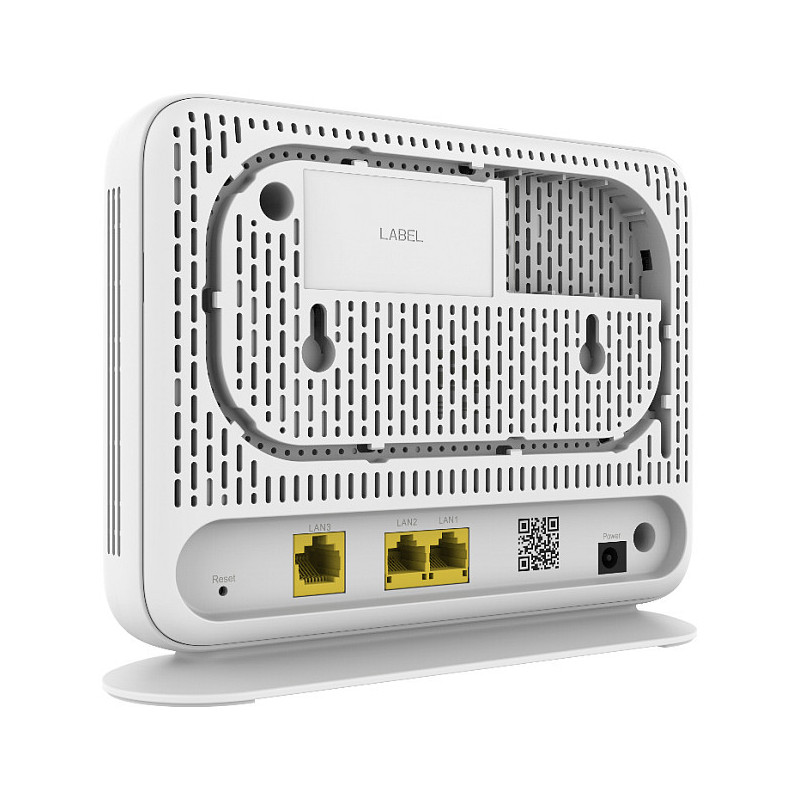

Ethernet LAN (RJ-45) ports: 4

Management features

Feature: Web-based management
Feature: Web-based setup wizard
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: Bandwidth control
Feature: Quality of Service (QoS) support
Feature: Reset button
Feature: WPS push button
Feature: Intelligent Mesh technology
Feature: MU-MIMO technology
Feature: MIMO
Feature: Traffic statistics
Feature: Cloud-managed
Feature: Backup function

Security

Security algorithms: WPA3, WPA2
Feature: Firewall
Feature: Guest access
Feature: Access Control List (ACL)
Feature: Stateful Packet Inspection (SPI)
Feature: Schedule access
Feature: DoS attack prevention
Feature: Parental control
Feature: Network address translation (NAT)

Protocols

Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)

Design

Product colour: White
International Protection (IP) code: IP20
Feature: Indication light
Product type: Rack/wall router

Certificates

Feature: Waste Electrical and Electronic Equipment (WEEE) compliance

Packaging content

Feature: AC adapter included
Feature: Manual
Feature: Quick installation guide
Feature: Quick start guide

Antenna

Antenna design: Internal
Antennas quantity: 4

Features

Feature: Built-in processor
Feature: Non-standalone mode
Feature: Standalone mode
Feature: Plug and Play
Feature: Firmware upgradeable

Power

Power source type: AC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Output voltage: 12 V
Output current: 1 A
Power consumption (typical): 5 W
Power supply: 12 W
Feature: External power adapter

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 188 mm
Depth: 35 mm
Height: 140 mm
Weight: 331 g
