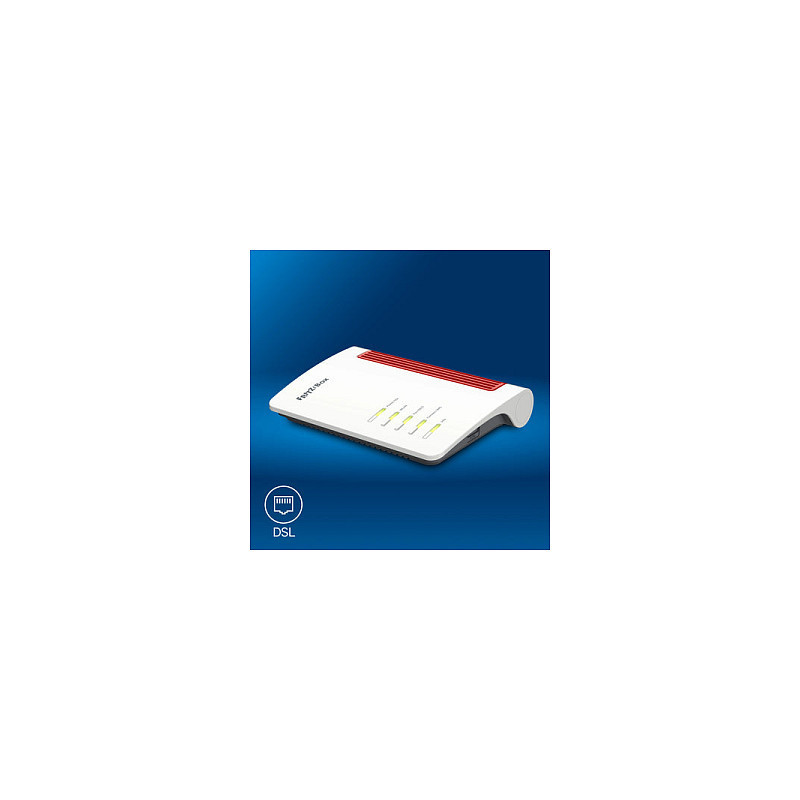

Box 7630 wireless router

Box 7630. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 7 (802.11be), WLAN data transfer rate (max): 3600 Mbit/s. Ethernet LAN interface type: 2.5 Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2500 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, IEEE 802.11be. Security algorithms: WPA3, WPA2. Product type: Tabletop router, Product colour: White, Red, LED indicators: WLAN, WPS, Power. Cables included: LAN (RJ-45), DSL

WAN connection

Feature: Ethernet WAN
Feature: DSL WAN
Feature: 3G/4G USB modem compatibility

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
WLAN data transfer rate (max): 3600 Mbit/s
Wi-Fi standards: Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a
WLAN data transfer rate (first band): 688 Mbit/s
WLAN data transfer rate (second band): 2800 Mbit/s

Network

Feature: Ethernet LAN
Ethernet LAN interface type: 2.5 Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, IEEE 802.11be
Feature: Port forwarding
Feature: Dynamic DNS (DDNS)
Feature: USB sharing
Feature: Media server

DSL features

Feature: ADSL2+
Feature: VDSL

Ports & interfaces

Ethernet LAN (RJ-45) ports: 4
Feature: USB port
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: WPS push button
Feature: Intelligent Mesh technology
Feature: MIMO

Security

Security algorithms: WPA3, WPA2
Feature: Firewall
Feature: Guest access
Feature: Stateful Packet Inspection (SPI)
Feature: Parental control
Feature: Network address translation (NAT)

Design

Product colour: White, Red
Feature: Wall mountable
Feature: Indication light
LED indicators: WLAN, WPS, Power
Product type: Tabletop router

Packaging content

Cables included: LAN (RJ-45), DSL
Feature: AC adapter included
Feature: Manual
Feature: Quick start guide

Antenna

Antenna design: Internal

Features

Languages support: Dutch, English, Spanish, French, Italian, Polish, German

Power

Power source type: AC
Power consumption (typical): 8 W

System requirements

Introduction year: 2026

Weight & dimensions

Width: 208 mm
Depth: 150 mm
Height: 37 mm

Packaging data

Number of products included: 1 pc(s)

Logistics data

Warranty period: 5 year(s)
