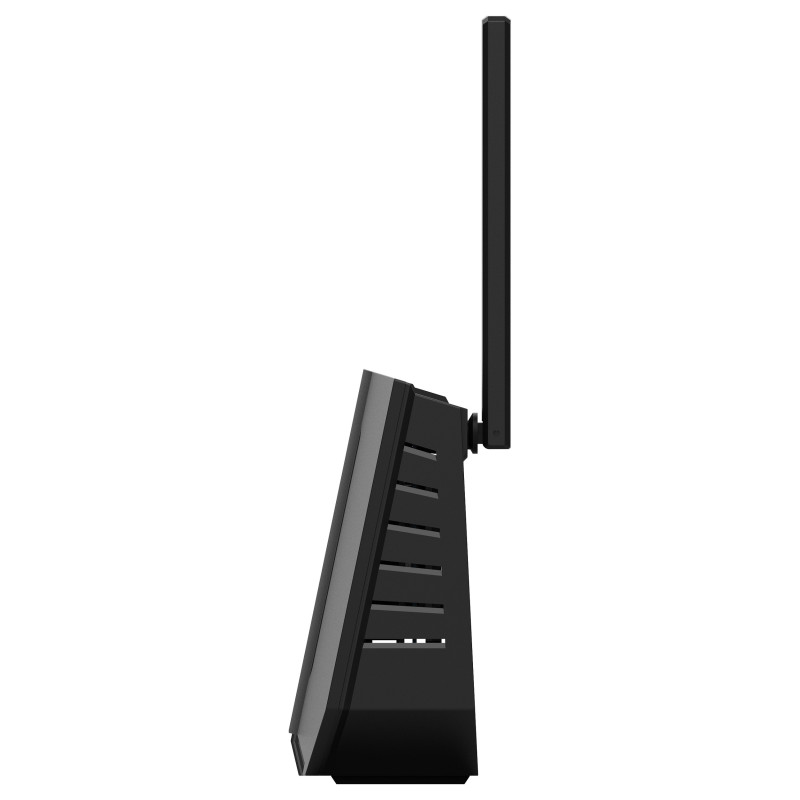

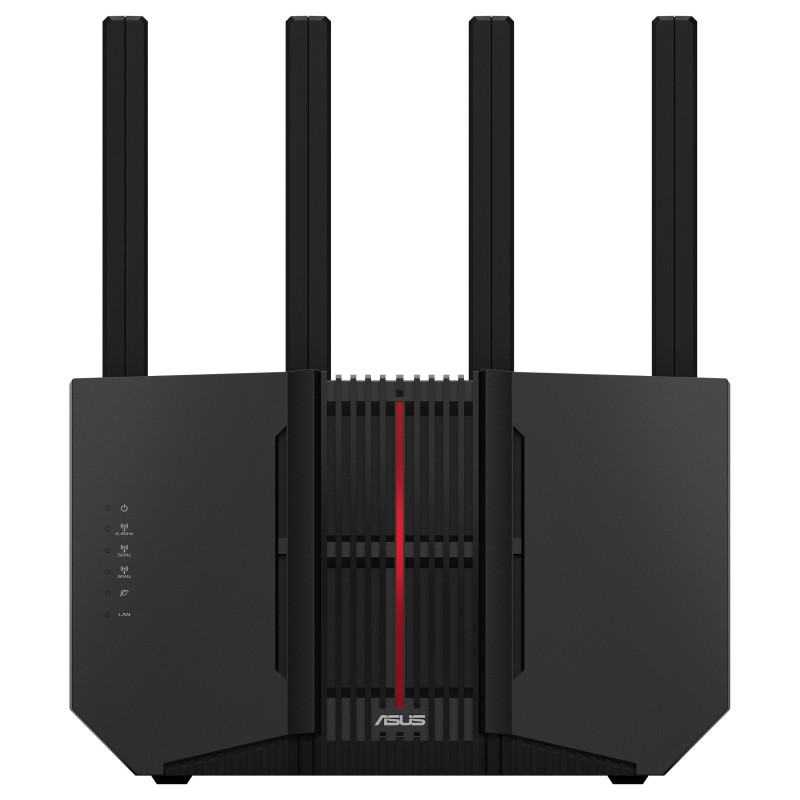

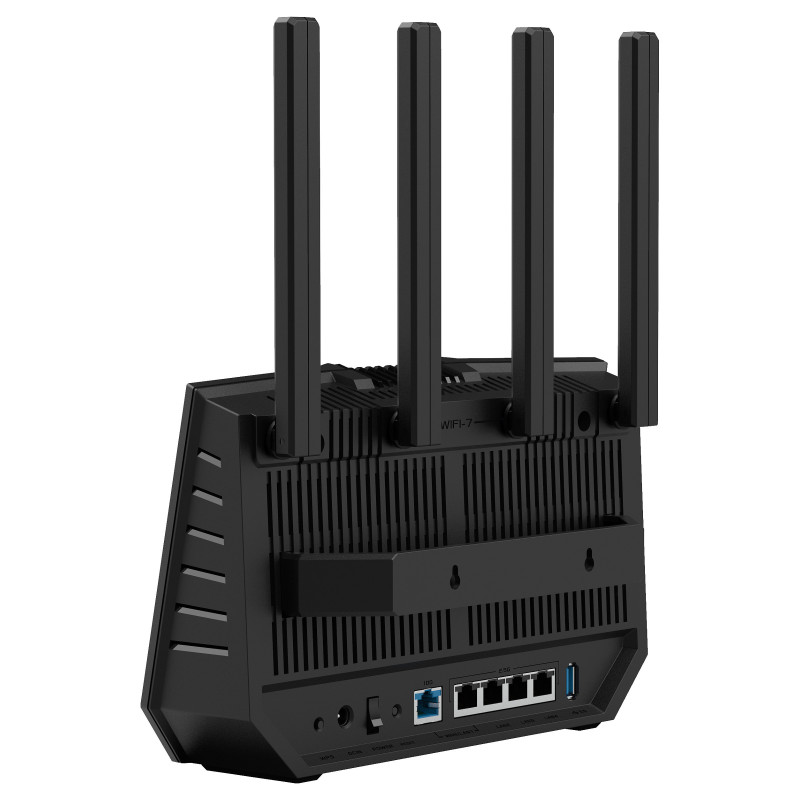

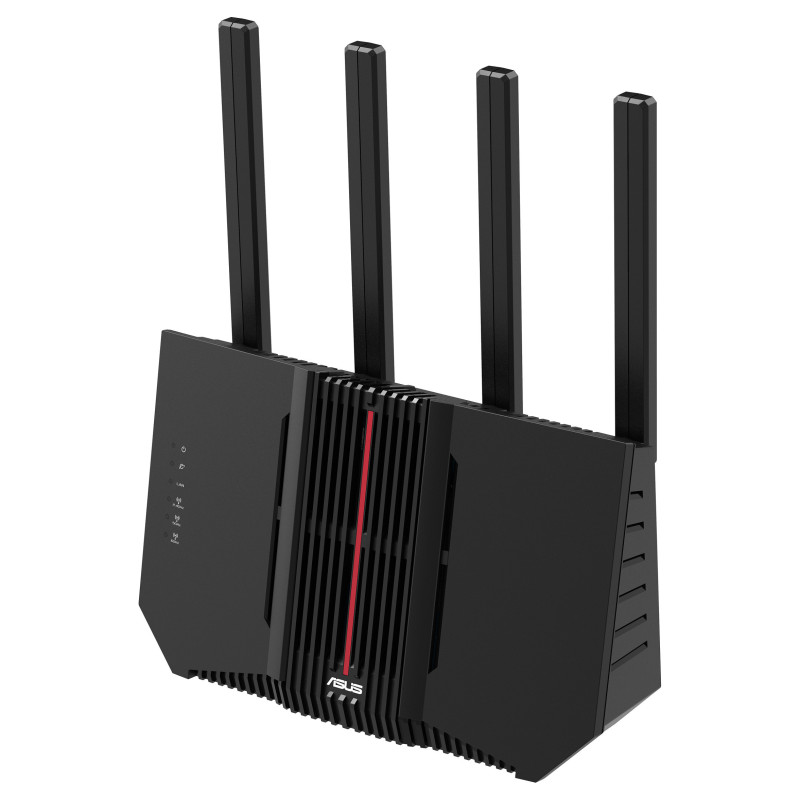

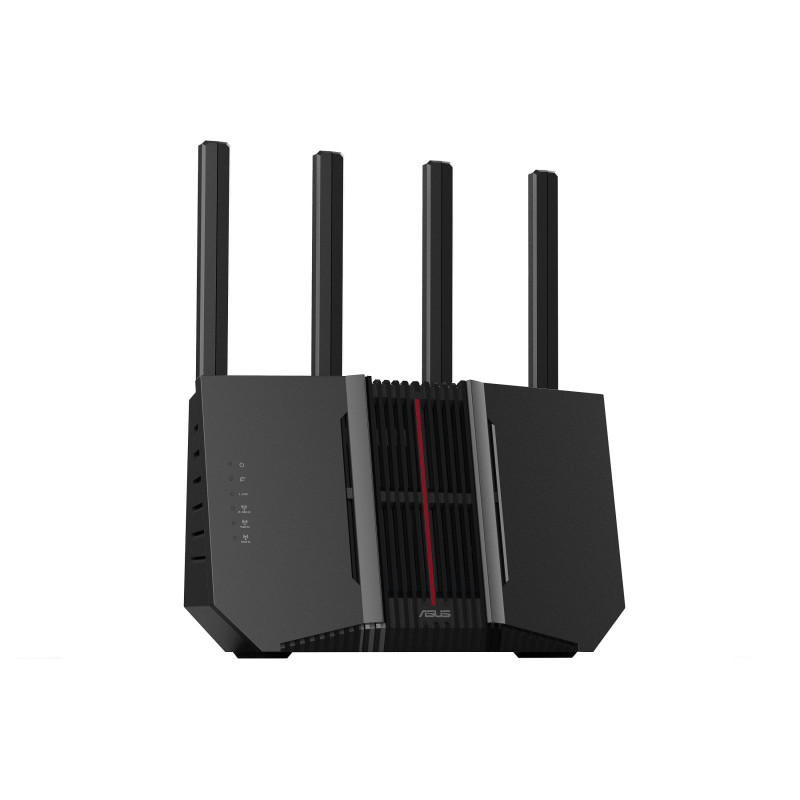

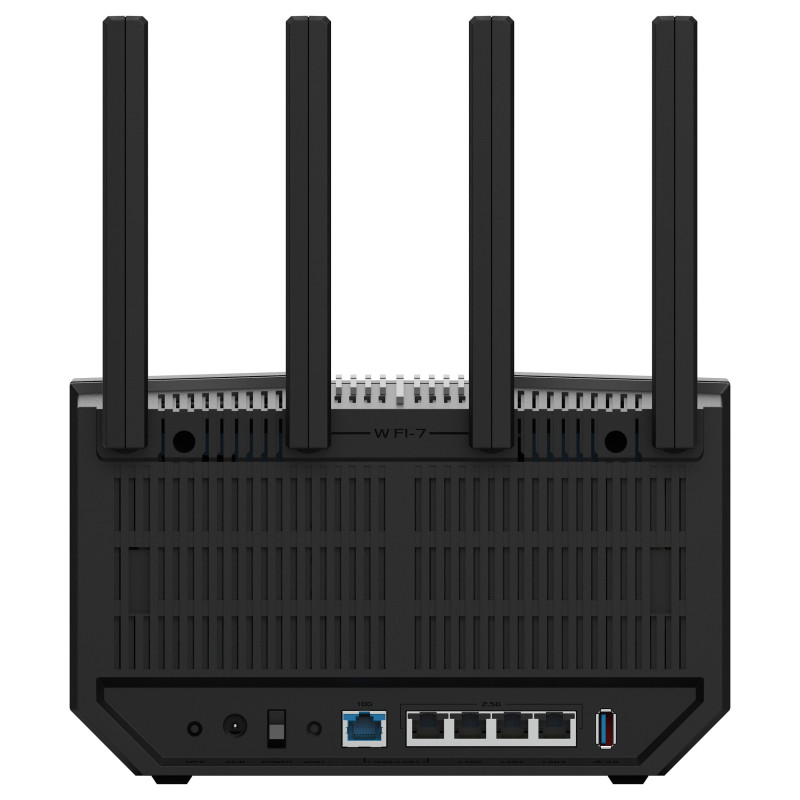

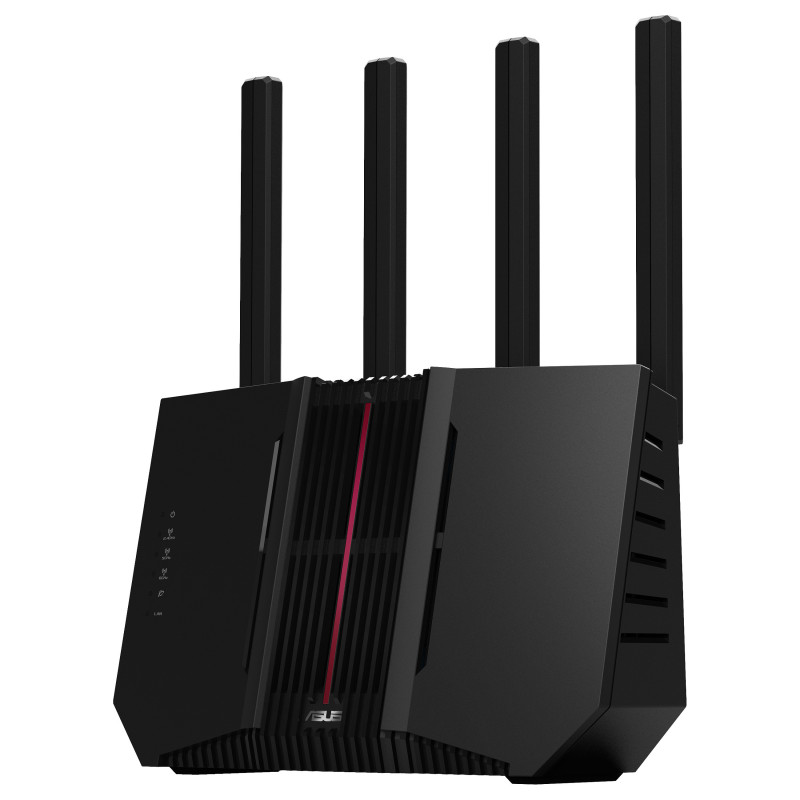

ASUS RT-BE92U wireless router

ASUS RT-BE92U. WAN connection type: RJ-45. Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz), Top Wi-Fi standard: Wi-Fi 7 (802.11be), WLAN data transfer rate (max): 5764 Mbit/s. Ethernet LAN interface type: 10 Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2500,10000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n. Security algorithms: WPA, WPA2, WPA3-Personal, MAC address table: 64 entries, NAT functionality: PPTP Pass-Through L2TP Pass-Through IPSec Pass-Through RTSP Pass-Through H.323 Pass-Through SIP.... Product type: Tabletop router, Product colour: Black, LED indicators: LAN, Power, WAN

WAN connection

Ethernet WAN: Yes
DSL WAN: No
SIM card slot: No
3G/4G USB modem compatibility: No
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
WLAN data transfer rate (max): 5764 Mbit/s
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN data transfer rate (first band): 1032 Mbit/s
WLAN data transfer rate (second band): 2882 Mbit/s
WLAN data transfer rate (third band): 5764 Mbit/s

Network

Ethernet LAN: Yes
Ethernet LAN interface type: 10 Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500,10000 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Port forwarding: Yes
Port triggering: Yes
Dynamic DNS (DDNS): Yes
Support Samba (storage): Yes
VPN server: VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard
Media server: Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports: 3
USB port: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
DC-in jack: Yes

Management features

Web-based management: Yes
Bandwidth control: Yes
Quality of Service (QoS) support: Yes
Wake-on-LAN ready: Yes
Reset button: Yes
WPS push button: Yes
Intelligent Mesh technology: Yes
MU-MIMO technology: Yes

Security

Security algorithms: WPA, WPA2, WPA3-Personal
Firewall: Yes
Guest access: Yes
Parental control: Yes
Filtering: Yes
MAC address filtering: Yes
MAC address table: 64 entries
URL filtering: Yes
DMZ support: Yes
Network address translation (NAT): Yes
NAT functionality: PPTP Pass-ThroughL2TP Pass-ThroughIPSec Pass-ThroughRTSP Pass-ThroughH.323 Pass-ThroughSIP Pass-ThroughPPPoE Relay

Protocols

DHCP server: Yes

Design

Product colour: Black
Wall mountable: Yes
Indication light: Yes
LED indicators: LAN, Power, WAN
On/off switch: Yes
Product type: Tabletop router

Packaging content

Cables included: LAN (RJ-45)
AC adapter included: Yes
Warranty card: Yes
Quick start guide: Yes
Packaging content: RT-BE92U WiFi 7 Tri-band Routerwall mount kitRJ-45 cablePower AdapterQuick Start GuideWarranty Card

Antenna

Antenna design: External
Antennas quantity: 4

Features

Built-in processor: Yes
Processor frequency: 2 MHz
Processor cores: 4
Internal memory: 1000 MB
Internal memory type: DDR4
Flash memory: 256 MB
Firmware upgradeable: Yes

Power

Power source type: DC
AC input voltage: 110 - 240 V
AC input frequency: 50/60 Hz
Output voltage: 12 V
Output current: 3 A

Weight & dimensions

Width: 247.2 mm
Depth: 101.6 mm
Height: 287.5 mm
Weight: 790 g

Packaging data

Package width: 374 mm
Package depth: 219 mm
Package height: 105 mm
Package weight: 2.1 kg
Package type: Box
