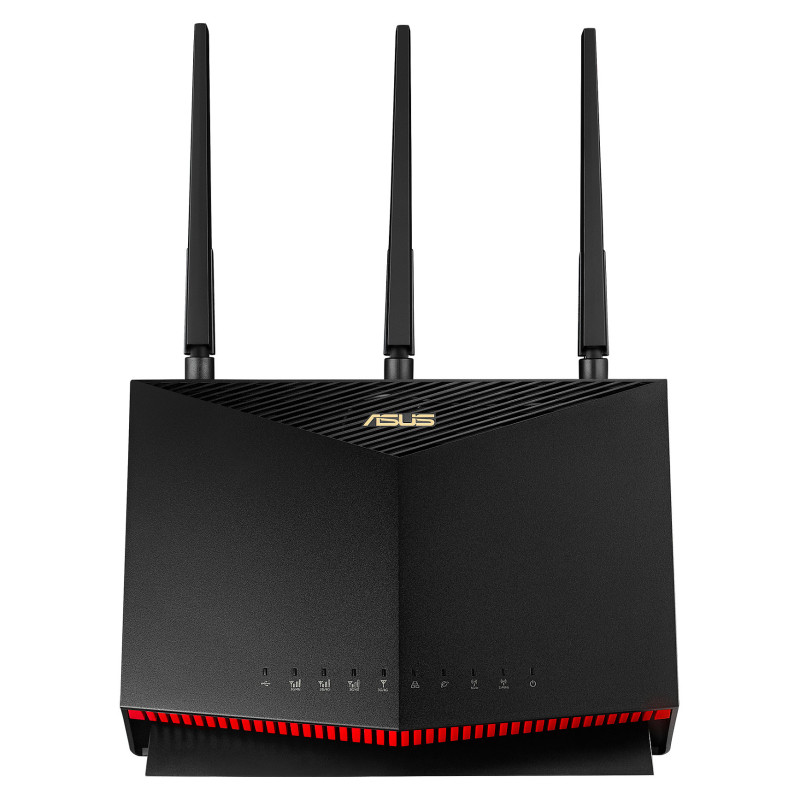

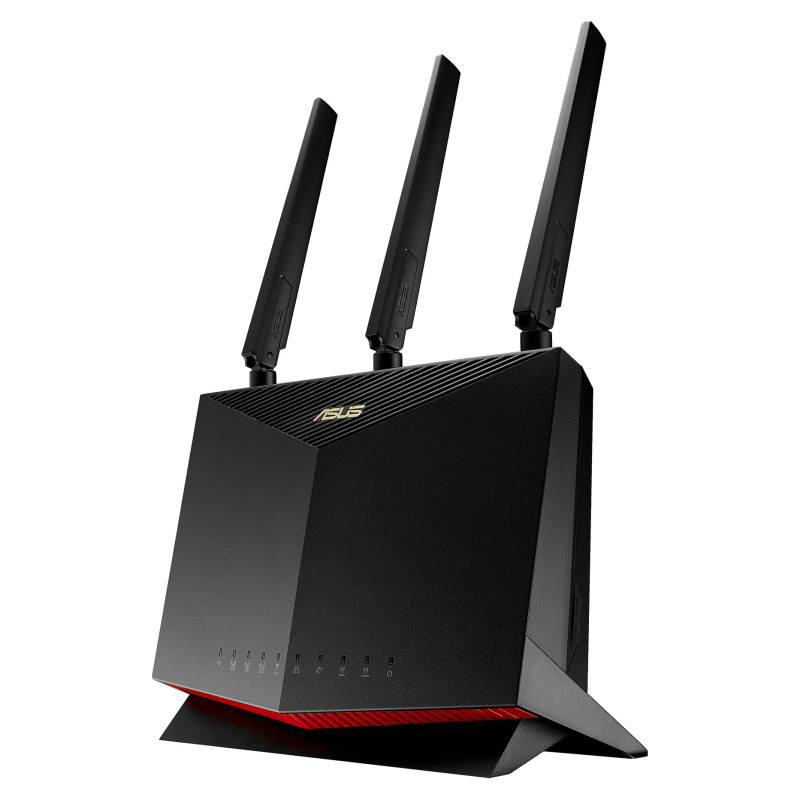

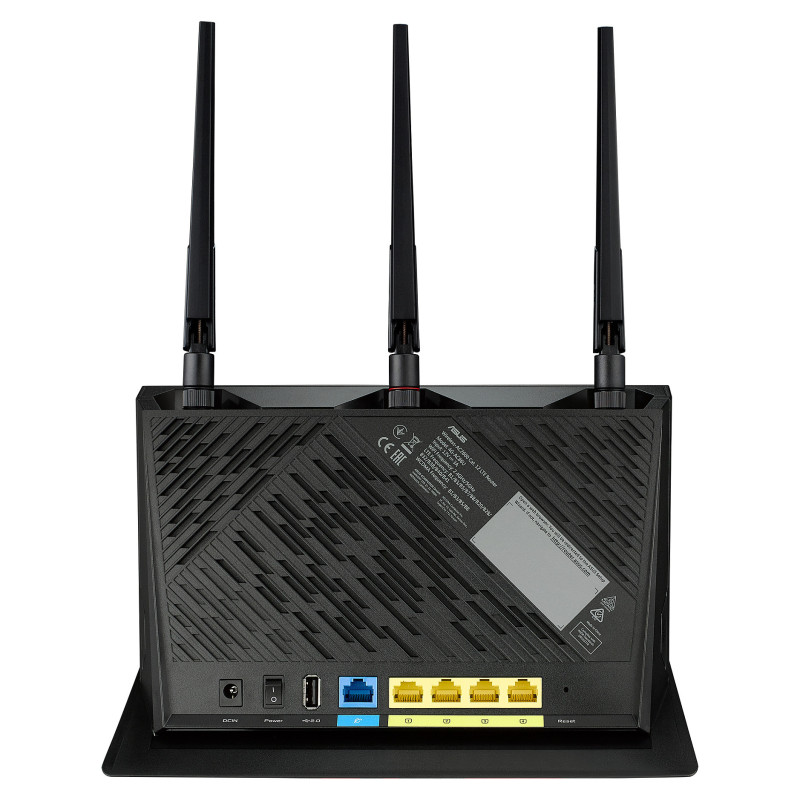

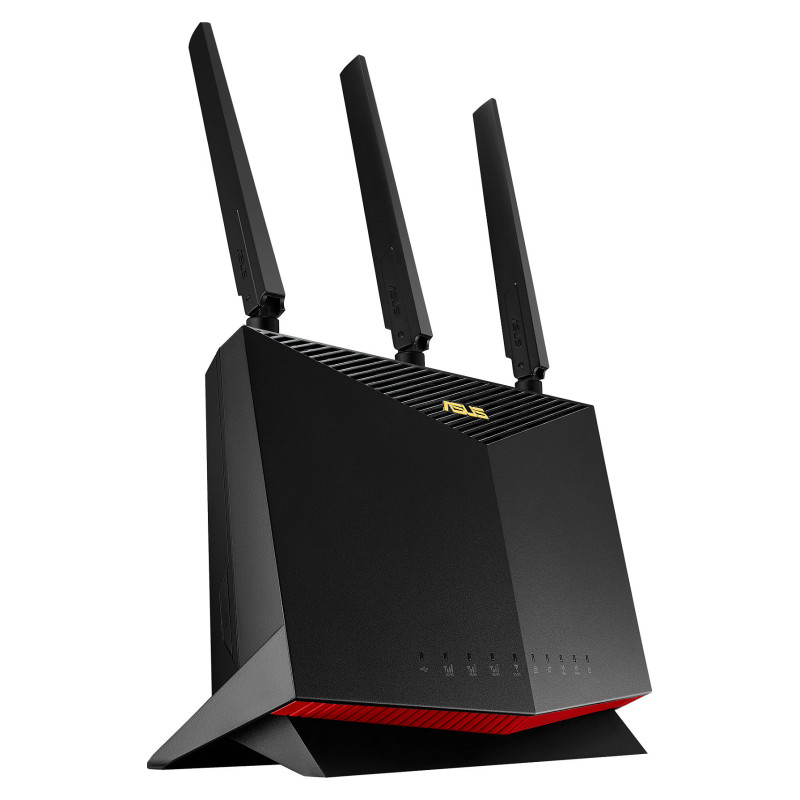

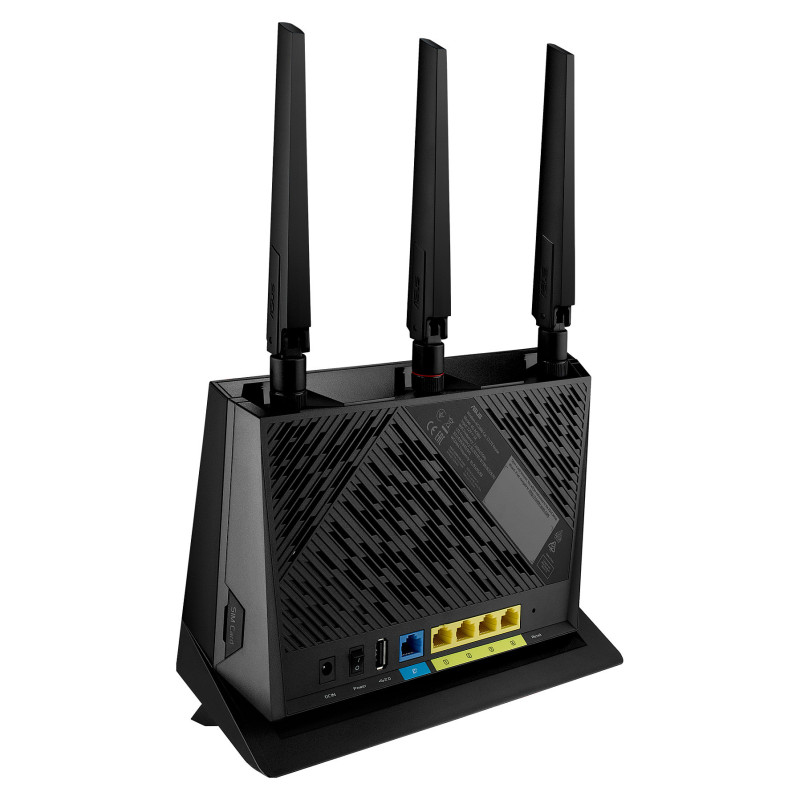

ASUS 4G-AC86U wireless router

ASUS 4G-AC86U. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 2533 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Mobile network generation: 4G, 3G standards: UMTS, 4G standard: LTE-TDD & LTE-FDD. Security algorithms: WPS, NAT functionality: PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay

WAN connection

Feature: Ethernet WAN
Feature: SIM card slot
Feature: 3G/4G USB modem compatibility
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 2533 Mbit/s
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band): 800 Mbit/s
WLAN data transfer rate (second band): 1733 Mbit/s
Modulation: 256-QAM

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Port forwarding
Feature: Dynamic DNS (DDNS)
Feature: USB sharing
Feature: Built-in FTP server
Feature: Media server
Feature: VPN Passthrough
VPN support: Client L2PT, Client OVPN, Client PPTP, ServerOVPN, Server PPTP

Mobile network

Mobile network generation: 4G
Feature: 3G
Feature: 4G
3G standards: UMTS
4G standard: LTE-TDD & LTE-FDD
SIM card type: NanoSIM

Ports & interfaces

Ethernet LAN (RJ-45) ports: 4
Feature: USB port
USB 2.0 ports quantity: 1
Feature: DC-in jack

Management features

Feature: Bandwidth control
Feature: Quality of Service (QoS) support
Feature: Wake-on-LAN ready
Feature: Reset button
Feature: WPS push button
Feature: MU-MIMO technology

Security

Security algorithms: WPS
Feature: Firewall
Feature: Guest access
Feature: Schedule access
Feature: Parental control
Feature: MAC address filtering
Feature: IP address filtering
Feature: URL filtering
Feature: System event log
Feature: DMZ support
Feature: Network address translation (NAT)
NAT functionality: PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay

Protocols

Feature: DHCP server

Design

Product colour: Black
LED indicators: LAN, LTE, Power, USB, WAN, WLAN
Feature: On/off switch
Product type: Tabletop router

Packaging content

Cables included: LAN (RJ-45)
Feature: AC adapter included
Feature: Antenna included
Feature: Warranty card
Feature: Quick start guide

Antenna

Antenna design: Internal & external
Antenna gain level (max): 3 dBi
Antennas quantity: 6
Feature: Detachable antenna(s)

Features

Internal memory: 512 MB
Flash memory: 128 MB
Feature: Works with Amazon Alexa

Power

Power source type: DC

Weight & dimensions

Weight: 797 g

Logistics data

Harmonized System (HS) code: 85176990
