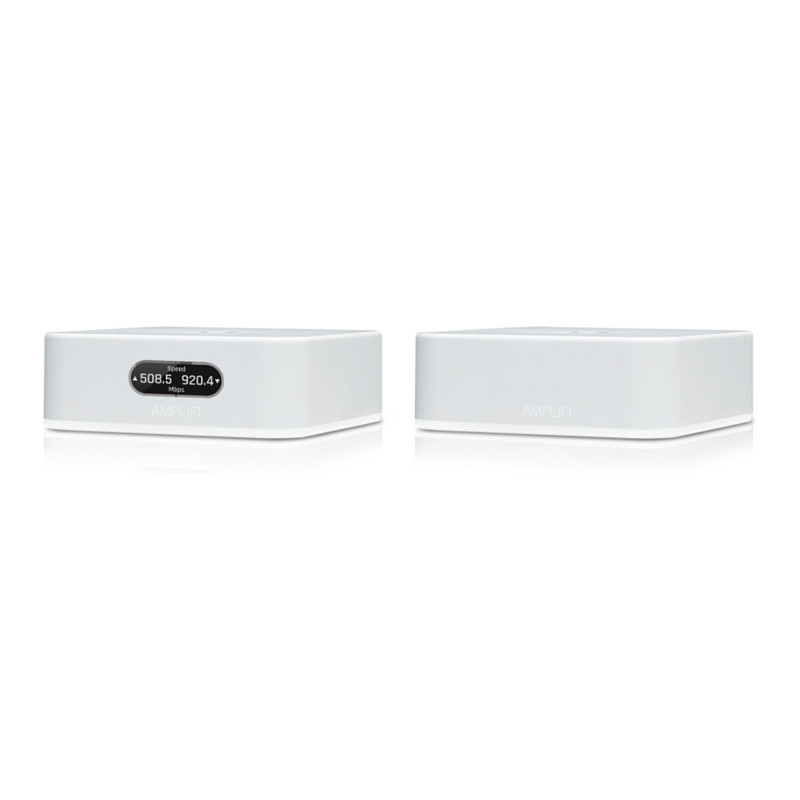

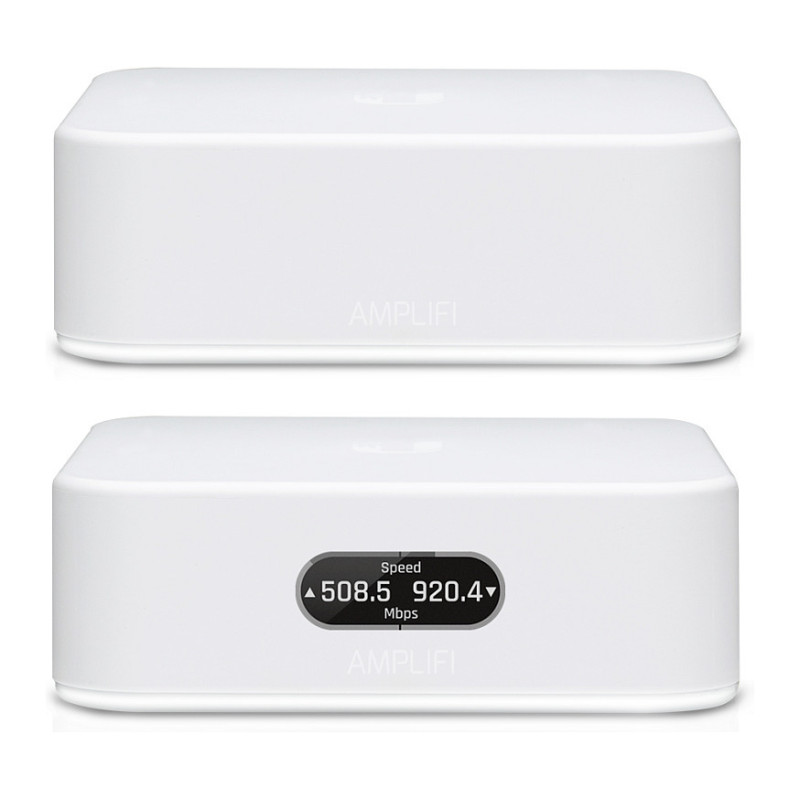

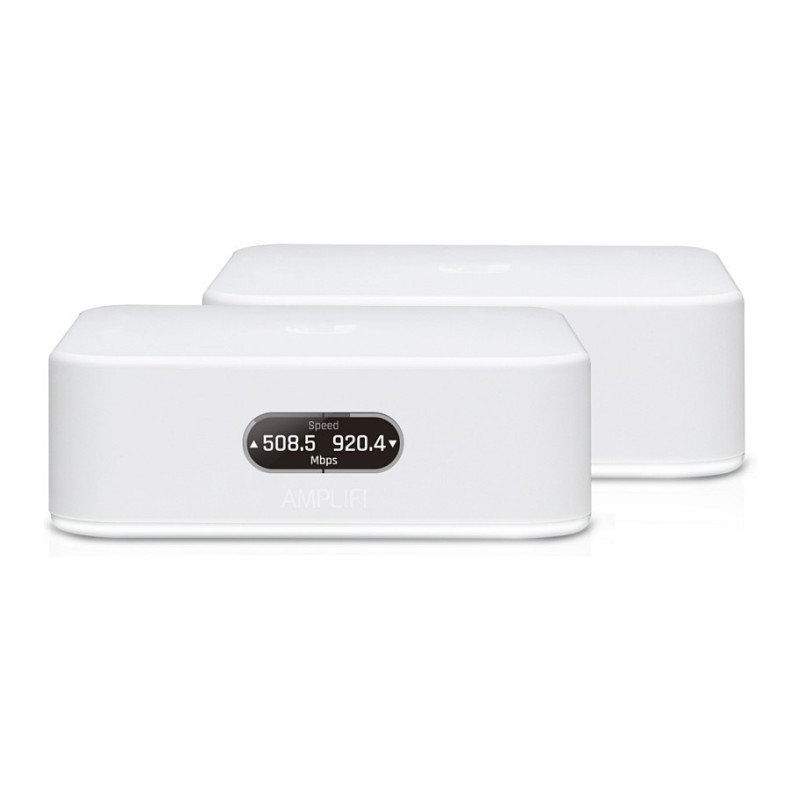

AmpliFi Instant System wireless router

AmpliFi Instant System. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Security algorithms: WPA2-PSK, WPA2-TKIP. Product type: Tabletop router, Product colour: White
The AmpliFi Instant Wi-Fi System includes a router with an easy-to-use touchscreen display, 1 Gigabit Ethernet port, a WAN port, an Ethernet cable, and one MeshPoint with an Ethernet port to maximize coverage and eliminate dead zones in your home.
The AmpliFi Instant Wi-Fi system provides superior coverage with a range of up to 4,000 sq. ft and quick setup for whole home coverage with seamless Wi-Fi.
Say hello to a fresh design aesthetic
And goodbye to trying to discreetly hide your router. You need your router where you use your devices the most; like your office, family room or bedroom. The AmpliFi Instant is designed to complement your home's interior both functionally and aesthetically. Now you can place your router on your desk, side table or nightstand without messing up your home's decor.
Features you want from a system you can understand
The AmpliFi Instant has the features you want, like device status and guest access, with a simple interface that doesn't require advanced technical degrees. Its glowing LED light indicates the system status while the AmpliFi App puts you in control of your WiFi.
AmpliFi Instant Mesh System
Mix and match your mesh technology to strengthen Wi-Fi signals in the areas of your home where you need it the most. In addition to the AmpliFi Instant kit, which features an Instant MeshPoint, you can add AmpliFi HD MeshPoints or AmpliFi HD Routers to ensure complete coverage.

WAN connection

Ethernet WAN: Yes
DSL WAN: No
SIM card slot: No
3G/4G USB modem compatibility: No
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 867 Mbit/s
Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band): 300 Mbit/s
WLAN data transfer rate (second band): 867 Mbit/s

Network

Ethernet LAN: Yes
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Mobile network

3G: No
4G: No

Ports interfaces

Ethernet LAN (RJ-45) ports: 2
USB port: Yes
Memory card slot(s): No

Management features

Reset button: Yes

Security

Security algorithms: WPA2-PSK, WPA2-TKIP

Design

Product colour: White
Product type: Tabletop router

Certificates

Certification: FCC, CE, IC

Packaging content

Cables included: LAN (RJ-45)
AC adapter included: Yes

Antenna

Antenna design: Internal
Antennas quantity: 1
Transmit power: 22 dBmW

Power

Power source type: AC
Power consumption (typical): 9 W

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 5 - 95%

Weight dimensions

Width: 995 mm
Depth: 978 mm
Height: 330.5 mm
Weight: 215 g

Packaging data

Number of products included: 2 pc(s)

Logistics data

Harmonized System (HS) code: 85176990
