Teltonika RUT202

Teltonika RUT202. Device type: Cellular network router, Product colour: Black, Housing material: Aluminium. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.11w, IEEE 802.11r, IEEE 802.11k, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.11e,.... Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi band: Single-band (2.4 GHz). Data network: 2G, 3G, 4G, 4G standard: LTE-TDD & LTE-FDD, SIM card type: MiniSIM. Security algorithms: WPA2-Enterprise-PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS

COMPACT INDUSTRIAL DUAL SIM ROUTER

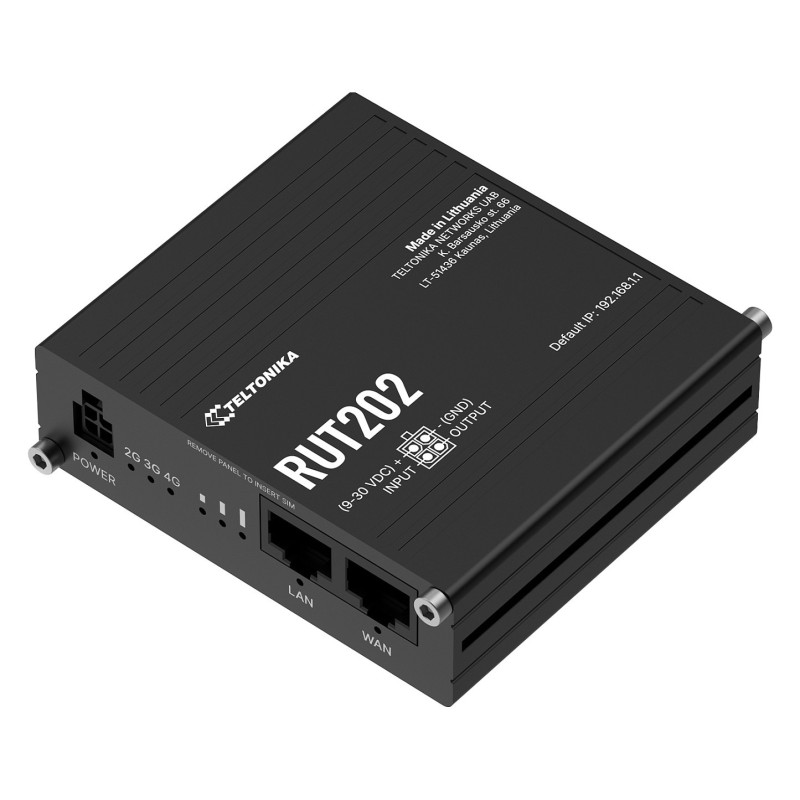

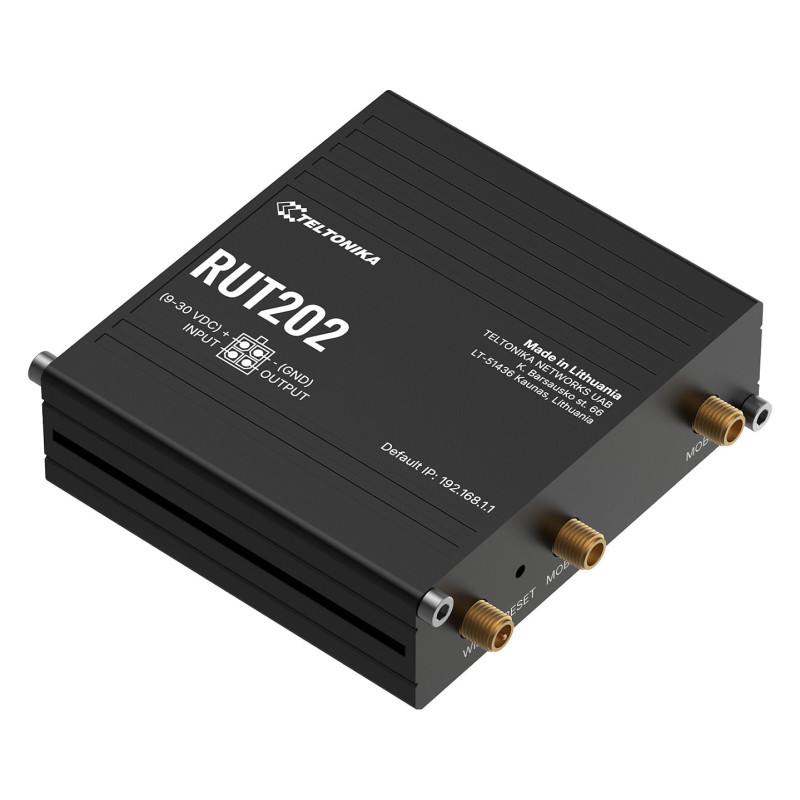

RUT202 is our smallest dual sim industrial LTE Cat 4 router built for stable and continuous connectivity, featuring Dual SIM with automatic failover to prevent network interruptions. Its space-efficient aluminium housing fits easily into tight or embedded installations, while dual Ethernet ports and LTE + Wi-Fi support enable flexible wired and wireless setups. RUT202 combines dual SIM redundancy, compact housing, and internal SIM security in a single, easy-to-deploy device.

Design

Device type: Cellular network router
Product colour: Black
Housing material: Aluminium
Mounting: DIN-rail/Wall mounting
Market positioning: Industrial
Feature: Reset button
LED indicators: Signal strength, LAN, Power

Ethernet LAN features

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Networking standards: IEEE 802.11w, IEEE 802.11r, IEEE 802.11k, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.11e, IEEE 802.1x
Feature: DHCP server
Feature: VoIP
Feature: Auto MDI/MDI-X
Feature: Dynamic DNS (DDNS)
Feature: Universal Plug and Play (UPnP)
Feature: Network bridge

Wireless LAN features

Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi band: Single-band (2.4 GHz)
Number of WLAN connections (max): 50

Mobile network

Data network: 2G, 3G, 4G
4G standard: LTE-TDD & LTE-FDD
Number of SIM cards: 2
SIM card type: MiniSIM
4G LTE category: 4
Feature: Short Message Service (SMS)
Data transfer rate (LTE) (download): 150 Mbit/s
Data transfer rate (LTE) (upload): 50 Mbit/s

Ports & interfaces

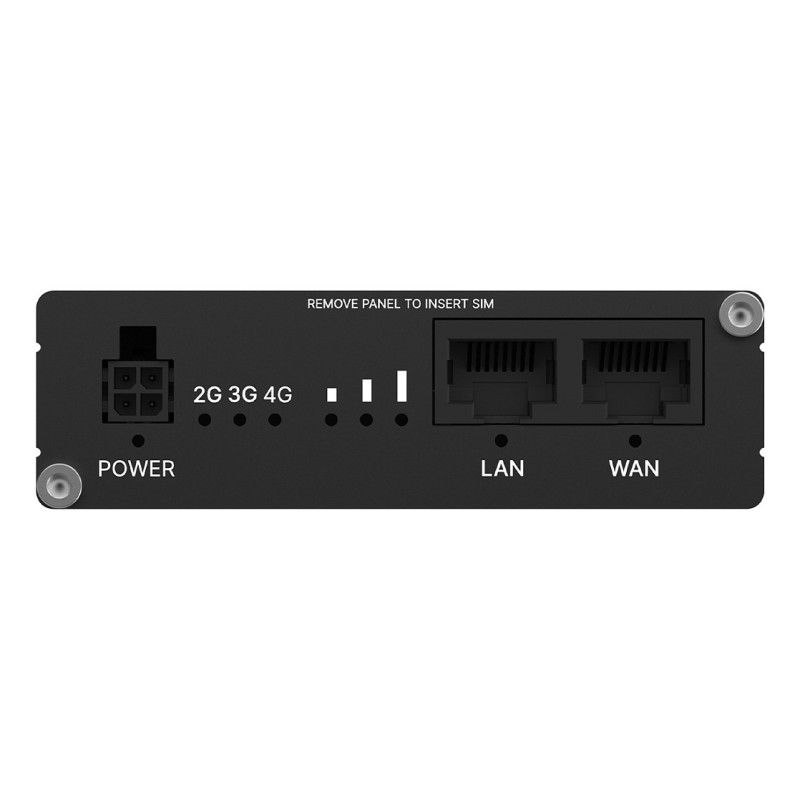

Ethernet LAN (RJ-45) ports: 2

Security

Security algorithms: WPA2-Enterprise-PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS
Feature: Network address translation (NAT)
Feature: Firewall
Feature: DMZ support
Feature: Port forwarding

Certificates

Compliance certificates: CE, UKCA, RCM, CB, WEEE

Packaging content

Feature: AC adapter included
Feature: Quick start guide

Performance

Feature: Built-in processor
Processor manufacturer: Mediatek
Processor frequency: 0.58 GHz
RAM capacity: 0.128 GB
RAM type: DDR2
Internal storage capacity: 0.032 GB
Operating system installed: RutOS
Feature: Web-based management

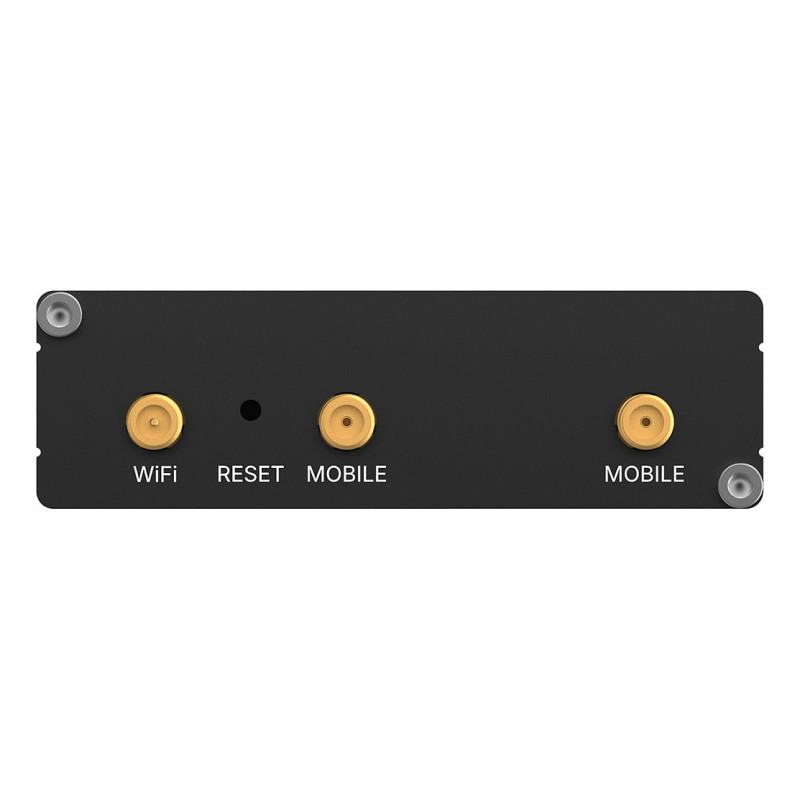

Antenna type: External
Antenna connector type: SMA/RP-SMA
Antennas quantity: 3
Feature: Detachable antenna(s)
International Protection (IP) code: IP30

Power

Power source type: DC
Input voltage: 9 - 30 V
Power consumption (max): 6.5 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 83 mm
Depth: 83 mm
Height: 25 mm
Weight: 130 g
