Teltonika TAP200

Teltonika TAP200. 2.4 GHz, 5 GHz, Maximum data transfer rate: 867 Mbit/s. Security algorithms: WPA2-Enterprise-PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 5.5 W

Wi-Fi 5 ACCESS POINT

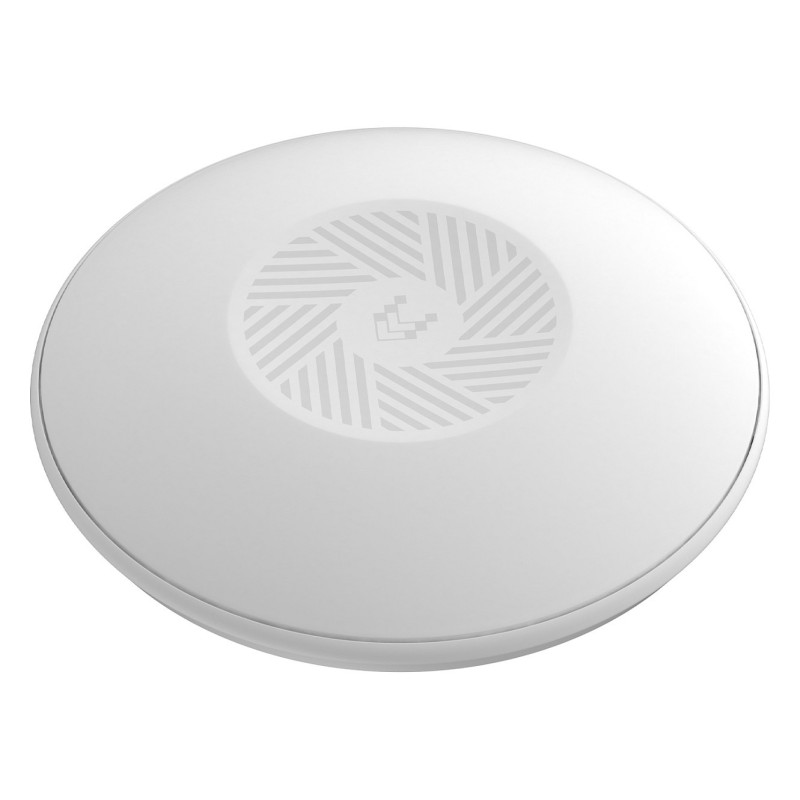

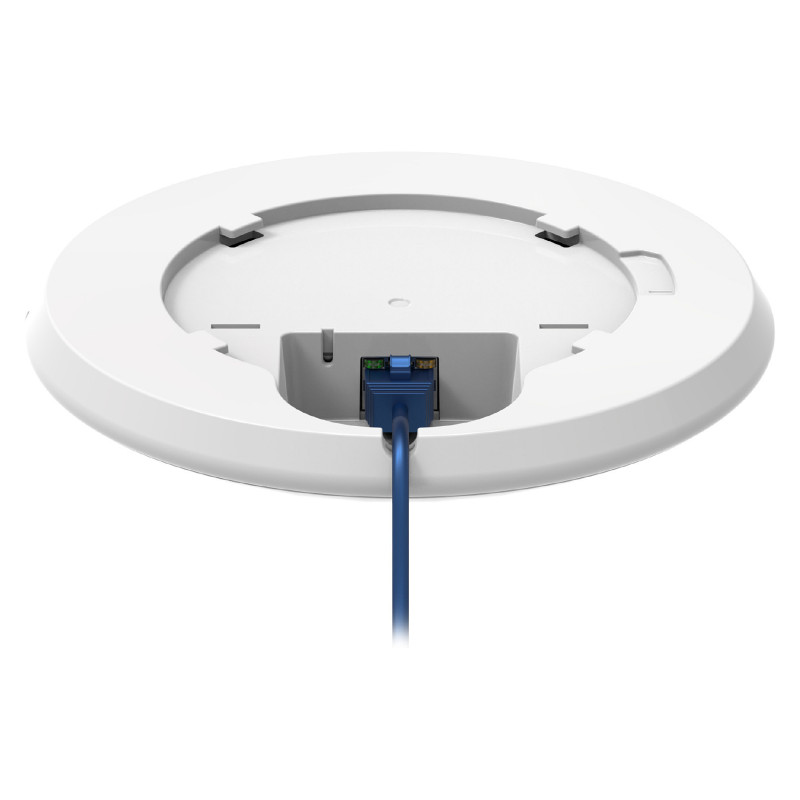

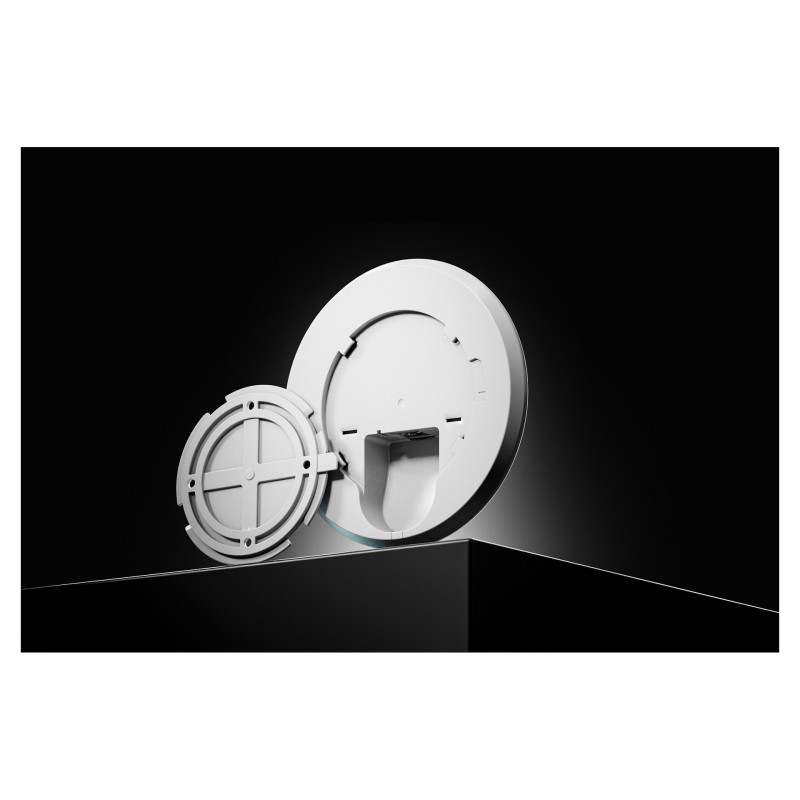

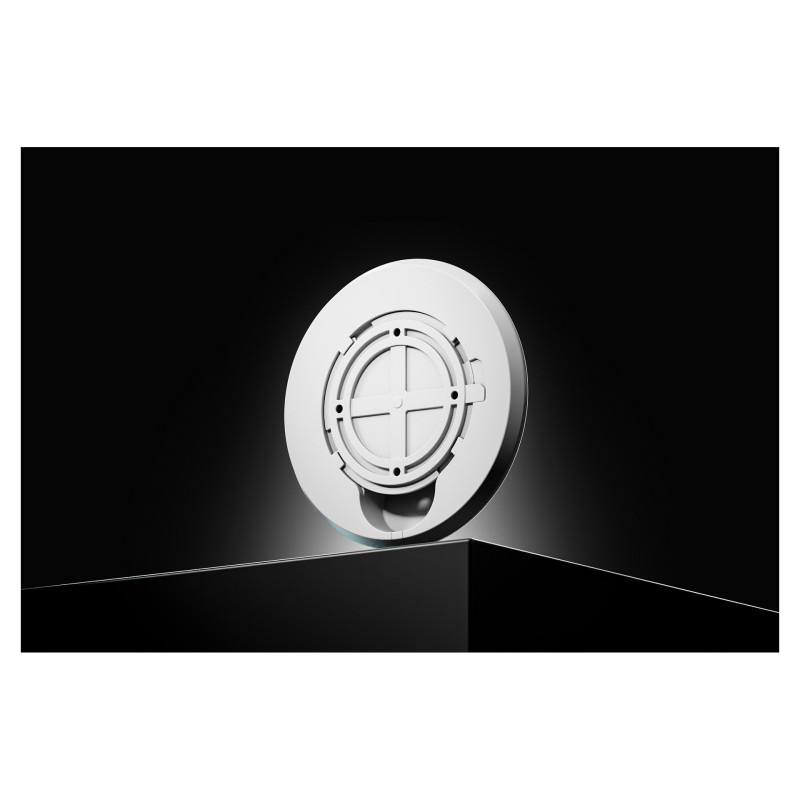

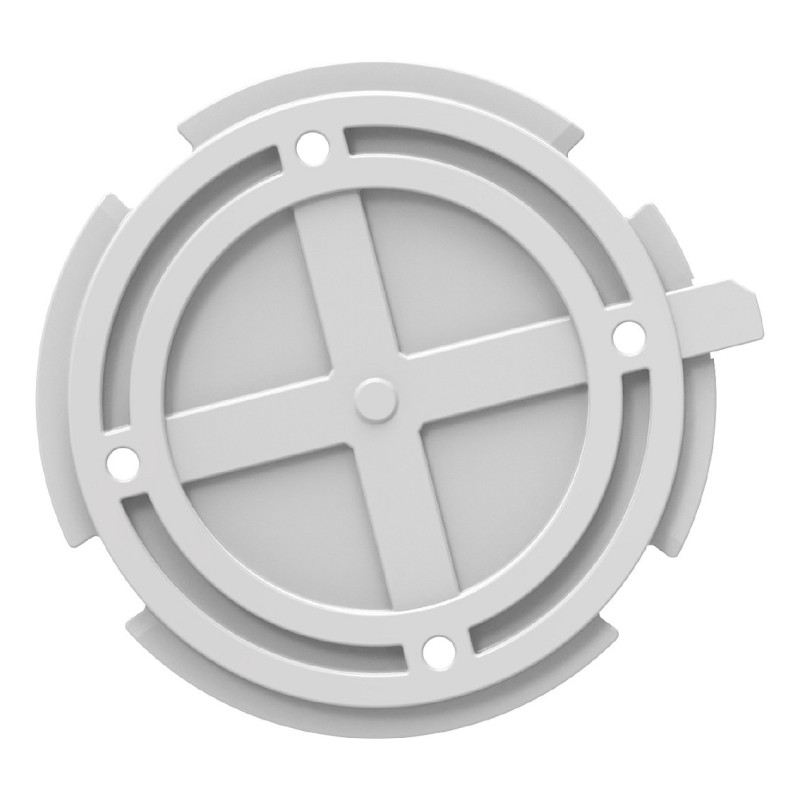

Equipped with dual-band technology, fast roaming, and an RJ45 port with PoE-in functionality, the Teltonika Networks TAP200 is a Wi-Fi 5 wireless access point designed to enhance Wi-Fi coverage in medium-density spaces where high network performance is essential. The TAP200 features an integrated mounting bracket for quick and easy installation, and a sleek design to seamlessly blend into retail, enterprise, or any other environment.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 867 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Number of simultaneously connected devices (max): 100
Networking standards: IEEE 802.11w, IEEE 802.11s, IEEE 802.11r, IEEE 802.11v, IEEE 802.11k, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.1x, IEEE 802.3af
Cabling technology: 10/100/1000Base-T(X)
Feature: Auto MDI/MDI-X
Feature: MIMO
MIMO type: Multi User MIMO
Feature: Fast roaming
Feature: VLAN support
Virtual LAN features: Tagged VLAN
Feature: Wireless meshing

Security

Security algorithms: WPA2-Enterprise-PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS
Feature: MAC address filtering
Service Set Identifier (SSID) features: Hidden SSID
Feature: Blacklist
Feature: Whitelist

Protocols

Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL v3, TLS, ARP, SSH

Management features

Feature: Web-based management
Feature: Command-line interface (CLI)
Feature: Syslog
Feature: Traffic statistics
Feature: Backup function
Feature: Firmware upgradeable

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Power

Feature: Power over Ethernet (PoE)
DC voltage range: 44 - 57 V
Power consumption (max): 5.5 W

Design

Placement: Ceiling
Product colour: White
Housing material: Plastic
International Protection (IP) code: IP30
Feature: Reset button
LED indicators: Power

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional
Antennas quantity: 4
Antenna gain level (max): 5.02 dBi

Performance

Feature: Built-in processor
Processor frequency: 880 MHz
Flash memory: 16 MB
Internal memory: 256 MB
Internal memory type: DDR3
Operating system installed: RutOS

Certificates

Compliance certificates: CE, UKCA, Federal Communications Commission (FCC), Industry Canada (IC), RCM, EAC, RoHS, WEEE

Weight & dimensions

Width: 158 mm
Depth: 158 mm
Height: 30 mm
Weight: 190 g

Packaging data

Package type: Box

Packaging content

Quantity per pack: 1 pc(s)
Feature: Quick start guide

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -40 - 50 °C
