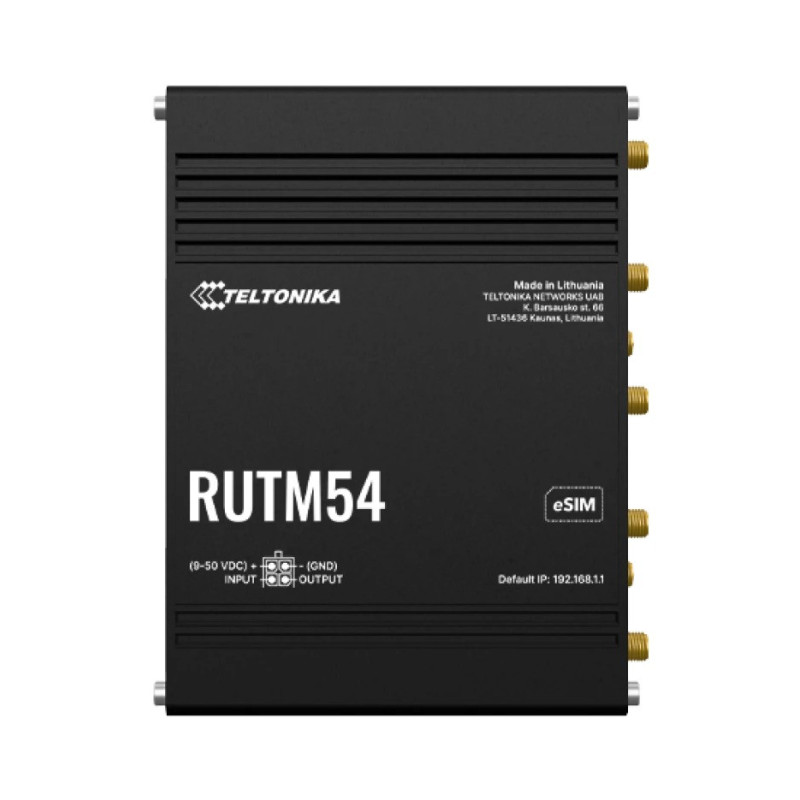

Router 5 ports Teltonika RUTM54 5G
Product reference:
26-RUTM54
- Type: Router
- Model: Teltonika RUTM54 5G
- 5G connectivity: Sub-6GHz, 4x4 MIMO
- Number of users: up to 150
- Ports: 1 x WAN 1000 Mbps, 4 x LAN 1000 Mbps
- Operator support: more than 25
- Protocols: DLMS, NMEA 0183
- RAM: 256MB DDR3
- Memory: 16MB NOR, 256MB NAND flash
- Power supply: 4-pin DC connector, 9-50 VDC
- Connectors: 5 x RJ45, 4 x SMA, 2 x RP-SMA, 1 x SMA GNSS
- Operating temperature: -40 to 75 °C
Router 5 ports Teltonika RUTM54 5G
Product reference:
26-RUTM54
- Type: Router
- Model: Teltonika RUTM54 5G
- 5G connectivity: Sub-6GHz, 4x4 MIMO
- Number of users: up to 150
- Ports: 1 x WAN 1000 Mbps, 4 x LAN 1000 Mbps
- Operator support: more than 25
- Protocols: DLMS, NMEA 0183
- RAM: 256MB DDR3
- Memory: 16MB NOR, 256MB NAND flash
- Power supply: 4-pin DC connector, 9-50 VDC
- Connectors: 5 x RJ45, 4 x SMA, 2 x RP-SMA, 1 x SMA GNSS
- Operating temperature: -40 to 75 °C
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 6
business days
- Mobile connection
- Mobile module 5G Sub-6Ghz SA/NSA 2.5/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G (LTE) - LTE Cat 19 1.6Gbps DL, LTE Cat 18 211Mbps UL; 3G - 42 Mbps DL, 5.7 Mbps UL
- 3GPP release Release 16
- eSIM Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
- SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
- Status IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
- SMS SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
- USSD Supports sending and reading Unstructured Supplementary Service Data messages
- Block/Allow list Operator block/allow list (by country or separate operators)
- Multiple PDN Possibility to use different PDNs for multiple network access and services
- Group management Band lock, Used band status display
- SIM inactivity protection service Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked
- SIM PIN code management SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
- APN Auto APN
- Bridge Direct connection (bridge) between mobile ISP and device on LAN
- Transfer Router assigns its mobile WAN IP address to another device on LAN
- Framed routing Framed routing: support an IP network behind 5G UE
- Wireless connection
- Wireless mode 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
- Wifi protection WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
- SSID/ESSID ESSID stealth mode
- Wi-Fi users Up to 150 simultaneous connections
- Wireless features Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
- Wireless MAC filter Allowlist, blocklist
- Wireless QR code generator Once scanned, a user will automatically enter your network without needing to input login information
- TravelMate Forward Wi-Fi hotspot landing page to a subsequent connected device
- Ethernet
- WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- LAN 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- Network
- Route Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
- Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
- VoIP gateway support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Communication monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Firewall Port forward, traffic rules, custom rules, TTL target customization
- Firewall status page View all your Firewall statistics, rules, and rule counters
- Port management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
- Network topology Visual representation of your network, showing which devices are connected to which other devices
- DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
- QoS/Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
- DDNS Supported > 25 service providers, others can be configured manually
- DNS over HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
- Network backups Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic failover
- Load balancing Balance Internet traffic over multiple WAN connections
- Public Internet access point Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorization, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and optionality to upload and download customized hotspot themes
- SSHFS Possibility to mount remote file system via SSH protocol
- VRF support Initial virtual routing and forwarding (VRF) support
- Traffic management Real-time monitoring, wireless signal charts, traffic usage history
- Security
- Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal External RADIUS users authentication, IP login attempts block, time-based login blocking, built-in random password generator
- Firewall Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
- Burglary prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLANs Port and tag-based VLAN separation
- Mobile quota control Mobile data limit, customizable period, start time, warning limit, phone number
- WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
- Access control Flexible access control of SSH, Web interface, CLI and Telnet
- Generating SSL certificates Let's Encrypt and SCEP certificate generation methods
- 802.1x Port-based network access control client
- VPN
- OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
- OpenVPN encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,
- IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
- GRE GRE tunnel, GRE tunnel over IPsec support
- PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
- Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program's code
- DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
- SSTP SSTP client instance support
- ZeroTier ZeroTier VPN client support
- WireGuard WireGuard VPN client and server support
- Tinc Tinc offers encryption, authentication and compression in its tunnels. Client and server support.
- Tailscale Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol
- OPC UA
- Supported modes Client, Server
- Supported connection types TCP
- MODBUS
- Supported modes Server, Client
- Supported connection types TCP, USB
- Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
- Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
- DATA TO SERVER
- Protocol HTTP(S), MQTT, Azure MQTT
- Date to server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature
- MQTT Gateway
- Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker
- DNP3
- Supported modes DNP3 Station, DNP3 Outstation
- Supported connection TCP, USB
- DLMS/COSEM
- DLMS Support DLMS - standard protocol for utility meter data exchange
- Supported modes Client
- Supported connection types TCP
- COSEM Allows to scan meter COSEM objects for automatic detection and configuration
- API
- Teltonika Networks Web API (beta) support Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
- Monitoring Management
- WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
- PHOTO Firmware update from server, automatic notification
- SSH SSH (v1, v2)
- SMS SMS status, SMS configuration
- Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
- Email Receive email message status alerts of various services
- TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
- MQTT MQTT Broker, MQTT publisher
- SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
- JSON-RPC Management API over HTTP/HTTPS
- MODBUS MODBUS TCP status/control
- RMS Teltonika Remote Management System (RMS)
- IoT platforms
- ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
- Cumulocity - Cloud of Things Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
- Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
- AWS IoT Core Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality
- System Characteristics
- Processor MediaTek, Dual-core, 880 MHz, MIPS1004Kc
- RAM 256MB, DDR3
- FLASH storage 16 MB serial NOR flash, 256 MB serial NAND flash
- Settings
- WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
- PHOTO Update FW
- RMS Update FW/configuration for multiple devices at once
- Remembering settings Update FW without losing current configuration
- Factory reset A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
- FIRMWARE CUSTOMIZATION
- Operating system RutOS (OpenWrt based Linux OS)
- Languages Busybox shell, Lua, C, C++
- Developer tools SDK package with build environment provided
- GPL customization You can create your own custom, branded firmware and web page application by changing colors, logos, and other elements in our firmware to fit your or your clients' needs
- Package Manager The Package Manager is a service used to install additional software on the device
- Location setting
- GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
- Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
- NMEA NMEA 0183
- NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
- Server software Supported server software TAVL, RMS
- Geofences Configurable multiple geofence zones
- USB
- Data transfer USB 2.0
- Usage Samba share, USB-to-serial
- External devices Possibility to connect external HDD, flash drive, printer, USB-serial adapter
- Internal memory format FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
- Input / Output
- input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
- output 1 x Digital Output, Open collector output, max output 30 V, 300 mA
- Events Email, RMS, SMS
- I/O switch Allows to set certain I/O conditions to initiate event
- Energy
- Connection 4-pin industrial DC power socket
- Input voltage range 9 - 50 VDC, reverse polarity protection, surge protection > 51 VDC 10us max
- PoE (passive) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
- Energy consumption Idle: < 4W, Max: < 14W
- Physical interfaces
- Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
- I/Os 1 x Digital Input, 1 x Digital Output on 4-pin power connector
- Status LED indicators 4 x WAN type, 3 x Mobile connection type, 3 x Mobile connection strength, 10 x Ethernet port status, 1 x Power, 2 x 2.4G and 5G Wi-Fi
- SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V
- Energy 1 x 4-pin power connector
- Antennas 4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNNS
- USB 1 x USB A port for external devices
- Reloading Reboot/User default reset/Factory reset button
- Other 1 x Grounding screw
- Physical specifications
- Housing material Anodized aluminum housing and panels
- Dimensions (W x H x D) 132 x 44.2 x 95 mm
- Weight 530g
- Installation DIN rail, wall mount, flat surface (all require additional kit)
- Work environment
- Operating temperature -40°C to 75°C
- Humidity 10% to 90% non-condensing
- IP rating IP30
- Regulatory Type Approvals
- Regulation CE, UKCA, CB, FCC, IC, PTCRB, WEEE, RoHS, REACH
- Operator ATT, T-mobile
- EMC Emissions Immunity
- Standards CE/UKCA:
- ESD EN 61000-4-2: 2009
- Radiated Immunity EN IEC 61000-4-3:2020
- EFT EN 61000-4-4: 2012
- Surge Immunity (AC Mains Power Port) EN 61000-4-5: 2014 + A1:2017
- CS EN 61000-4-6:2014
- DIP EN IEC 61000-4-11:2020
- RF
- Standards CE/UKCA:
- RF Exposure
- Standards CE/UKCA:
- Security
- Standards CE/UKCA: EN IEC 62368-1:2020 + A11:2020
| Weight | 0.888 kg |
