Window cleaning robot Reach F19-05

Discover the next generation of window cleaning robot that will take care of your windows for you. Because automatic edge detection it safely cleans not only regular windows with frames, but also frameless windows, glass partitions, display cases and shower glass - a feature that distinguishes this model from many others.

The robot is even equipped 4 water spray hole system, which automatically moistens the surface during cleaning, and intelligent route planning ensures thorough and efficient cleaning of every corner of the glass. Control the robot with the remote control or Tuya Smart app and enjoy clean windows without any extra effort.

Features

Suitable for frameless windows

• Automatic glass edge detection.


• Safely cleans frameless windows, glass partitions and display cases.


• Also perfect for regular windows with frames.

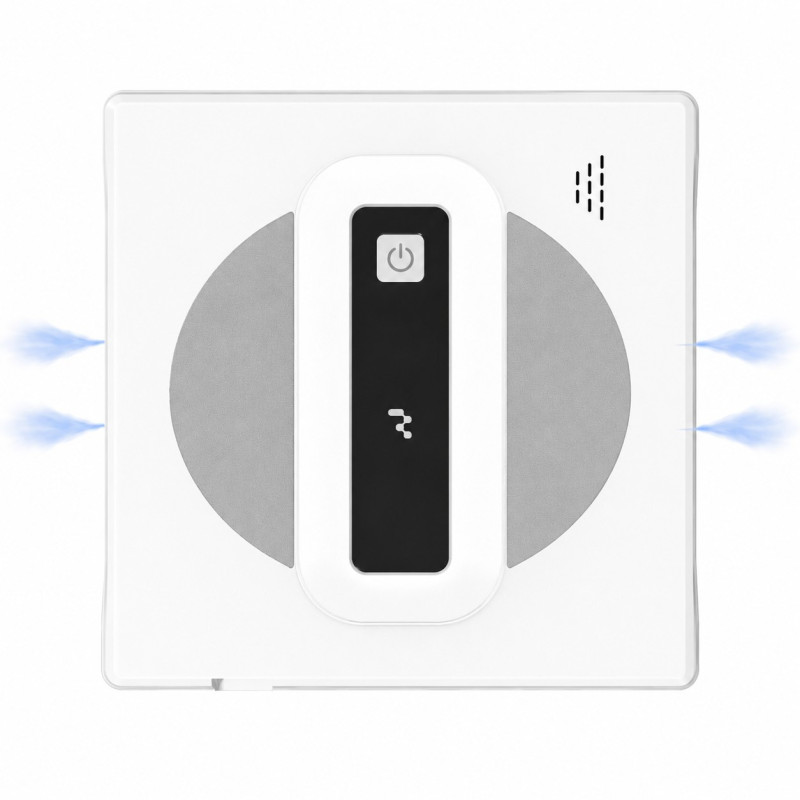

4 water spray hole system

• 4 nozzles (2 on each side) automatically spray water in the direction of movement.


• Evenly moistens the glass and helps remove dirt more effectively.


• Automatic and manual water spray modes.

Fast and efficient cleaning

• It takes approximately one square meter to clean. 3.5 minutes.


• Intelligent route planning allows you to clean the entire surface without repetitions.

Powerful vacuum suction system

• 2400-2800 Pa suction power.


• Adheres reliably to vertical glass surfaces.

Smart cleaning modes

• N-mode - vertical cleaning.


• Z-mode - horizontal cleaning.


• N/A mode - deep cleaning.

Control by phone and remote control

• Control via the Tuya Smart app.


• The included remote control allows you to select the cleaning mode, direction of movement, and water spray.

Safe use

• Integrated UPS protection - in the event of a power outage, the robot remains on the glass until 20 minutes.


• For added safety, a safety rope is included.

Suitable for various surfaces

• For windows


• For frameless windows


• For mirrors


• For glass doors


• For showcases


• For shower cubicle glass


• For tiles

Specification:

Power supply: AC 100-240V, 50/60Hz

Power: 72W

Water capacity: 100 ml

Suction power: 2400-2800 Pa

Cleaning speed: 3.5 min/m²

Built-in battery: 650 mAh

UPS protection: up to 20 min.

Noise level: 65-70 dB

Control: Tuya Smart app / remote control

Cleaning modes: N, Z and N/Z

Water spray: automatic and manual (4 spray holes)

Automatic edge detection: yes (suitable for frameless windows)

Robot dimensions: 21.6 × 21.6 × 7.6 cm

Weight: 1.3 kg

Included

• Window cleaning robot


• Microfiber cleaning cloths (4 pcs.)


• Remote control


• Power adapter


• Power cord


• Batteries AAA (2 pcs.)

How to use?

1. Attach the microfiber cleaning cloth to the robot.


2. Fill the water tank with clean water or a cleaning fluid recommended by the manufacturer.


3. Connect the power cord.


4. Attach the safety rope.


5. Place the robot on the glass and turn it on.


6. With the remote control or Tuya Smart Select the desired cleaning mode in the app.


7. The robot will automatically plan a cleaning route and start cleaning the surface.


8. During cleaning, the robot will automatically spray water through 4 nozzles and thoroughly clean the entire surface.


9. If dirt or streaks are still visible on the glass after the first cleaning, replace or wash the microfiber cloths and repeat the cleaning.


10. After cleaning, the robot will return to its original position so that it can be conveniently removed from the glass.


11. After use, remove the robot, empty the water tank (if necessary) and clean the microfiber cloths, nozzles and sensors.

Important information

• This model is suitable for both framed and frameless windows.


• Always use a safety rope.


• The robot operates while connected to the mains, and the integrated battery is only intended for protection in the event of a power outage.


• Fill the water tank with clean water.


• It is recommended to clean the cloths, nozzles, sensors and drive wheels after each use.
