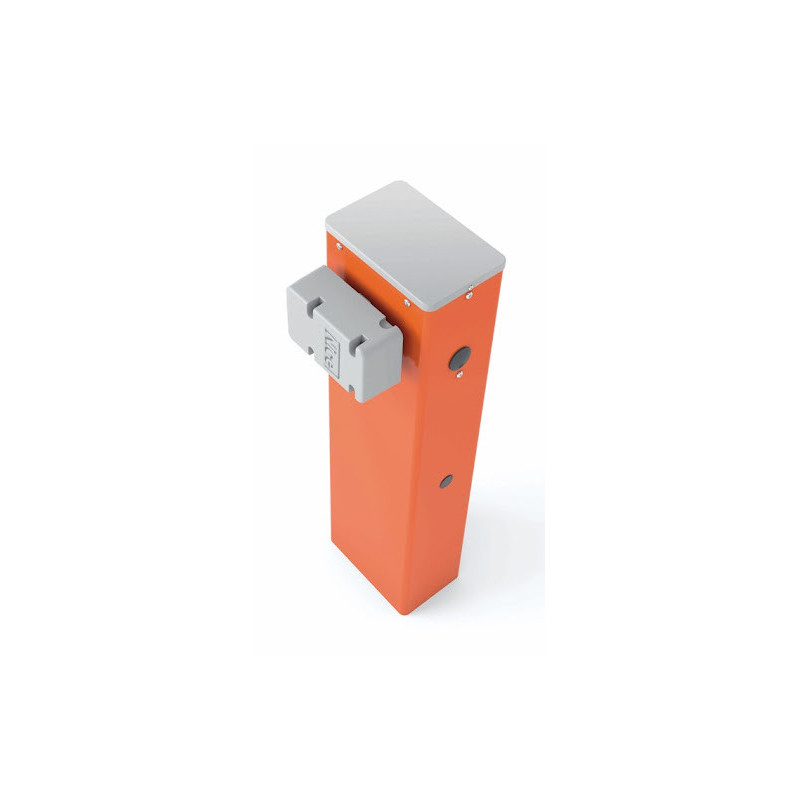

Road barrier NICE Widem (up to 4m)
Product reference: 26-AVWIDEM
  • Type: Road barrier
  • Model: NICE Widem
  • Mechanism: Electromechanical
  • Maximum length: up to 4 m
  • Cycles per hour: 300
  • Opening speed: 3.5 s
  • Application: For intensive use
  • Drive: 24 VDC
  • Control unit: Integrated

Road barrier NICE Widem (up to 4m)

Product reference: 26-AVWIDEM
  • Type: Road barrier
  • Model: NICE Widem
  • Mechanism: Electromechanical
  • Maximum length: up to 4 m
  • Cycles per hour: 300
  • Opening speed: 3.5 s
  • Application: For intensive use
  • Drive: 24 VDC
  • Control unit: Integrated
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
74606
Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • General information
  • Model WIDE
  • Rod length Up to 4 m (modular aluminum bar)
  • Usage Barrier gate operator system for medium-length entrances (eg parking lots, access roads)
  • Engine type 24 VDC gearmotor, non-reversible, with integrated control unit
  • Energy consumption 300W
  • Power source 230 VAC 50/60 Hz input, 24 VDC motor output
  • Current draw 1.1 A
  • Opening speed 3.5 seconds (adjustable electronically)
  • Torque 140 Nm
  • Duty cycle Up to 300 cycles/hour
  • Protection class IP54
  • Operating temperature -20°C to +55°C
  • Housing material Galvanized steel with orange polyester powder coating (WIDEM); also available in white, grey, or stainless steel (WIDEMWH, WIDEMGR1, WIDEMI)
  • Dimensions (L x W x H) 320 x 205 x 1000 mm
  • Weight 46 kg
  • Control unit Located in the bottom of the body, single board for all Wide versions, with fast-access front panel and joystick-based setup
  • Safety features Encoder-based movement control, obstacle detection, crush protection during opening/closing
  • Release mechanism Triangular metal key, protected from external elements
  • Installation Bar can be installed on either the left or right side
  • Backup battery Compatible with PS324 (24 V battery with integrated charger)
  • Connectivity and Smart Features BlueBUS, BiDi, Yubii, Solemyo (solar), Opera; programmable via MyNice Pro App, Bidi-WiFi, Pro-View
  • Standby mode Automatic power-saving when idle
  • Compatibility Integrated radio receiver; compatible with ERA INTI, ERA ONE, MYGO, DOMÌ transmitters, BlueBUS photocells, ERA FLOR series, ELDC lights, and loop detectors (LP21, LP22)
  • Standard accessories support XBA19 (aluminum bar), XBA4 (signal light), WIA10 (swivel attachment), SIA1 (anchoring base), WA12 (movable support), WA11 (joint for bars)
  • Certificates CE compliant

Weight43 kg
