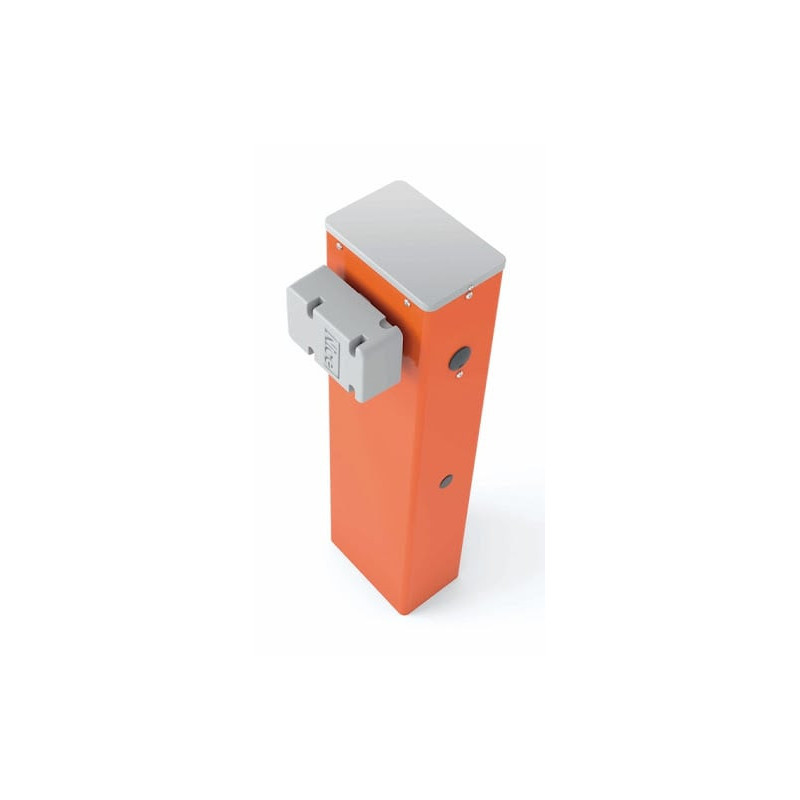

Road barrier NICE WIDEL (up to 7m)
Product reference: 26-AVWIDELR10
  • Type: Road barrier
  • Model: NICE WIDEL
  • Mechanism: Electromechanical
  • Maximum length: up to 7 m
  • Cycles per hour: 200
  • Opening speed: 5 s
Road barrier NICE WIDEL (up to 7m)

Road barrier NICE WIDEL (up to 7m)

Product reference: 26-AVWIDELR10
  • Type: Road barrier
  • Model: NICE WIDEL
  • Mechanism: Electromechanical
  • Maximum length: up to 7 m
  • Cycles per hour: 200
  • Opening speed: 5 s
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
89808 €
Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • General information
  • Model WIDE
  • Rod length Up to 7 m (composed of 3 to 5 modular aluminum bars with expansion joints)
  • Usage Ideal for large vehicle entrances in industrial zones, logistics areas, and wide roadways
  • Engine type 24 VDC gearmotor, non-reversible, integrated control unit
  • Energy consumption 300W
  • Power source 230 VAC 50/60 Hz input, 24 VDC motor output
  • Current draw 1.1 A
  • Opening speed 6 to 10 seconds (adjustable electronically)
  • Torque 300 Nm
  • Duty cycle Up to 300 cycles/hour
  • Protection class IP54
  • Operating temperature -20°C to +55°C
  • Housing material Galvanized steel with orange polyester powder coating (WIDEL); also available in white (WIDELWH), gray (WIDELGR1), and stainless steel (WIDELI)
  • Dimensions (L x W x H) 320 x 205 x 1000 mm
  • Weight Approx. 48 kg
  • Control unit Integrated at the bottom of the cabinet, joystick interface, compatible with full Wide series
  • Safety features Obstacle detection via encoder, electromechanical limit switch, self-diagnostic features, maximum impact resistance
  • Release mechanism Triangular metal key release, protected from the elements and manipulation
  • Installation Bar can be installed on either right or left side
  • Backup battery Compatible with PS324 (24 V battery + integrated charger)
  • Connectivity and Smart Features BlueBUS, BiDi, Yubii, Solemyo (solar kit), Opera system; programmable via MyNice Pro App, BiDi-WiFi, Pro-View
  • Standby mode Automatic low energy consumption when idle
  • Compatibility Works with ERA INTI, ERA ONE, MYGO, DOMÌ transmitters, BlueBUS sensors, ELDC lights, loop detectors LP21 and LP22
  • Accessories supported XBA19 (aluminum bar modular segments), XBA4 (signal light), WIA10 (swivel), SIA1 (anchoring base), WA12 (bar support stand), WA11 (bar joint)
  • Certificates CE compliant

Weight43 kg
