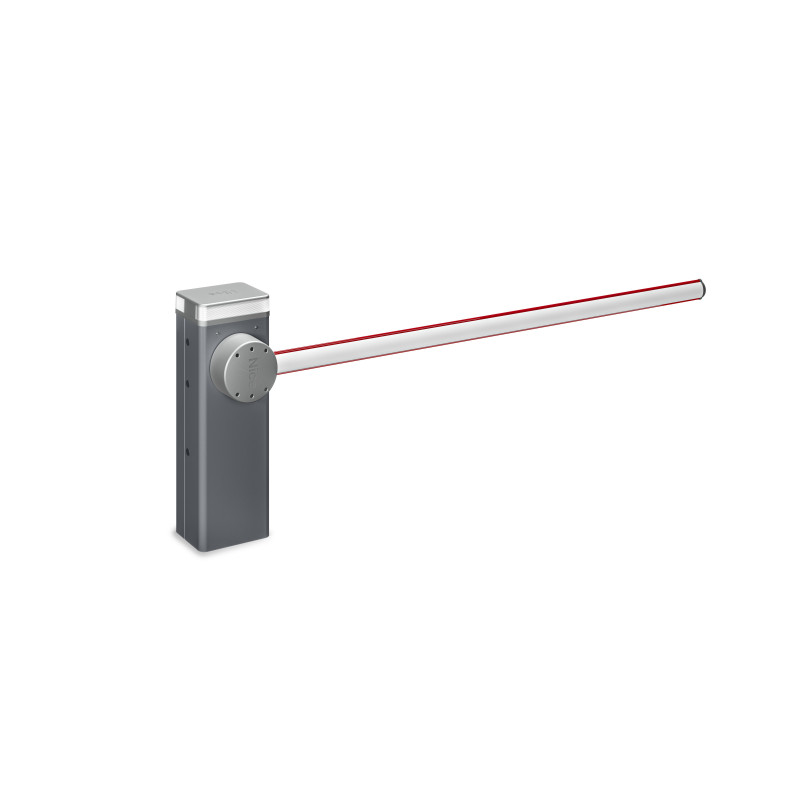

Road barrier NICE M7BAR (up to 7m)
Product reference: 26-AVM7BARR10
  • Type: Road barrier
  • Model: NICE M7BAR
  • Maximum length: up to 7 m
  • Cycles per hour: 200
  • Opening speed: 6 / 10 s
  • Voltage: 230 VAC / 24 VDC
  • IP class: IP54
  • Torque: 300 Nm
  • Power: 110W
Road barrier NICE M7BAR (up to 7m)

Road barrier NICE M7BAR (up to 7m)

Product reference: 26-AVM7BARR10
  • Type: Road barrier
  • Model: NICE M7BAR
  • Maximum length: up to 7 m
  • Cycles per hour: 200
  • Opening speed: 6 / 10 s
  • Voltage: 230 VAC / 24 VDC
  • IP class: IP54
  • Torque: 300 Nm
  • Power: 110W
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
1 01902 €
Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • General information
  • Model M7BAR
  • Rod length 7 years
  • Usage Electromechanical barrier system for intensive vehicle access control in large entrances and wide roadways
  • Engine type Non-reversible 230 VAC gearmotor with integrated 24 VDC control system
  • Energy consumption 150W
  • Power source 230 VAC 50/60 Hz input, 24 VDC motor output
  • Opening speed 3 to 8 seconds (adjustable)
  • Torque 280 Nm
  • Duty cycle Up to 500 cycles/hour
  • Protection class IP54
  • Operating temperature -20°C to +55°C
  • Housing material Steel case with cataphoretic treatment and polyester powder coating
  • Color choices Orange (RAL2004), White (RAL9010), Gray (RAL7015), Stainless steel (INOX)
  • Dimensions (L x W x H) 400 x 299 x 1215 mm
  • Weight 90 kg
  • Control unit Integrated control board with display and joystick-based user interface
  • Smart features Supports master/slave functionality for dual-barrier synchronization
  • Safety features Encoder-based position detection, obstacle sensing, electromechanical limit switches, integrated diagnostics
  • Power failure mode Optional PS224 backup battery (24 VDC) ensures operation during power outages
  • Standby mode Automatic energy-saving mode when idle
  • Release mechanism Manual key release (installable on either side)
  • Connection BlueBUS, BiDi, Yubii, Solemyo (solar), and Opera; programmable with MyNice Pro App or BiDi-WiFi
  • Accessories Supports rubber edge (XBA3), signaling light (XBA4), swivel mount (XBA10), articulated joint (XBA11), aluminum bar (XBA15), reflective tape (WA10), gear rack (WA13), loop detectors (LP21, LP22)
  • Certificates CE compliant

Weight85 kg
