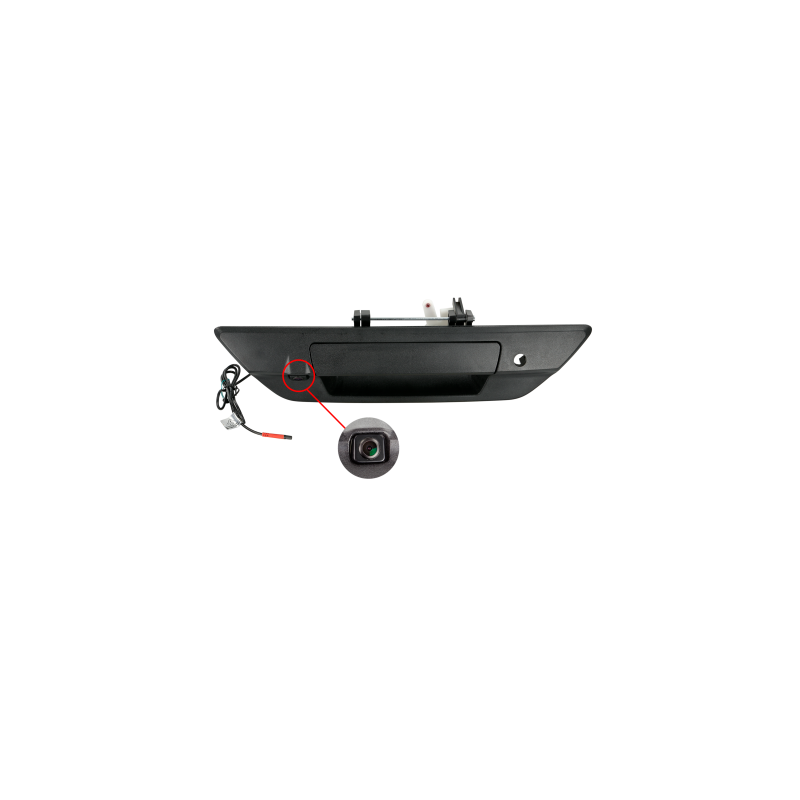

Reversing camera dedicated to Toyota Hilux 06 / 2016 - 2020 tailgate handle.

Toyota Hilux (AN1P) Reversing Camera 06.2016 - 09.2020Toyota Hilux (AN1P) 10.2020 -2022 to replace the rear door handle handle with guide lines.Note: All acv cameras are designed for +12V continuous operation. Camera operating voltage: +3V connection without a voltage converter damages the camera connection.Red +12V switched stable load fuse.Black ground body direct.Vehicles from year xa0 2016 - 2017 may not be compatible.xa0Product characteristics camera: xa0 Construction: plastic Color: black Extras: guide lines via jumper Image sensor: 1/3" CMOS TV System: NTSC Min.Lux: 0.1 Lux Resolution: 976 (H) x 592 (V) TV lines: 600 Lens angle: Diagonal 160° Viewing angle: horizontal 110° vertical 70° + 5° Protection class: IP67 Terminal: 4-pin mini plug (male) 5.2 mm Power supply: +12V DC + 10% Current consumption: 80mA Operating temperature: -20°C - 70°C Storage temperature: -40°C - 80°C Dimensions: L / B / 450.7mm / 109.9mm xa0 cable with 4-pin mini plug (male) 5.2 mm 1 jumper 6.5 m extension cable with 3 m power cable for connection to reversing lights and insert cable for connection when powered from the device xa0 4-pin mini plug (female) 10 mm and plug (male) 5.2 mm 0.2 m fuse and video connector (RCA) Accessories Mounting: xa0 connecting the camera to the interfaces > Closed solid state relay 2V-12V/1.5A max: 40-AD-REMOTE connecting the camera to the reversing light > Reversing camera Reversing camera voltage regulator Switch signal: 771000-6100 Optional accessories: Camera extension cable for ACV camera 5m: 771000-6305 Extension cable for ACV camera 10m: 771000-6310 Extension cable for ACV camera 15m: 771000-6315
