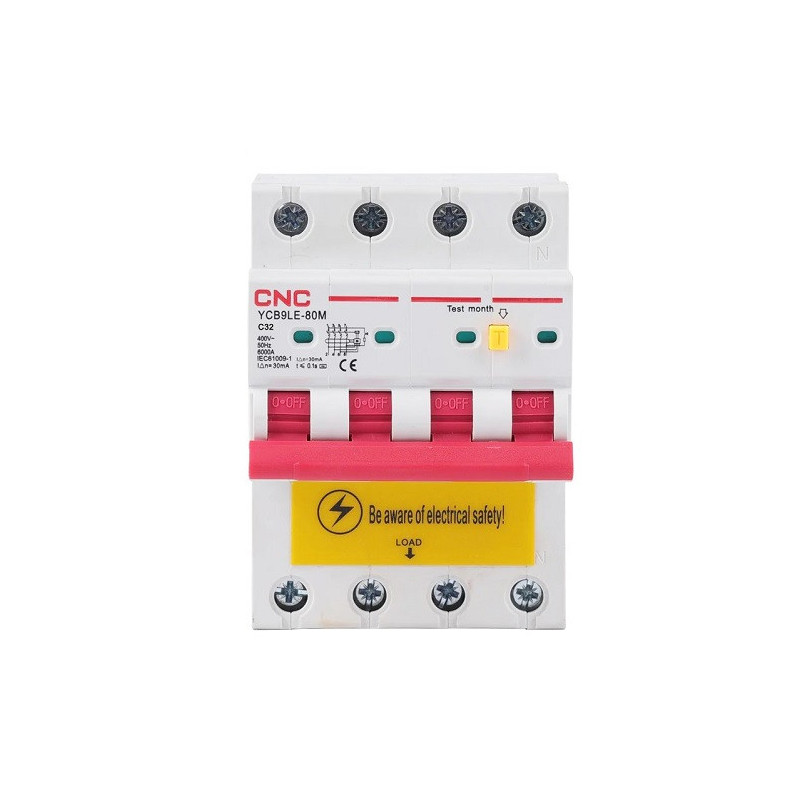

Residual current relay with circuit breaker, 4P, 32A, class C, 30mA, 6kA

Earth leakage relay with circuit breaker, 4-pin, 32A, class C, 30mA, 6kA Features: A leakage relay with a circuit breaker protects people from life-threatening electric shock and electrical circuits from short circuits, overloads and fire hazards. The leakage relay is used in damp rooms where the electrical installation is not reliably protected (in the bathroom, kitchen, outdoors, garage, for electric heaters, pumps, etc.). Safe terminal block. Resistance to flame, high temperatures and impacts. Contact position indication (red indicates that the contact is closed, green indicates that it is open). Note: The leakage relay must be tested regularly, at least once a month. Technical data: Number of contacts: 4. Rated current (In): 32 A. Class: C. Rated voltage (Ue): AC 230 V. Permissible leakage current: 30mA. Trigger time: = 0.1s. Insulation voltage (Ui): 500 V. Frequency: 50/60 Hz. Rated short-circuit breaking capacity (Icn): 6000 A. Rated impulse withstand voltage (Uimp): 4000 V. Mechanical life: 10,000 cycles. Electrical life: 4000 cycles. Safety class: IP20. Connection type: cable / pin-type bus. Wire/busbar cross-sectional area: up to 35mm². Connection: from above. Installation: on DIN rail EN 60715 (35mm). Operating temperature: -25°C~+70°C. Dimensions: 82 x 72 x 78 mm. Standards: IEC 61009-1 / EN 61009-1. Warranty:24 months
