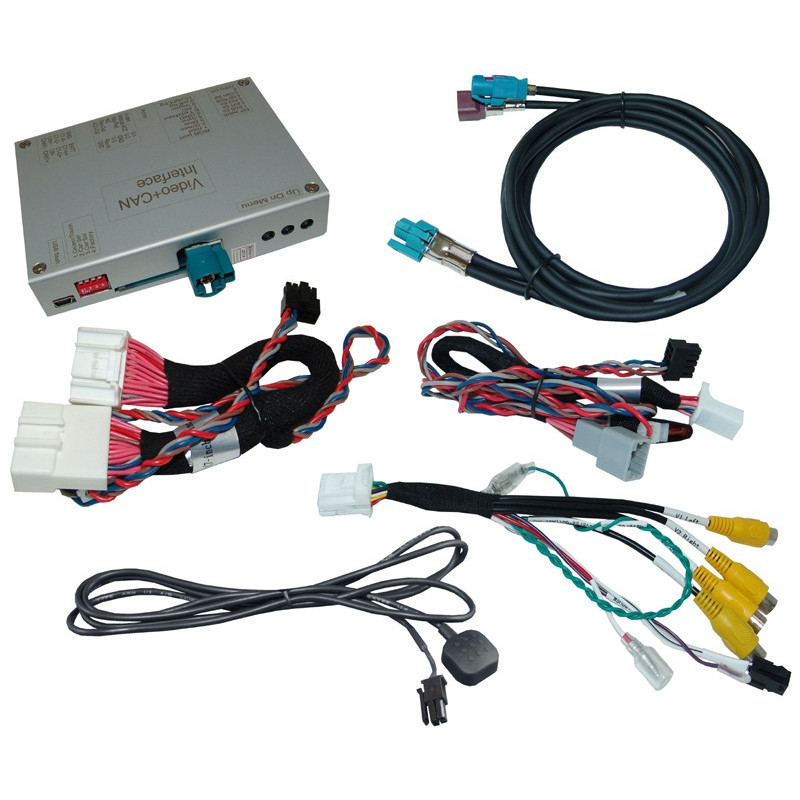

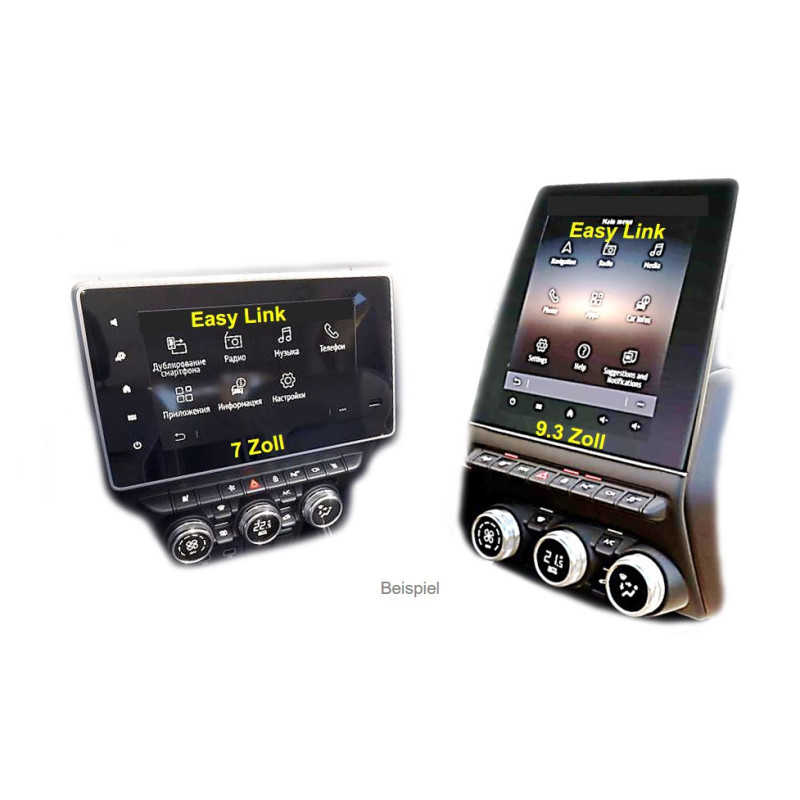

Renault EasyLink 2020 Rear View Camera Adapter - Easy Link Navigation with 7 or 9.3-inch RL4-ELINK Monitor

allows you to connect a rear view camera, an automatic front camera and two other video sources (e.g. USB player, DVB-T2 tuner, ...) to the vehicle manufacturer's infotainment system. PRODUCT FEATURES:

• Video feeder for factory infotainment systems
• 1 FBAS rear view camera video input
• 1 FBAS front camera video input
• 2 FBAS video inputs for upgraded devices (e.g. USB player, DVB-T2 tuner, ...)
• Automatic switching to rear view camera input when reverse gear is engaged;
• Automatically switches to the front camera after reverse gear for 10 seconds
• Activate image while driving (ONLY when feeding video)
• PAL and NTSC compatible video inputs

• Renault Captur from the 2020 model year,
• Renault Clio V from the 2020 model year,
• Renault Espace from the 2020 model year,
• Renault Talisman from the 2020 model year,
• Renault Twingo from the 2020 model year,
• Renault Zoe from model year 2020 and other vehicles with Easy Link with a 7-inch or 9.3-inch monitor

• The interface does NOT provide audio signals
• The existing factory AUX audio input or FM modulator can be used to power the audio signals.
• If 2 AV sources are connected, additional electronics are required for audio switching.

• Automatic switching to RFK only as long as reverse gear is engaged.
• Additional electronics are required to delay downshifts.

• Switching to the front camera occurs automatically after disengaging reverse gear for 10 seconds.
• It is also possible to manually switch to the front camera using the button.

• Image Channel: 4-pin HSD
• Electricity and CAN bus: Plug Play (depending on vehicle)
• Video inputs (2x): RCA sockets
• Reversing camera input: Cinch socket
• Front camera input: Cinch socket

• Operating voltage: 12V DC (7~25V)
• Quiescent current: 8mA
• Power consumption: 320mA
• Video input: 0.7 ~ 1V
• Video input formats: PAL/NTSC
• Operating temperature: -40°C to +85°C
• Video box dimensions: 118 x 25 x 104 mm (W x H x D)

Renault EasyLink 2020 Reversing Camera Adapter -> Easy Link Navigation with a 7- or 9.3-inch Monitor – the simplest way to connect a reversing camera! Reversing cameras are becoming increasingly popular thanks to their extensive functionality. They make even the simplest maneuvers even easier! However, when choosing this solution, you need to invest in the right way to connect this type of device. If you're looking for the best option, you should check out our selection. The Renault EasyLink 2020 Reversing Camera Adapter -> Easy Link Navigation with a 7- or 9.3-inch Monitor is a proven product that will surely meet your expectations! Look for a trusted seller! When you choose Car-tronic, you can be sure you'll receive a top-quality product. It's time to trust a trusted distributor! We offer the best manufacturers!
