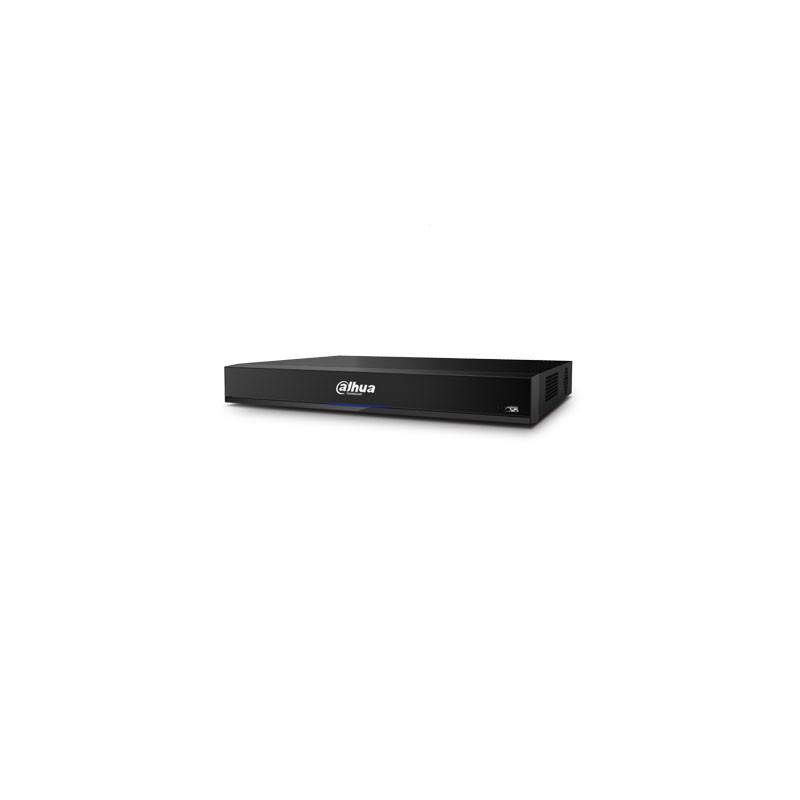

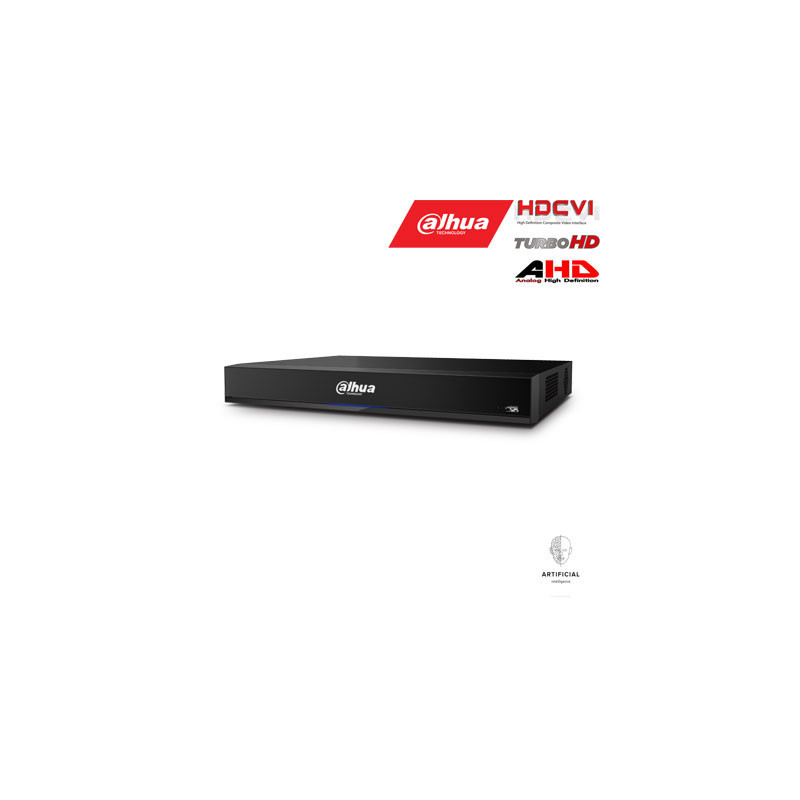

Pentabrid device8 cameras HDCVI up to 8MP, + 56 IP cameras up to 12MP, face recognition function, ANPR

Short description:
Pentabrid 8-camera HD-CVI/ AHD/TVI or 8 analog and + 56 IP camera video recorder (each channel can record HDCVI/AHD or analog cameras up to 8MP and + 56 IP cameras up to 12MP), HDCVI max. video recording resolution 8MP, each channel after 15fps (real-realtime), 56 IP cam. max. video recording resolution up to 12Mp, analog cam. max. video recording resolution 960H 960x576, for each channel 25fps, pentaplex, H.265+/H.265/H.264+/H.264, 2 HDMI, LAN, 2 HDD, IVS, P2P, POS system, ANPR number plate capture algorithm, face recognition algorithm, AI (artificial intelligence), IVS, ONVIF, free program for video surveillance via computer, mobile phone, tablet, model; DH-XVR8204A-4K-I
Brief technical characteristics:
• Pentabrid 8-channel HD-CVI / AHD / /TVI / Analog + IP video recorder recording 1080P/720P HD-CVI and + 56 IP 12MP cameras, HDCVI max. video recording resolution 8MP for each channel 15fps, analog cameras. recording resolution 960H 960x756 after 25fps;
• Each channel can support HDCVI / AHD / TVI or Analog cameras and + 56 IP cameras;
• Maximum 4K video transmission via coaxial cable without loss of quality - max. distance up to 500m, 1080P video transmission distance via coaxial cable up to 800 meters, 720P video transmission distance via coaxial cable up to 1200 meters, 1080P video transmission distance via UTP cable up to 300 meters, 720P video transmission distance via UTP cable up to 450 meters (HDCI - High Definition Composite Video Interface);
• IVS functions: line crossing, perimeter intrusion, image change, missing object detection, appearing object detection, face detection, object tracking, people flow statistics, movement intensity registration (heat map);
• ANPR number plate detection function;
• Face recognition function;
• POS, N+M systems;
• Convenient graphical user interface, controlled by mouse, remote control or buttons on the device;
• Software: Linux GUI system;
• New generation processor;
• H.265+/H.265/H.264+/H.264 stream compression technology;
• Pentaplex - the following operations are performed simultaneously: recording, live image display, recording review, recording copying, device control, remote access via network;
• Remote control and live monitoring via Ethernet (WEB): IE, chrome, firefox, safari;
• Free software for device management, video viewing and archiving, using a computer network or the Internet;
• Free program that allows the user to monitor and view recordings from up to 144 cameras from different objects;
• Free program for monitoring via mobile phone or handheld, tablet computer (DMSS mobile phone surveillance software) suitable for phones: IPHONE, WINDOWS MOBILE, ANDROID, IPAD, GALAXY TAB, etc.;
• Supported resolution HDCVI:4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps,720P@25/30fps;
• Supported resolution AHD/ TVI :5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps;
• Supported resolution IP cameras :12M(4000×3000), 8M(3840×2160), 6M(3032x2008),5M(2560×1920), 3M(2048×1536), 1080P(1920×1080), 720P(1280×720), D1(704×576), CIF(352×288);
• Supported resolution ANALOG :960H(960×576/960×480)/D1/4CIF(704×576/704×480)/CIF(352×288/352×240)/QCIF(176×144/176×120);
• Recording speed: Main stream: 4K(1~15fps); 6MP/5MP(1~20fps);4MP/3MP/1080P/720P/960H/D1/CIF (1~25fps), second srautas:960H(1~15fps);D1/CIF(1~25/30fps);
• Recording speed IP: Main stream: 12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P (1~25fps), Additional stream: CIF/QCIF (1~25fps);
• Recording speed ANALOG: Main stream: 960H/D1/HD1/2CIF/CIF (1~25fps), Additional stream: CIF/QCIF (1~25fps) for each channel);
• Bit Rate (data flow rate) 32Kbps ~ 8192Kbps for each channel, IP maximum data flow rate up to 256Mbps;
• Image quality: CBR, VBR 1 ~ 6 levels;
• 'Motion stream' function - that is: when motion is detected, it records at maximum resolution (e.g. max. frames per second), when there is no motion, it records at normal resolution (minimum frames per second) - this saves data flow and space;
• Max CVI / AHD / TVI camera inputs 8;
• Max analog inputs 8;
• Max IP camera inputs 8+56=64;
• Automatic IP camera search;
• Supported IP cameras:Dahua, Arecont Vision, AXIS, Canon, Dynacolor, Panasonic, Brickom, Vivotek, Honeywell, Sunell, CP PLUS, CNB, Tyco, Pelco, Surveon, Shany, PELCO, BOSH, SAMSUNG, SANYO, SONY, ONVIF;
• Video inputs: 8 BNC (HDCI - High Definition Composite Video Interface) or analog inputs 960H;
• HDMI 1 4K : HDMI 1:3840×2160, 2560×1440, 1920×1080, 1280×1024,1280×720;
• HDMI 2 : 1920× 1080, 1280× 1024, 1280× 720, 1024× 768;
• 1 HDMI input screen split: 1/4/8/9/16/25/36;
• 2 HDMI input screen split: 1/4/8/9;
• 1 VGA output: 1920×1080, 1280×1024, 1280×720, 1024×768;
• Audio input: 1 channel BNC (for two-way talk);
• Audio output: 1 channel BNC (for two-way talk);
• Microphone input: 4 channels BNC;
• HDD type: SATA III;
• Max. number of hard drives (HDD): 2;
• Max. 1 HDD capacity up to: 10TB;
• USB connector: total 3 pcs. at the back 2vnt. USB2.0, front 1vnt USB3.0;
• Recording copying: USB 3.0 / USB HDD / LAN;
• RS-485 connection: (dome camera (PTZ) connection;
• 2vnt. (Ethernet -RJ45) 10/100M/1000 Mb/s network socket for connecting to the Internet;
• Network protocols: HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P;
• 4G/3G/WiFi module support;
• Remote alarm notification: E-mail (sends photo), FTP server;
• Motion detection: with programmable areas and sensitivity for each channel;
• Motion detection: 396(22×18) detection zones, 4 possible regions with different sensitivity levels, sensitivity from 0 to 100, noise threshold from 0 to 100;
• Control options: LAN, computer mouse;
• Recording interval: 1 ~ 120 min. (default: 60 min.), according to the preparation results: 1 ~ 30 seconds, after recording: 10 ~ 300 sec.;
• Recording modes: Manual, Scheduled (Regular (Continuous), MD (Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop;
• Record search: by date/time or events (motion detection, alarm);
• Programmable recording schedule (time/date, motion detection, continuous, according to graphics);
• Video Splitting: Full screen or divided into 8 parts, or when the camera motion detection is triggered, the image meta is displayed across the entire window;
• Automatic video channel switching;
• Playback functions: play, pause, stop, rewind, fast forward, slow forward, next file forward, repeat, previous camera, archive selection, Digital Zoom zoom: infinite;
• Recording playback channels: 1/4/9/16 synchronous playback;
• SNAPHOT: this function takes a snapshot, kai an alarm occurs;
• Masked camera option, camera lock option;
• Color, brightness and contrast settings for each camera;
• Other functions: Pre- and post-alarm recording, camera name setting;
• Number of users: max. 128 (possibility to grant different rights to each user);
• Time synchronization: automatic time synchronization via NTP server;
• Automatic summer/winter time adjustment;
• System recovery after power failure;
• Ability to update IP camera software (firmware);
• RS-485 connector: (dome camera (PTZ) connection);
• Alarm inputs: 16;
• Alarm inputs: 6;
• Maitinimas:DC12V/5A,50/60Hz;
• Energy consumption: 20W (without HDD);
• Humidity: 10~90%RH;
• Operating temperature: -10°C ~ +55°C;
• Dimensions: 1U, 375mm×328mm×50mm;
• Weight: 2.35KG (without HDD);
