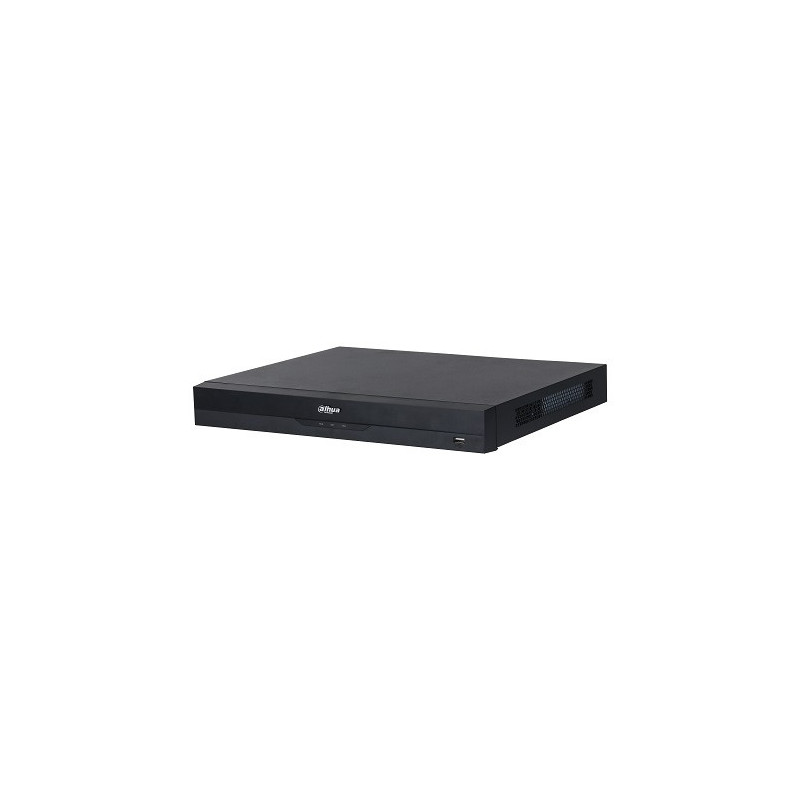

IP recorder NVR4216-16P-EI, 16 cameras 4K 16MP, 2HDD, IVS, H.265, 16 PoE interfaces

IP recorder NVR4216-16P-EI, 16kam . 4K 16MP, 2HDD, IVS, H.265, 16 PoE interfaces
16-channel 4K video recorder, possible recording resolutions: 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, unlimited number of frames, maximum data rate up to 256Mbps, integrated PoE hub - 16 PoE interfaces; pentaplex, Smart H.265+/H.265/Smart H.264+/H.264/MJPEG, 2HDD, 1-kan . VGA, 1-kan . HDMI (up to 3840×2160), SATA lll, RS-485 connector, IVS functions, (for connecting managed cameras), SMD Plus, face capture function, face recognition function, AI (Artificial Intelligence). Supports ONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDK standard. Security Baseline 2.3 version. Model: NVR4216-16P-EI .
Brief technical characteristics:
• Digital 16-channel IP recorder 16Mp 256Mbps ; integrated PoE hub..
• Industrial-grade processor.
• AI functions via recorder: face detection; face recognition; perimeter protection; SMD Plus.
• AI functions via camera: face detection; face recognition; perimeter protection; SMD Plus; stereo analysis; people counting; heat map.
• Number of AI channels: 1 channel face detection and recognition (8 channels per camera; up to 10 face databases and 20,000 face images, total 2.5GB ; 12 faces/sec.); 2-channel perimeter protection with 10 IVS for each channel (8 channels per camera); 4-channel SMD Plus (8 channels per camera).
• IVS functions: line crossing, perimeter intrusion, image change, missing object detection, appearing object detection (works with cameras that have IVS function).
• Convenient graphical user interface. Software Linux, GUI system.
• Integrated PoE hub - 16 PoE interfaces (for each camera 25.5W ) (standard IEEE802.3 af/at) ability to connect power to 16 cameras.
• Smart H.265+/H.265/Smart H.264+/H.264/MJPEG Video Compression Technology.
• Audio compression: PCM; G.711A ; G.711U ; G.726 .
• The following operations are performed simultaneously: recording, live image display, recording review, recording copy, device control, remote access via network.
• Remote control and live monitoring via Ethernet (WEB): IE9 or later version, Chrome, Firefox.
• Free software for device control, video review and archiving, using a computer network or the Internet.
• Free program for monitoring via mobile phone or handheld computer, tablet (DMSS mobile phone surveillance software) suitable for phones: Sybian, iPhone, Windows Mobile, Windows Phone 8, Kindle Fire, Blackberry, Android, iPad, Galaxy TAB etc.
• Resolution: 16 MP ; 12 MP ; 8 MP ; 6 MP ; 5 MP ; 4 MP ; 3 MP ; 1080p ; 960p ; 720p ; D1 ; CIF .
• Network bandwidth: AI disabled: 256 Mbps for access, 256 Mbps for storage and 256 Mbps for transmission; AI enabled: 180 Mbps for access, 180 Mbps for storage and 180 Mbps for forwarding.
• Decoding: AI disabled: 2ch. x16MP@25 fps; 2ch. x12MP@25 fps; 4ch. x8MP@25 fps; 6ch. x5MP@25 fps; 8ch. x4MP@25 fps; 16ch. x1080P@25 fps; AI enabled: 1ch. x16MP@25 fps; 2ch. x12MP@25 fps; 3ch. x8MP@25 fps; 4ch. x5MP@25 fps; 6ch. x4MP@25 fps; 12ch. x1080P@25 fps.
• Max IP camera inputs 16.
• Automatic IP camera search.
• Supported IP cameras: Dahua, Arecont Vision, AXIS, CANON, Panasonic, PELCO, Bosh, SAMSUNG, Sanyo, Sony, ONVIF22.06 .
• HDMI connector: 1vnt . Resolution: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720.
• VGA connector: 1vnt . Resolution: 1920 × 1080, 1280 × 1024, 1280 × 720.
• Screen division: main screen 1/4/8/9/16, second screen 1/4/8/9/16.
• Recording playback channels: 1/4/9/16 synchronous viewing.
• Hard disk: max. 2 pcs. SATA drives.
• Maximum capacity of one HDD : 16TB .
• HDD management: HDD group, HDD hibernation technology.
• USB connection: 2 vnt.(1x USB2.0, 1x USB3.0 ).
• Copying records: USB 2.0 / network.
• RS-485 connection 1vnt . (for connecting controlled cameras).
• RS-232 connector 1vnt . (for connecting a keyboard or connecting a computer).
• 10/100/1000 Mb/s network socket 1vnt . (Ethernet RJ-45 ) for connecting to the Internet.
• Network protocols: HTTP; HTTPS; TCP/IP; IPv4/IPv6 ; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (supports Dahua IP cameras, DVR, NVS and other); P2P ; auto register; ONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDK.
• P2P iCloud technology (IE): No static IP address required, no need to open ports.
• 3G/WiFi module support.
• Control options: LAN, remote control, front panel, computer mouse.
• Programmable recording schedule (time/date, motion detection, continuous, schedule).
• Recording interval: 1~120 min. (default: 60 min), Pre-record: 1~30 seconds, Post-record: 10~300 sec.
• Recording modes: Manual, MD (motion detection, privacy masking), Anomaly alarm (camera not connected; storage error; disk full; IP conflict; MAC conflict; cybersecurity exception), Alarm, Smart.
• Motion detection: with programmable areas and sensitivity for each channel.
• Smart alarm: face detection; perimeter protection; face recognition; SMD Plus; stereo analysis; people counting; heat map.
• Alarm transmission methods: recording; snapshot SNAPSHOT (panoramic); IPC external alarm output; sound; BUZZER; log, by preset; e-mail Email (sends photo).
• Record search: by date/time or events (e.g., motion detection, alarm).
• Smart playback search function.
• Playback functions: instant playback, general playback, event playback, tag playback, smart playback.
• OSD: Camera name, time, video loss, motion detection, recording.
• Masked camera option, camera lock option.
• Color, brightness and contrast settings for each IP camera.
• Other functions: Pre- and post-alarm recording, camera name setting.
• Unlimited number of users (possibility to grant different rights to each user).
• Time synchronization: automatic.
• Automatic summer/winter time adjustment.
• System recovery after power failure.
• Ability to update IP camera software (firmware) via NVR.
• Alarm inputs: 4.
• Alarm outputs: 2.
• Two-way talk.
• Audio input: 1 channel RCA .
• Audio output: 1 channel RCA .
• Power supply: 100~240V AC, 47~63 Hz.
• Power consumption: lt;10W (without HDD ), PoE total 130W, max. per channel. 25.5W .
• Humidity 10~93%RH .
• Operating temperature: - 10°C ~ + 55°C .
• Weight: 2.6 kg without hard drive.
• Dimensions: 1U, 375.0 mm × 329.3 mm x 53.0 mm.
