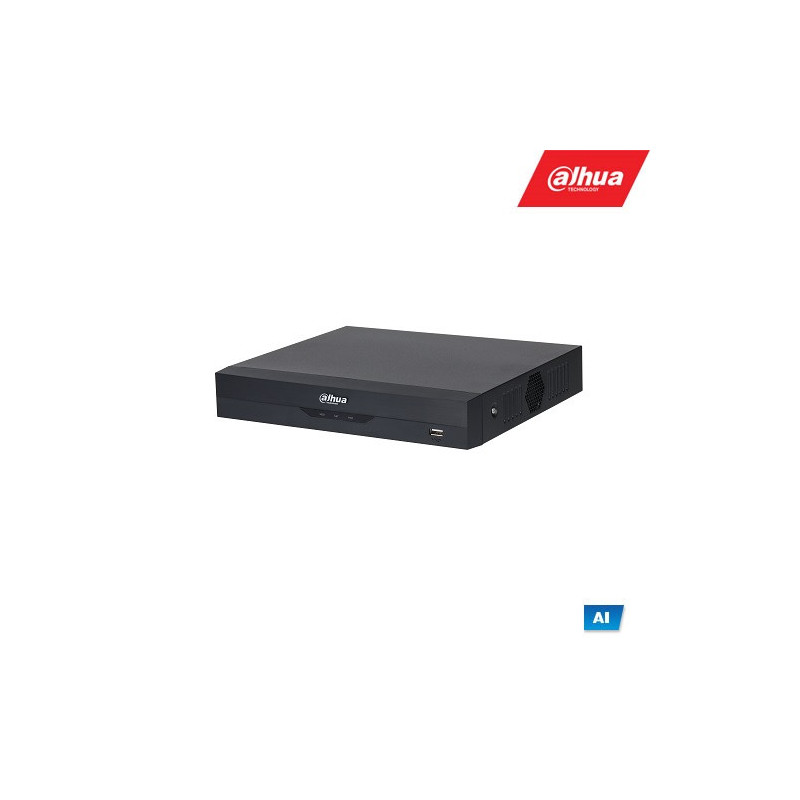

IP recorder 8kam. 1HDD, 80Mbps, 1kn. 8MP, 8kn. 2MP 1080P, H.265+, easy4ip

Short description:

• 8-channel IP camera video recorder.


• Available recording resolution: 8MP/6MP/5MP/4MP/3MP/1080P/720P.


• Maximum data rate up to 80Mbps.


• Decoded camera resolution (playback) 1 channel @ 8MP 25fps, 4 channels @ 1080P 25fps.


• Compression H.265+. Available for 1HDD.


• Compatibility protocol: ONVIF.


• Smart features: AI, IVS, SMD Plus.


• Model: NVR2108HS-I.

Brief technical characteristics• User-friendly graphical user interface UI 4.0, mouse-controlled, Linux GUI system software. • AI: Human face detection function (only 1 channel available), perimeter protection (only 2 channels available). • Ability to simultaneously recognize up to 8 faces by determining similarities, 10 facial image databases, a total of 5000 facial images are stored. • IVS functions: crossing the line, intruding into the perimeter, fixing the missing object, fixing the appeared object: a person or a car (only 2 channels available). • SMD Plus (Smart Motion Detection): Detection of movement of people and vehicles (only 4 channels available). • Remote control and live monitoring via Ethernet (WEB): IE, chrome, firefox, safari. • Free software for device management (SMART PSS), video viewing and archiving. • Free program for monitoring via mobile phone or handheld, tablet computer (DMSS mobile phone surveillance software) suitable for phones: APPLE, ANDROID. • H.264/H265/Smart H.264+/Smart H.265+ Video Compression Technology. • Resolution: 8MP/6MP/5MP/4MP/3MP/1080P/ 720P/ D1. • Decoded camera resolution (playback) 1 channel @ 8MP 25fps, 4 channels @ 1080P 25fps. • Bit Rate (data flow rate): incoming flow up to 80Mbps, outgoing flow 60Mbps, for each channel from 16Kbps ~ 20Mbps. • Image quality CBR, VBR 1 ~ 6 levels. • Motion stream function: when motion is detected, it records at maximum resolution (e.g. max. frames per second), when there is no motion, it records at normal resolution (minimum frames per second) - this saves data traffic and space. • Max IP camera inputs 8. • Supported IP cameras: Dahua, Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet, ONVIF (profile T/profile S/profile G), CGI, SDK. • HDMI connection: 3840×2160,1920×1080, 1280×1024,1280×720. • VGA output: 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600. • Hard drive: Max 1 SATA drive. • Maximum capacity of one HDD: 8TB. ​​• USB connection: 2 pcs. • Recording copying: USB 2.0 / USB HDD / USB CD/USB DVD-RW / LAN network. • 10/100 Mb/s network socket 1 pc. (Ethernet -RJ45) for connecting to the Internet. • Network protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, Alarm Server. • P2P iCloud technology (IE): Does not require a static IP address, no need to open ports. • 4G/WiFi module support. • Remote alarm notification: E-mail (sends photo), FTP server, notification to DMSS mobile application. • Motion detection: with programmable areas and sensitivity for each channel. • Motion detection: 396(22×18) detection zones, 4 possible regions with different sensitivity levels, sensitivity from 0 to 100, noise threshold from 0 to 100. • Control options: LAN, computer mouse. • Recording interval: 1 ~ 120 min. (default: 60 min.), pre-alarm recording: 1 ~ 30 seconds, post-alarm recording: 10 ~ 300 sec. • Recording modes: Manual, schedule, MD Video detection: Motion detection. • Recording search: by date, time or events, motion detection, alarm. • Programmable recording schedule (time, date, motion detection, schedule, alarm). • Video split: Full screen or split into 9 parts, or full screen when motion detection is triggered. • Screen division: 1/4/8/9. • Recording playback channels: 1/4/8 synchronous playback. • Playback functions: play, pause, rewind, fast forward, slow forward, next file forward, repeat, previous camera, archive selection, digital Zoom zoom: infinite. • Smart playback search function. • OSD: Camera name, time, motion detection, recording. • SNAPSHOT: this function takes a snapshot when an alarm occurs. • Masked camera option, camera lock option. • Unlimited number of users (possibility of granting different rights to each user). • Maximum simultaneous user login: 128. • Time synchronization: automatic time synchronization via NTP server. • Automatic summer/winter time adjustment. • System recovery after power failure. • Ability to update IP camera software (firmware) via NVR. • Power supply: DC 12V, 1.5A • Power consumption 10W (without HDD). • Humidity 10~93%RH. • Operating temperature: -10°C ~ +55°C. • Weight: 0.81 KG. without HDD. • Dimensions: Compact 1U, 260mm × 232.7mm × 47.6mm.
