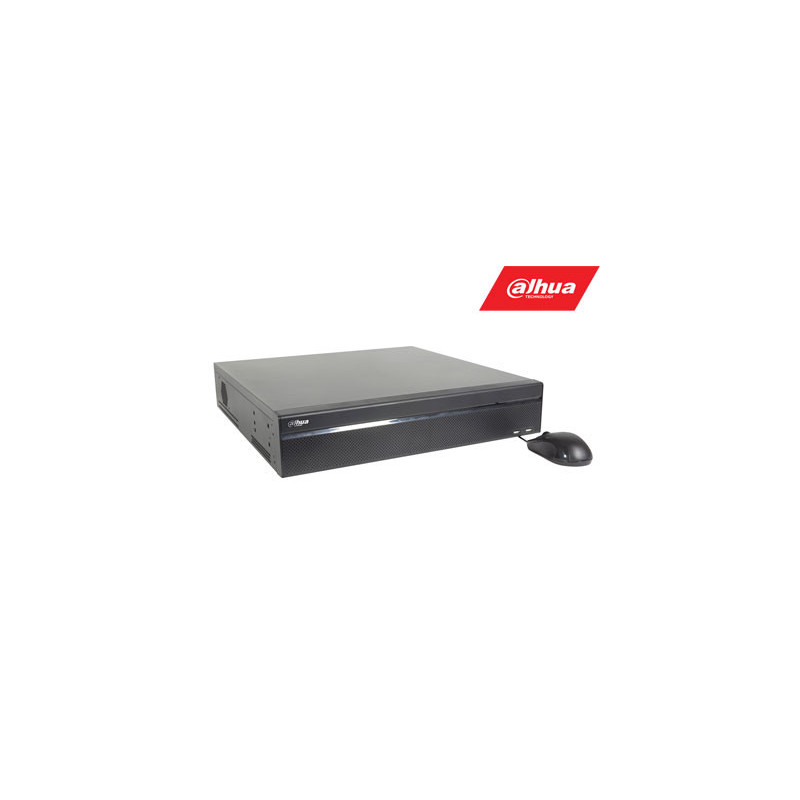

IP recorder 16 cameras 4K 12MP (3840x2160), 8HDD, IVS, 320Mbps, H.265, 16 PoE

Short description:
16-channel 4K IP video recorder, possible recording resolutions: 12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P, unlimited number of frames, maximum data rate up to 320Mbps, integrated PoE hub - 16 PoE interfaces, pentaplex, H.265/H.264/MJPEG, 8HDD, 1 LAN, 1 HDMI(up to 3840×2160), SATA lll, RS-485 connector, IVS functions, (for connecting managed cameras), Fisheye Dewarp function, ONVIF2.4, model; DH-NVR5816-16P-4KS2.
Brief technical characteristics:
• Digital 16-channel 4K IP recorder 12Mp 320Mbps, Integrated PoE hub.
• Fisheye Dewarp function.
• POS, ANR, systems.
• IVS functions: line crossing, perimeter intrusion, image change, missing object detection, appearing object detection (works with cameras that have IVS function).
• Convenient graphical user interface, controlled by mouse, remote control or buttons on the device Software Linux GUI system.
• Integrated PoE hub - 16 PoE interfaces (25W for each camera) (IEEE802.3af/at standard) ability to connect 16 cameras power supply.
• High-quality ARM Cortex A17 Quad Core processor.
• H.265/H.264/MJPEG/MPEG4 Video Compression Technology.
• Pentaplex- the following operations are performed simultaneously: recording, live image display, recording review, recording copy, device management, remote access via network.
• Remote control and live monitoring via Ethernet (WEB): IE, chrome, firefox, safari;
• Free software for device management (DSS/PSS/SMART PSS), for video viewing and archiving, using a computer network or the Internet.
• Free program that allows the user to monitor and view recordings from up to 144 cameras from different objects;
• Free program for monitoring via mobile phone or handheld, tablet computer (DMSS mobile phone surveillance software) suitable for phones: SYMBIAN, IPHONE, WINDOWS MOBILE, WINDOWS PHONE 8, KINDLE FIRE, BLACKBERY, ANDROID, IPAD, GALAXY TAB, etc.
• Resolution: 12M(4000×3000), 8M(3840×2160), 6M(3032x2008),5M(2560×1920), 3M(2048×1536), 1080P(1920×1080), 720P(1280×720), D1(704×576), CIF(352×288).
• The number of frames is not limited, all 8 channels. 12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P at 25fps.
• Bit Rate (data flow rate): incoming flow 320Mbps, for each channel from 16kbps~20Mbps.
• Image quality CBR, VBR 1 ~ 6 levels.
• Motion stream function - that is: when motion is detected, it records at maximum resolution (e.g. max. frames per second), when there is no motion, it records at normal resolution (minimum frames per second) - this saves data flow and space.
• Max IP camera inputs 16.
• Automatic IP camera search.
• Supported IP cameras: Dahua, Arecont Vision, AXIS, Canon, Dynacolor, Panasonic, Brickom, Vivotek, Honeywell, Sunell, CP PLUS, CNB, Tyco, Pelco, Surveon, Shany, PELCO, BOSH, SAMSUNG, SANYO, SONY, ONVIF2.4.
• HDMI connector: 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768.
• 1 HDMI input screen split: 1/4/8/9/16.
• 2 HDMI input screen split: 1/4/8/9/16.
• VGA connector: 1920×1080, 1280×1024, 1280×720, 1024×768.
• Microphone input: 1 channel, microphone output 1 channel (for two-way talk).
• Screen split: 1/4/8/9/16.
• Recording playback channels: 1/4/9/16.
• Hard disk: Max 8 SATA disks.
• Maximum capacity of one HDD: 10TB max 80TB.
• E-SATA connector (possibility of connecting external hard disk storage up to 16TB).
• HDD management: HDD group, HDD hibernation technology, Raid 0/1/5/6/10/50/60.
• USB connector: 4 pcs. (1 USB2.0, 1 USB3.0).
• Recording copying: USB 2.0 / USB HDD / USB CD / LAN / built-SATA / network.
• RS-485 connector (for connecting controlled cameras).
• RS-232 connector (for connecting a keyboard or for connecting a computer).
• 10/100/1000 Mb/s network socket 1 pc. (Ethernet -RJ45) for connecting to the Internet.
• Network protocols: HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP camera search (supports Dahua IP cameras, DVR, NVS and more...).
• P2P iCloud technology (IE): No static IP address required, no need to open ports.
• 3G/WiFi module support.
• Remote alarm notification: E-mail (sends photo), FTP server.
• P/T/Z control Compatible with most dome cameras and P/T/Z devices (PELCOD, PELCOP,SAMSUNG,PHILIPS, SONY,VIDEOND,EPTZ etc.).
• Motion detection: with programmable areas and sensitivity for each channel.
• Motion detection: 396(22×18) detection zones, 4 possible regions with different sensitivity levels, sensitivity from 0 to 100, noise threshold from 0 to 100.
• Control options: LAN, remote control, front control panel of the device, computer mouse.
• Recording interval: 1 ~ 120 min. (default: 60 min.), Pre-record: 1 ~ 30 seconds, Post-record: 10 ~ 300 sec.
• Recording modes: Manual, Scheduled (Regular (Continuous), MD (Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop.
• Recording search: by date/time or events (motion detection, alarm).
• Programmable recording schedule (time/date, motion detection, continuous, schedule).
• Trigger notification: Recording, PTZ movement, tour, alarm, E-mail, FTP, Video Push, "Buzzer" and message.
• Playback functions: play, pause, stop, rewind, fast forward, slow forward, next file forward, repeat, previous camera, archive selection, Digital Zoom zoom: infinite.
• Smart playback search function.
• OSD: Camera name, time, video loss, motion detection, recording.
• SNAPHOT: This function takes a snapshot when an alarm occurs.
• Masked camera option, camera lock option.
• Setting of color, brightness and contrast for each IP camera.
• Other functions: Pre- and post-alarm recording, camera name setting.
• Unlimited number of users (possibility to grant different rights to each user)
• Maximum simultaneous user login: 128.
• Time synchronization: automatic.
• Automatic summer/winter time adjustment.
• System recovery after power failure.
• Ability to update IP camera software (firmware) via NVR.
• Alarm inputs: 16.
• Alarm inputs: 6.
• Power supply: AC 100~240V, 50/60 Hz.
• Power consumption 17.5W.
• Humidity 10~90%RH.
• Operating temperature: -10°C ~ +55°C.
• Weight: 7KG. without hard drive.
• Dimensions: 2U, 440mm×450.1mm×95mm.
