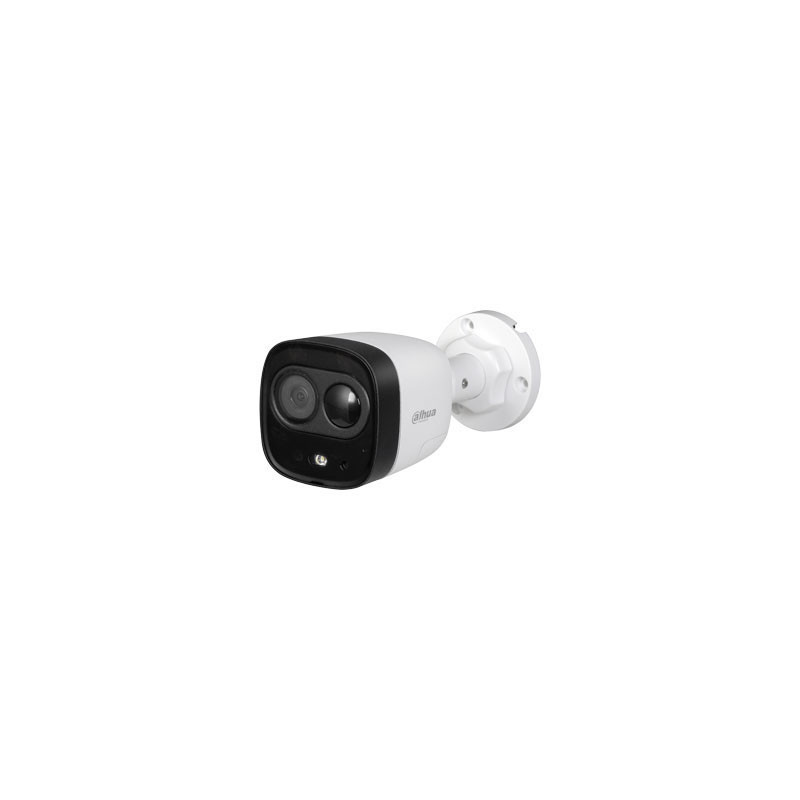

HD-CVI, TVI, AHD, CVBS camera cylindrical 2MP LED up to 20m. 1 / 2.7' 2.8mm 111°, PIR 10m., int. mic.

HD-CVI, TVI, AHD, CVBS camera cylindrical 2MP LED up to 20m. 1/2.7" 2.8mm 111°, PIR 10m., int. mic.

HD-CVI, TVI, AHD, CVBS FULL HD cylindrical camera with integrated microphone, LED illumination up to 20m. (Smart IR) Day/Night, 1/2.7" inch 2MP CMOS sensor 1080P 1920×1080 25fps, 2.8mm fixed lens (lens viewing angle 111°), Integrated PIR motion sensor, integrated siren, OSD menu, HD-CVI technology allows FULL HD image transmission via coaxial cable without losing quality - max. distance up to 800m., LITE series, model: DH-HAC-ME1200DP-LED (4nd Generation)
Short technical characteristics:
• HD-CVI technology allows FULL HD image transmission via coaxial cable without losing quality - max. distance up to 800m.;
• FULL HD 2 megapixel HD-CVI, TVI, AHD Day/Night camera (HDCI - High Definition Composite Video Interface);
• TVI, AHD, CVBS switching via UTC controller DH-PFM820;
• Integrated microphone (microphone transmission via the same coaxial cable);
• 1/2.7" 2 MP CMOS sensor;
• CANNON DSP processor;
• 2.8mm. fixed lens (lens viewing angle 111°);
• Image resolution: 1080P(1920×1080);
• Number of effective pixels 1920(H)×1080(V);
• Compression rate:25/30fps@1080P, 25/30/50/60fps@720P;
• LED illumination up to 20m.;
• D/N: switches from color to black and white at a certain light intensity, IRC CUT filter;
• Min. illumination: day: 0.02Lux/F1.85, 30IRE, 0Lux;
• Electronic shutter: Auto/Manual, 1/25~1/100000s;
• White balance: Auto/Manual AWB, AGC, BLC, HLC, DWDR;
• Synchronization: internal;
• S/N ratio > 65dB;
• Integrated PIR motion sensor;
• PIR motion detection angle110°;
• PIR motion detection distance 10m.;
• Integrated siren;
• 2D-DNR: noise reduction technology;
• OSD menu;
• Video output: 1 BNC HDCVI (high definition video output);
• Video format PAL;
• Waterproof IP67;
• 3-axis mechanism for camera adjustment (Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360°);
• Aluminum housing;
• Operating temperature: -40°C~+60°C, 10%~90%;
• Power supply: DC12V±30%;
• Power: 4.9W;
• Dimensions: 168.8mm×79mm×79mm;
• Weight: 0.24kg.;
Compatible mounts
• PFA134;
• PFA130-E;
• PFA12A;
• PFA152-E.
