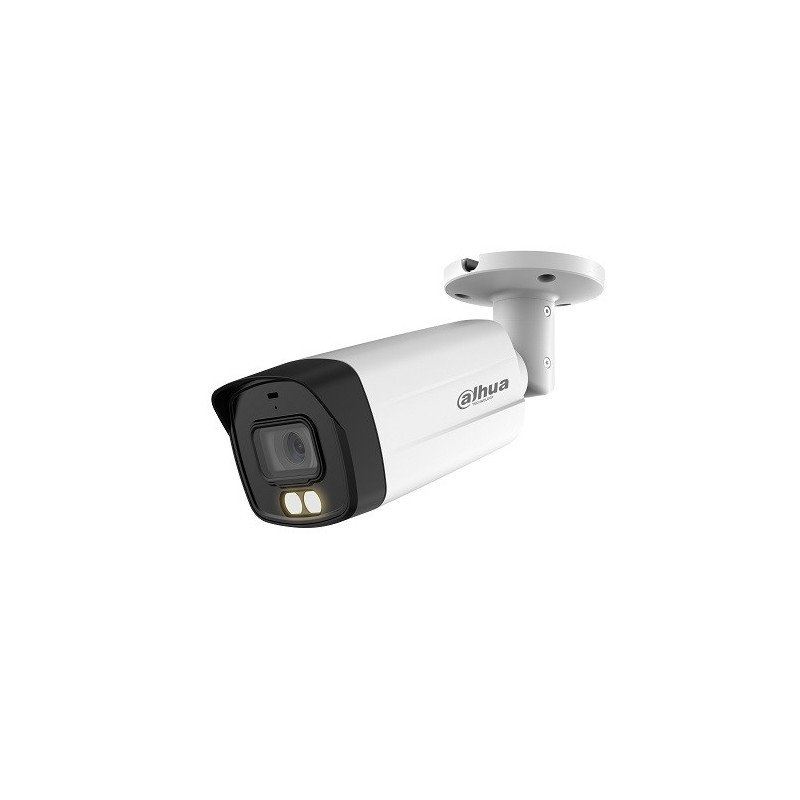

HD-CVI for STARLIGHT cylindrical 2MP, 3.6mm obj. F1.6, LED+IR, WDR, with microphone

HD-CVI camera STARLIGHT cylindrical 2MP, 3.6mm obj. F1.6, LED+IR, WDR, with microphone
HD-CVI, TVI, AHD, CVBS 2MP camera cylindrical, with integrated microphone, dual illumination, LED/IR illumination up to 40m (Smart IR), 2MP CMOS sensor, 2MP (1920×1080), max. 25kps, 3.6mm/F1.6 fixed lens (lens viewing angle 86°), with microphone; CVI/ CVBS/ AHD/ TVI signals are switched, HD-CVI technology allows HD image transmission via coaxial cable without loss of quality up to 700m, 3-axis adjustment, 3D-NR, HLC, BLC, 130dB WDR, IP67, LITE series, model: DH-HFW1239TM-IL-A, 3.6mm.
Short technical characteristics:
• HD-CVI technology allows FULL HD image transmission via coaxial cable without loss of quality - max. distance up to 700m, via UTP cable 300m.
• Integrated microphone (microphone transmission via the same coaxial cable).
• TVI, AHD, CVBS, CVI switching on the camera cable.
• 2MP FULL-COLOR CMOS sensor.
• 3.6mm/F1.6 fixed lens (lens viewing angle 86°).
• Image resolution: 1080P(1920×1080); 960H (960×576/960×480).
• Number of effective pixels 1920(H)×1080(V).
• Compression rate: 1080P(1920×1080) @25fps.
• 2vnt. IR LEDs / 2vnt. LED - warm light.
• LED/IR illumination up to 40m. Smart IR+LED, LED mode, IR mode.
• Min. illumination: 0.001Lux/F1.6 color 30IRE; 0.0001Lux/F1.6 B/W 30IRE; 0Lux IR/LED on.
• Privacy zones: 8 (on/off).
• D/N: switches from color operation to black and white at a certain light intensity, IRC CUT filter. Auto ICR/ color/ B/W.
• Electronic shutter: Auto/Manual, 1/25s~1/100,000s.
• White balance: Auto/Manual BLC, HLC, 130dB WDR.
• Signal-to-noise ratio (S/N ratio): gt; 65 dB.
• Scanning system: progressive.
• Fixed aperture (fixed iris).
• 3D-DNR: noise reduction technology.
• Video output: 1 BNC HDCVI (high definition video output), switchable CVI/CVBS/AHD/TVI.
• Video format PAL.
• Moisture resistant IP67.
• 3-axis mechanism for camera adjustment (Pan: 0°~360°, Tilt: 0°~90°, Rotation: 0°~360°).
• Certificates: CE (EN55032: 2015, EN61000-3-2: 2014, EN61000-3-3: 2013, EN55024: 2010+A1: 2015, EN55035: 2017, EN50130-4: 2011+A1: 2014, EN62368-1: 2014+A11: 2017), FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014), UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14).
• Operating temperature: -40°C~+60°C, lt;95%RH.
• Power supply: 12V DC ±30%.
• Consumption: maks.<4.0W.
• Dimensions: 240.7mm×90.7mm×90.4mm.
• Weight: 0.65 kg.
Compatible mounts:
• PFA130-E.
• PFA135.
• PFA152-E.
