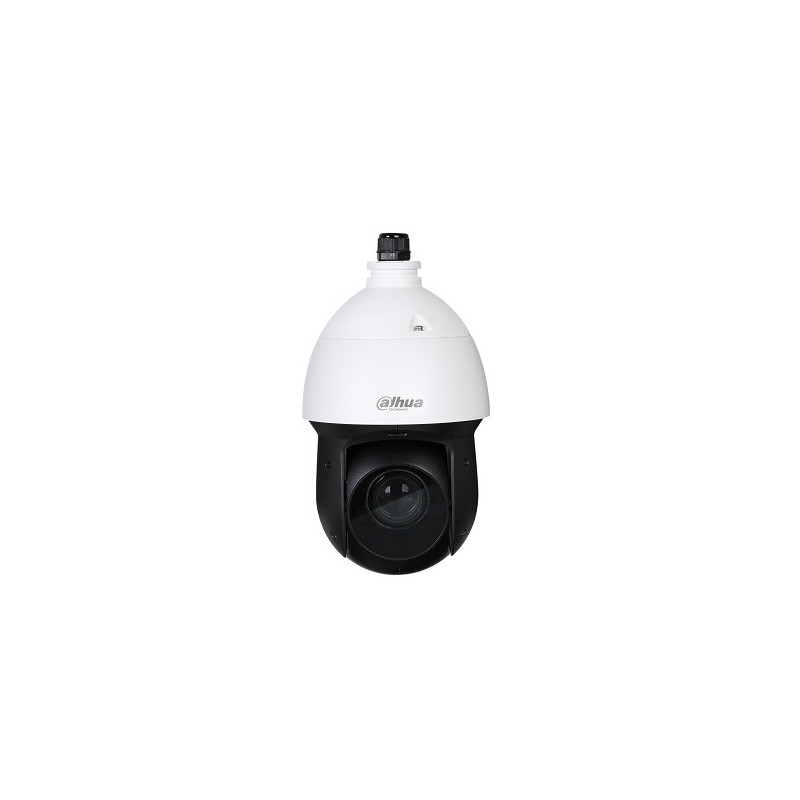

HD-CVI controlled camera with IR SD49225-HC-LA

HD-CVI controlled camera with IR SD49225-HC-LA
HD-CVI FULL HD controlled camera STARLIGHT, 2MP 1080P(1920×1080), Day/Night with night IR illumination, 6pcs. 3rd generation high-power IR diodes, illumination about 100m., 1/2.8" CMOS STARVIS sensor, 2M(1~25fps), Zoom: x25 Optical x16 digital, BLC / HLC / 3D NR /WDR 120dB, moisture resistant IP66 (designed for outdoor conditions), HD-CVI technology allows HD image transmission via coaxial cable without loss of quality - max. distance up to 500m. Model: SD49225-HC-LA.
Short technical characteristics:
• HD-CVI technology allows FULL HD image transmission via coaxial cable without loss of quality - max. distance up to 500m.
• 2.0 megapixel high-speed controllable (PTZ) IP Day/Night with IR illumination camera, zoom 25x optical.
• 1/2.8" inch CMOS Starvis sensor.
• Effective pixels 1920(H) x 1080(V.)
• 6pcs. IR diodes, illumination about 100m.
• Zoom: x25 Optical, x16 Digital.
• Scanning system: progressive.
• ROM 16MB, RAM 256MB.
• Compression speed: 1080P@25fps, 720P@25/30/50fps.
• Available image resolution options: 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480).
• Angular viewing angle: 58.5° (Wide) ~ 2.8° (Tele).
• Focal length: 4.8mm~(Wide) 120mm (Tele), F1.6 ~ F3.5.
• Pan/Tilt: Pan: 0° ~ 360° infinite. Tilt: -15° ~ +90°, auto flip 180°.
• Manual control speed: Pan: 0.1° ~200° /s. Tilt: 0.1° ~120° /s.
• Preset speed: Pan: 240° /s. Tilt: 200° /s.
• Iris auto/manual control.
• Focus: Auto/Manual/Semi-auto.
• D/W: switches from color to black and white at a certain light intensity.
• Min. illumination: Day: 0.005Lux@F1.6; B/W 0.0005Lux@F1.6; Night: 0Lux@F1.6.
• Electronic Shutter: Auto/Manual, 1/3s ~ 1/100,000s.
• White Balance: Auto/Manual/ Indoor/Outdoor/Tracking/Sodium Lamp/Natural Light/Street Lamp.
• BLC/HLC/WDR 120dB.
• Day Night function supported.
• 2D/3D DNR: noise reduction technology.
• Preset: 300 - SD Pelco-P/D (Label, Camera settings).
• Pattern: 5, tours 8 (up to 32 presets/tour), scan 5.
• 3D intelligent positioning system.
• Privacy zones: 24.
• Other functions: Auto "rollover", Auto Parking, Action memory after power recovery.
• PTZ and Lens status reset after reboot.
• Moisture resistant IP66.
• Control interface RS-485, DH-SD, Pelco-P/D.
• Alarm inputs: 2 channels.
• Alarm inputs: 1 channels.
• Operating temperature: -40°C ~ +70°C .
• Humidity: 0%~95%.
• Power supply: DC 12V / 3A.
• Power consumption: 9.6W (23.2W with PTZ).
• TVS 6000V lightning protection; surge protection.
• Dimensions: 160 mm x 295.4 mm.
• Comes with wall mount PFB305W.
• Weight: 3.0kg.
• Compatible mounts:
• PFA111.
• PFA150.
• PFA120.
• PFA151.
• PFB300C.
• PFB303S.
