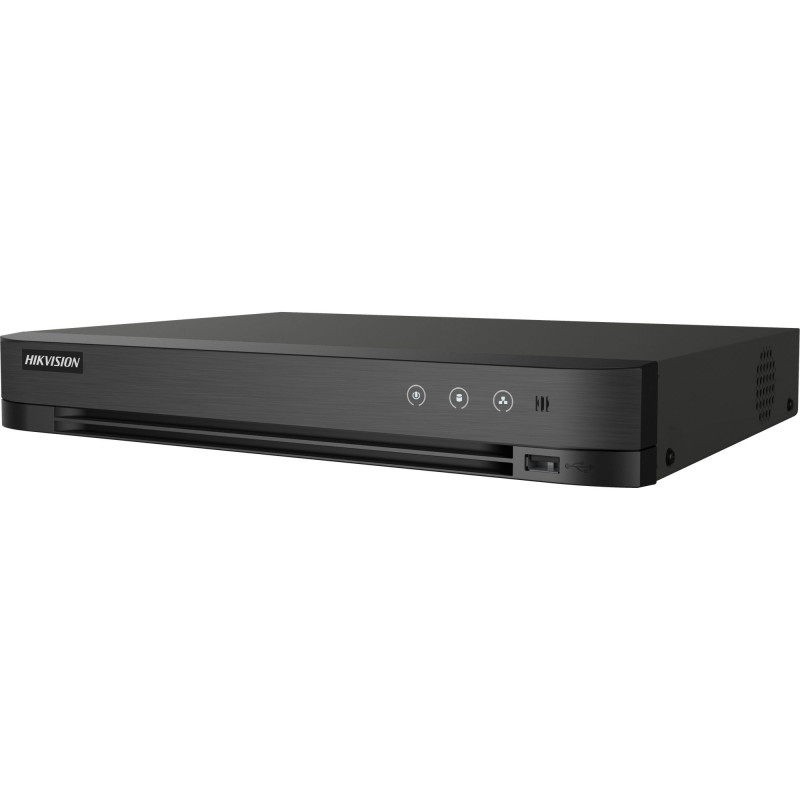

8-channel DVR Hikvision iDS-7208HUHI-M1 / S(C) / 4A+8 / 4ALM
Product reference: 26-6931847153540
  • 8 analog BNC connectors
  • Up to 16 IP cameras
  • HDTVI input up to 8MP
  • Audio via coaxial cable
  • Facial recognition
  • Reducing false alarms by classifying people and vehicles
  • 4 audio inputs, 8 alarm inputs, 4 alarm outputs
  • 5 signals are input adaptively (HDTVI / AHD / CVI / CVBS / IP)
  • Video compression H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
8-channel DVR Hikvision iDS-7208HUHI-M1 / S(C) / 4A+8 / 4ALM

8-channel DVR Hikvision iDS-7208HUHI-M1 / S(C) / 4A+8 / 4ALM

Product reference: 26-6931847153540
  • 8 analog BNC connectors
  • Up to 16 IP cameras
  • HDTVI input up to 8MP
  • Audio via coaxial cable
  • Facial recognition
  • Reducing false alarms by classifying people and vehicles
  • 4 audio inputs, 8 alarm inputs, 4 alarm outputs
  • 5 signals are input adaptively (HDTVI / AHD / CVI / CVBS / IP)
  • Video compression H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
352,13 €
Last product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Recording
  • Image compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding resolution

    Main stream:

    8 MP@8 fps/5 MP@12 fps/

    4 MP@15 fps/3 MP@18 fps

    1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

    Sub-stream:

    WD1/4CIF/CIF@25 fps (P)/30 fps (N)
  • Video bit rate 32 Kbps to 10 Mbps
  • Dual Broadcasting Support
  • Flow type Video, Video Audio
  • Audio compression G.711u
  • Audio bit rate 64 Kbps
  • Image and sound
  • IP video input

    4-ch (up to 12-ch)

    Up to 8 MP resolution

    Enhanced IP mode on:

    8-ch (up to 16-ch), each up to 4 Mbps

    ;Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog video input 8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDMI output

    HDMI:

    1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz,

    1920 × 1080/60Hz,

    1280 × 1024/60Hz,

    1280 × 720/60Hz,

    1024 × 768/60Hz

    VGA:

    1-ch, 1920 × 1080/60Hz,

    1280 × 1024/60Hz,

    1280 × 720/60Hz,

    1024 × 768/60Hz

    HDMI/VGA simultaneous output
  • CVBS input PAL/NTSC
  • CVBS output

    1-ch, BNC (1.0 Vp-p, 75 Ω),

    resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Synchronous playback 8-ch
  • HDTVI input 8 MP, 5 MP, 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
  • AHD input 5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • HDCVI input 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • Audio output 1-ch, RCA (Linear, 1 KΩ)
  • Audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Network
  • Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote login 64
  • Network interface

    1,RJ45 10M/100M/1000M self-adaptive

    Web interface
  • Auxiliary interface
  • SATA 1 SATA connector
  • Capacity Up to 10 TB capacity for each disk
  • Serial connection RS-485 (half-duplex)
  • USB connection

    1 × USB 2.0；

    1 × USB 3.0
  • Alarm 4 audio inputs, 8 alarm inputs, 4 alarm outputs
  • Home
  • Power supply 12VDC
  • Energy consumption ≤ 10W
  • Operating conditions (temperature) -10 °C to +55 °C (+14 °F to +131 °F)
  • Operating conditions (humidity) 10% to 90%
  • Size 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
  • ≤ 2 kg (4.4 lb)

ManufacturerHikvision
Manufacturer codeDVRIDS7208HUHIM1SC
Weight1.48 kg
