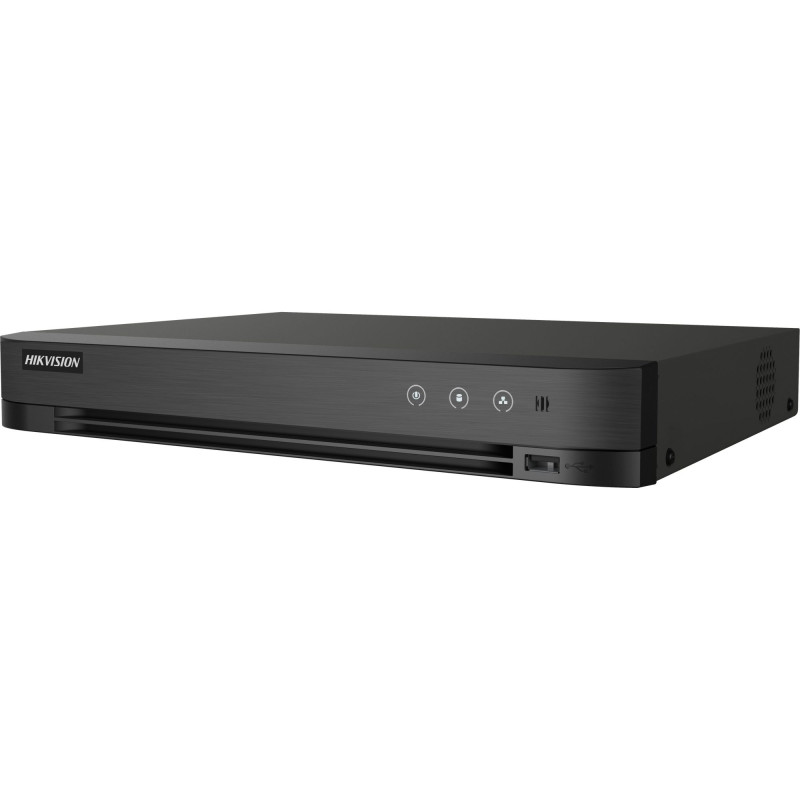

4-channel DVR Hikvision iDS-7204HUHI-M1 / XT
Product reference: 26-DVRIDS7204HUHIM1XT
  • Type: Hybrid Video Recorder (DVR)
  • Brand: Hikvision
  • Model: iDS-7204HUHI-M1/XT
  • Channels: 4 analog + up to 8 IP cameras (up to 6 MP)
  • Video formats: TVI, HDCVI, AHD, CVBS, IP
  • Video compression: H.265 Pro+
  • Artificial Intelligence: Facial Recognition or AcuSense Analysis
  • Disk capacity: 1 HDD up to 10 TB
  • Audio channels: 1
  • Video outputs: HDMI, VGA, CVBS
  • Intelligent video analysis functions

4-channel DVR Hikvision iDS-7204HUHI-M1 / XT

Product reference: 26-DVRIDS7204HUHIM1XT
  • Type: Hybrid Video Recorder (DVR)
  • Brand: Hikvision
  • Model: iDS-7204HUHI-M1/XT
  • Channels: 4 analog + up to 8 IP cameras (up to 6 MP)
  • Video formats: TVI, HDCVI, AHD, CVBS, IP
  • Video compression: H.265 Pro+
  • Artificial Intelligence: Facial Recognition or AcuSense Analysis
  • Disk capacity: 1 HDD up to 10 TB
  • Audio channels: 1
  • Video outputs: HDMI, VGA, CVBS
  • Intelligent video analysis functions
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
289,25
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Interfaces
  • Warning signal input/output N/A (optional to support);4/1
  • Capacity up to 10 TB capacity for each disk
  • SATA 1 SATA interface
  • Serial interface RS-485 (half duplex)
  • USB interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
  • Facial recognition
  • Face photo comparison Face picture comparison, face picture search; 2-ch face picture comparison alarm (HD analog camera)
  • Face painting library Up to 16 face picture libraries
  • General information
  • Energy consumption ≤ 10W
  • Size 319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inches)
  • Power source 12 VDC, 1.5 A
  • Weight ≤ 1.16 kg (2.6 lb)
  • Operating humidity 10% to 90%
  • Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
  • Network
  • Network interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
  • Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
  • Remote login 32
  • Total Bandwidth 96 Mbps
  • Perimeter security
  • Human/Vehicle Analysis Up to 4-ch
  • Recording
  • Audio bit rate 64 Kbps
  • Audio compression G.711u
  • Double stream Support main stream or sub stream
  • Encoding resolution Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)*: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4. Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
  • Flow type Video, Video Audio
  • Video bit rate 32 Kbps to 10 Mbps
  • Image compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Image and sound
  • AHD Input 5MP(2560×1944)@20fps, 4MP(2560×1440)@25/30fps, 1080P@25/30fps, 720P@25/30fps
  • Analog video input 4-chBNC interface (1.0 Vp-p, 75 Ω), supporting coaxial connection
  • Audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable; 1-ch(up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable
  • Audio output 1-ch, RCA (Linear, 1 KΩ)
  • CVBS Input PAL/NTSC
  • CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • HDCVI Input 8MP(3840×2160)@12/15fps, 3K(2880×1620)@20/25fps, 5MP(2592×1944)@20fps, 4MP(2560×1440)@25/30fps, 1080P@25/30fps, 720P@25/30fps
  • HDMI output 1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output
  • HDTVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2960 × 1665)@25/20 fps,3K(3328x1504)@20fps,2K(2304x1296)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30fps,1080P@25/30fps,720P@25/30fps
  • IP video input 4-ch (up to 8-ch), each up to 8 MP
  • Synchronous playback 4-channel
  • Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • VGA output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output

Manufacturer codeDVRIDS7204HUHIM1XT
ManufacturerHikvision
Weight0 kg
