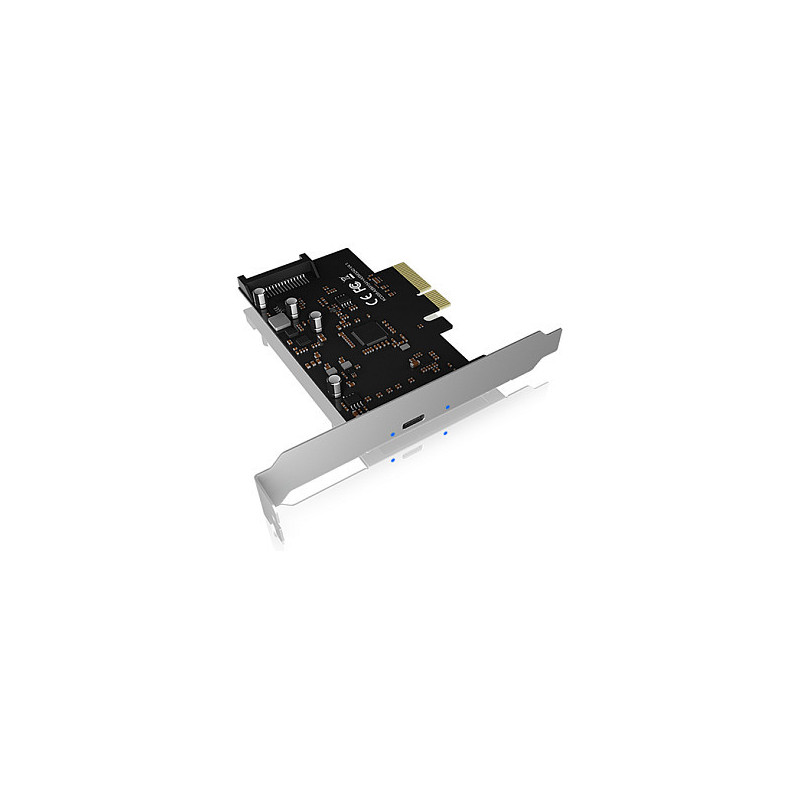

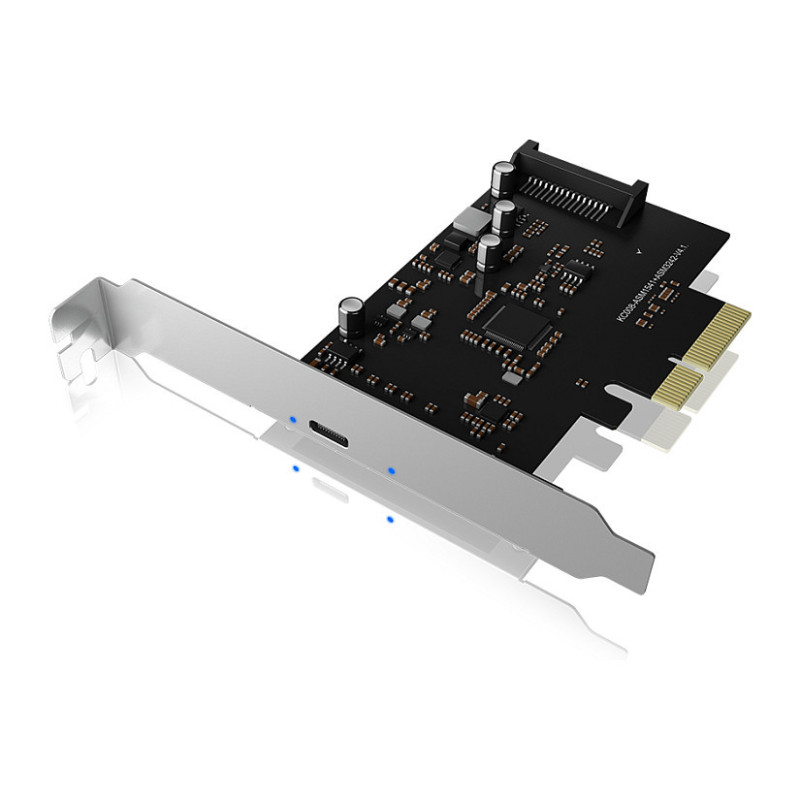

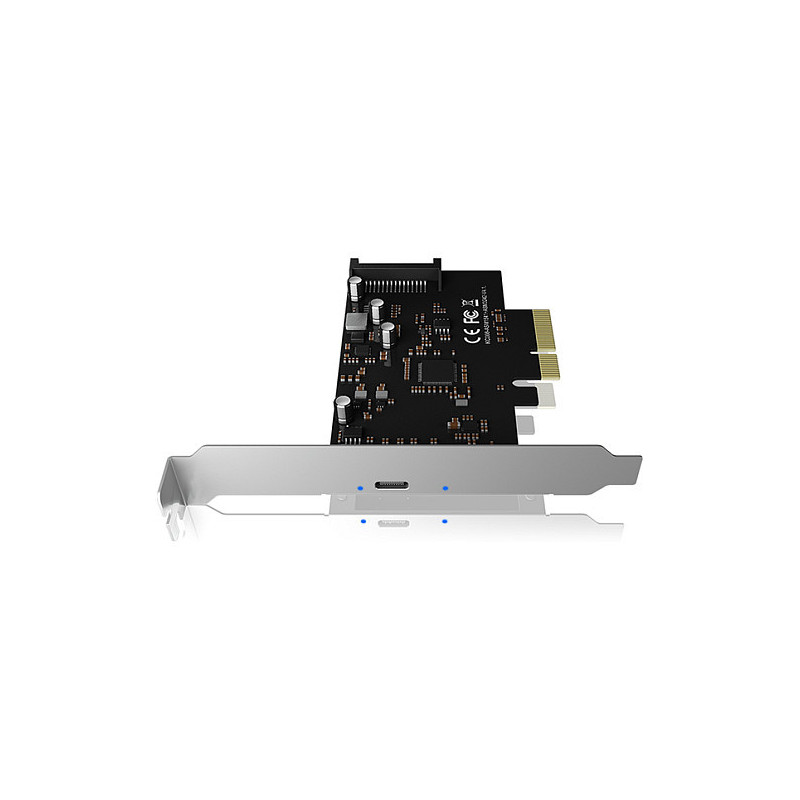

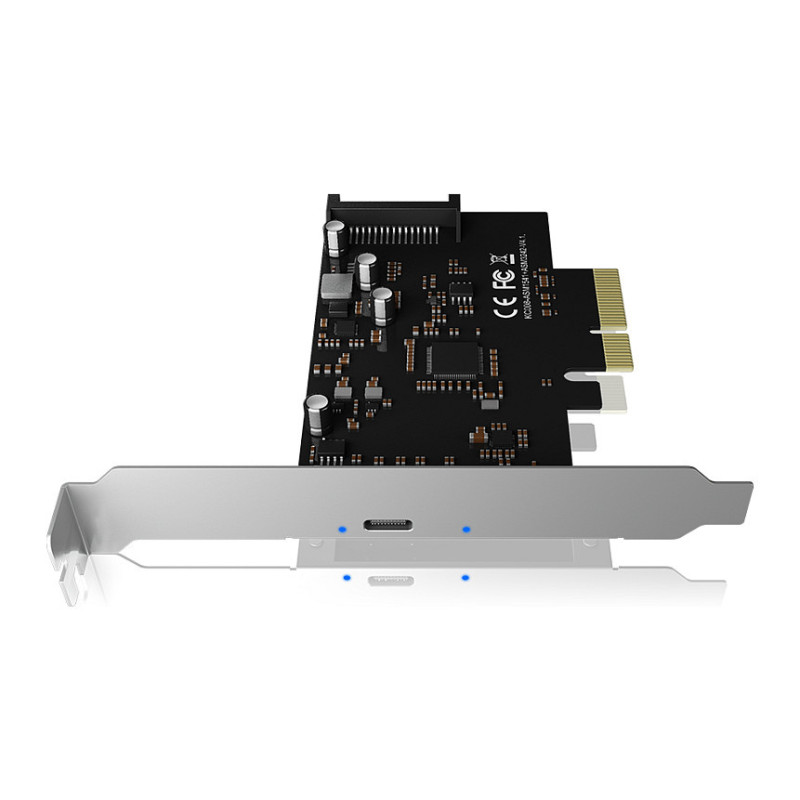

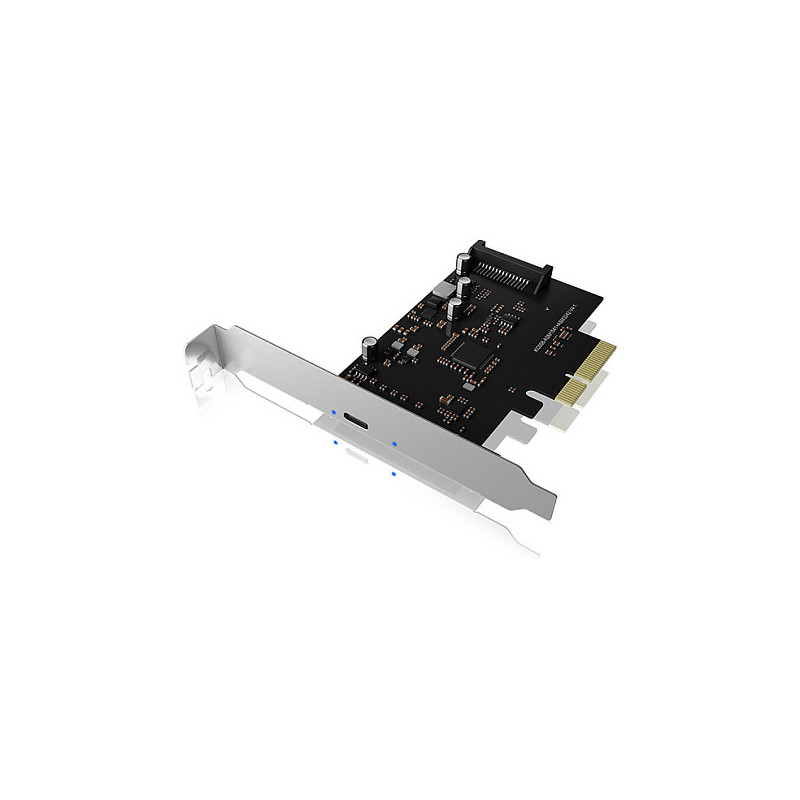

ICY BOX IB-PCI1901-C32 interface cards / adapter

ICY BOX IB-PCI1901-C32. Host interface: PCIe, Output interface: USB 3.2 Gen 2 (3.1 Gen 2), Host interface gender: Male. Product colour: Black, LED indicators: Access, Power, Country of origin: China. Data transfer rate (max): 20 Gbit/s. Width: 19 mm, Depth: 105 mm, Height: 65 mm. Package width: 25 mm, Package depth: 125 mm, Package height: 130 mm

USB 3.2 (Gen 2x2)
The new IB-PCI1901-C32 expansion card supports USB 3.2 (Gen 2x2) for both AMD and Intel platforms and offers data transfer rates of up to 20 Gbit/s, which is double that of the previous generation. With the USB Type-C® connector design and backward compatibility with USB 2.0/3.0/3.1, the new expansion card offers a cost-effective way for users to upgrade to the USB 3.2 (Gen 2x2) specification.

High Quality
Also the IB-PCI1901-C32 follows the highest ICY BOX quality standards and uses the best available components. The new PCIe expansion card has been thoroughly tested and is ready for immediate use and delivers reliable performance at a reasonable price.

Perfect Symbiosis
USB 3.2 (Gen 2x2)-capable external enclosures are far from being a standard, but ICY BOX already has them and thus belongs to the pioneer of this technology! Be surprised by the incredible data transfer rates of the ICY BOX expansion card IB-PCI1901-C32 in combination with the IB-1916M-C32-NVMe enclosure solution!

Ports & interfaces

Host interface: PCIe
Host interface gender: Male
Output interface: USB 3.2 Gen 2 (3.1 Gen 2)
Expansion card standard: PCIe 3.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
SATA power connector type: SATA 15-pin

Design

Feature: Internal
Product colour: Black
LED indicators: Access, Power
Country of origin: China

Features

Data transfer rate (max): 20 Gbit/s

System requirements

Windows operating systems supported: Yes

Weight & dimensions

Width: 19 mm
Depth: 105 mm
Height: 65 mm
Weight: 43 g

Packaging data

Quantity: 1
Feature: Screws included
Feature: Manual
Package width: 25 mm
Package depth: 125 mm
Package height: 130 mm
Package weight: 158 g

Logistics data

Harmonized System (HS) code: 84718000
Products per master (outer) case: 60 pc(s)
Master (outer) case width: 295 mm
Master (outer) case length: 306 mm
Master (outer) case height: 397 mm
Master (outer) case gross weight: 7.5 kg

Other features

Material: Metal, Plastic
